Horizontal directional drilling (HDD) offers a trenchless solution for installing underground utilities. HDD proves to be versatile and efficient across a range of projects. Choosing the proper HDD rig for your needs can heavily influence your project’s success.

What Factors Should You Consider When Choosing an HDD?

When making your decision, you must consider multiple factors, including your project requirements, the drill’s specifications, and desired features.

What Are Your Project Requirements?

Before exploring HDD options, you must fully assess your project requirements:

Soil Conditions:Different soil types demand drills with varying power and capabilities. What type of soil are you drilling through? Researching your soil conditions and consulting with experienced drillers will help you select a drill that can efficiently handle the specific challenges your project presents. For instance, loose, sandy soil may require a different drilling approach compared to dense clay or rocky terrain.

Bore Diameter and Length:What are the diameter and length of the bore you need to create? Larger diameter bores and greater distances necessitate a drill with ample thrust and pullback force. Accurately determining these parameters early on will help you narrow your selection to HDD rigs capable of meeting your project’s demands.

Job Site Constraints: What are the access and space limitations at your job site?Maneuverability and size restrictions heavily influence your HDD choice. You’ll need to select a drill that can operate within the available space and access points. This might involve considering factors like the width of access roads, overhead clearances, and the presence of existing structures or obstacles.

What Drill Specifications Should You Consider?

Understanding key drill specifications is crucial for selecting the right HDD rig for your project:

Thrust and Pullback Force:These critical factors determine the drill’s power to push and pull the drill string through the ground. Do you need a rig with high thrust and pullback force? Consider the soil conditions and the required bore length to choose a drill that can overcome the resistance encountered during drilling.

Torque:Torque refers to the drill’s rotational force used to turn the drill string. What level of torque do you require for your project? Higher torque is necessary for larger diameter bores or when drilling through harder rock formations.

Mud Pump:The mud pump circulates drilling fluid, which lubricates the drill bit, removes cuttings, and stabilizes the borehole. What mud pump capacity is necessary for your soil conditions and bore diameter? The mud pump’s capacity should be appropriate for the drilling operation to maintain borehole stability and prevent issues like clogging or collapse.

Drill Rods: The drill rods’ size and type affect the depth and accuracy of the bore. Which drill rods are compatible with your soil conditions and the depth of your bore?Select rods that match the project requirements and ensure they are compatible with the chosen HDD rig.

What Features and Options Will Improve Your Operations?

Beyond the basic specifications, certain features and options can enhance the performance and efficiency of your HDD operations:

Operator Comfort: A comfortable cab with ergonomic controls reduces operator fatigue and increases productivity. Consider features like climate control, adjustable seating, and intuitive control layouts.

Technology:Look for drills with features like electronic displays, data logging, and remote control capabilities to improve efficiency and safety. Electronic displays can provide real-time data on drilling parameters, while data logging allows you to track performance and identify potential issues. Remote control options can enhance safety in challenging environments and enable operators to control the drill from a safe distance.

What are Some Popular Horizontal Directional Drill Models?

You can find a diverse selection of quality machinery from leading brands at Machplaza, a leading exporter of Chinese construction machinery. Machplaza offers a comprehensive range of services, including competitive prices, timely delivery, and customized solutions to meet your unique needs. Consider these models:

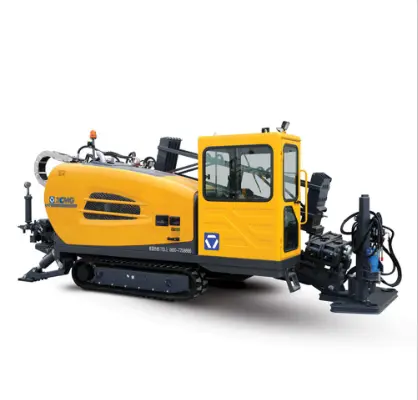

XCMG XZ280E Horizontal Directional Drilling Rig: This rig features a 132 kW engine, a maximum thrust force of 280 kN, and a maximum pullback force of 320 kN. The XZ280E is suitable for projects involving pipelines, cables, and water mains. You can explore the XZ280E and its detailed specifications at Machplaza Wholesale.

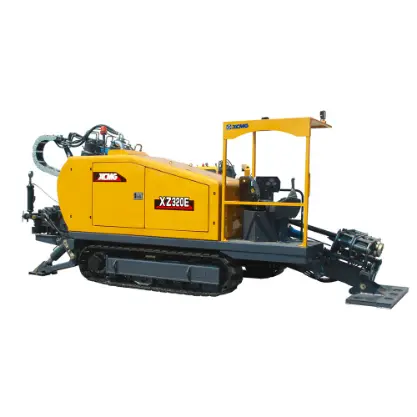

XCMG XZ320E Horizontal Directional Drilling Rig: With a 162 kW engine, a maximum thrust force of 320 kN, and a maximum pullback force of 360 kN, the XZ320E is designed for challenging projects. It offers extended drilling depths and can navigate challenging ground conditions. Learn more about the XZ320E on Machplaza.

How Do You Maintain an HDD?

To ensure the longevity and reliability of your HDD rig, adhere to these maintenance recommendations:

How Should You Handle Regular Inspections?

Regular inspections are essential to detect potential issues early on and prevent costly downtime:

Daily Inspections: Before each use, visually inspect the drill, checking for any signs of damage, leaks, or wear. Pay attention to hydraulic hoses, connections, and the overall condition of the drill.

Periodic Inspections: Implement a regular maintenance schedule to inspect and service critical components like the engine, hydraulic system, mud pump, and drill rods. This might involve checking fluid levels, inspecting filters, and looking for signs of wear or damage that might require attention.

How Should You Maintain Fluids and Lubrication?

Proper fluid and lubrication management is crucial for the smooth operation and longevity of your HDD rig:

Engine Oil: Change the engine oil and filters based on the manufacturer’s recommendations. Using the recommended oil type and viscosity is essential for optimal engine performance and protection.

Hydraulic Fluid: Maintain proper hydraulic fluid levels and replace the fluid at regular intervals. Regularly check for leaks and address them promptly to prevent damage to the hydraulic system.

Grease: Lubricate all grease points regularly to prevent wear and tear on moving parts. Use a high-quality grease compatible with the HDD’s specifications.

How Should You Clean Your HDD?

Keeping your HDD clean is vital for preventing corrosion, clogs, and other issues that can impact performance:

Mud System: After each use, thoroughly clean the mud pump, tanks, and hoses to prevent clogs and corrosion. Remove any debris or buildup from the mud system to ensure efficient operation and prevent premature wear.

Drill Rods: Clean and inspect drill rods for wear or damage after each use. Properly store drill rods to prevent damage and ensure they are ready for the next drilling operation.

What Are Best Practices for HDD Storage?

Proper storage practices can protect your HDD rig from damage and extend its lifespan:

Storage Location: When not in use, store the drill in a clean, dry, and protected location. A covered storage area can shield the drill from the elements and minimize exposure to dust and debris.

Pre-Storage Checks: Ensure all fluids are at proper levels and that the drill is adequately lubricated before storage. This will help prevent corrosion and ensure the drill is ready for use when needed.

By following these maintenance practices, you can maintain your HDD rig in optimal condition, reduce downtime, and ensure its performance for years to come.
