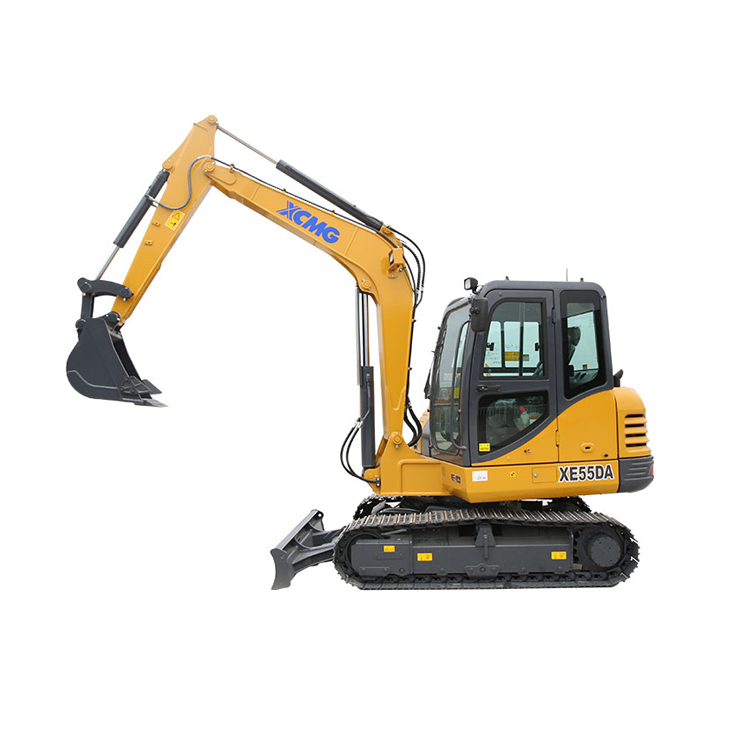

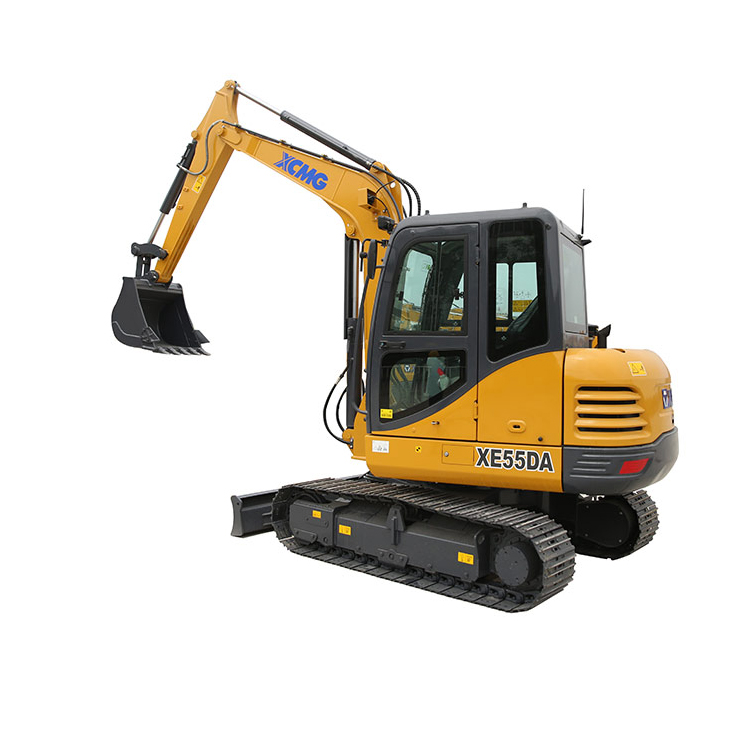

XCMG XE55DA Small Excavator

Home Product Excavator Crawler Excavator

View larger image

XCMG XE55DA Small Excavator

Operating weight：6010kg

Bucket capacity：0.23m³

Engine Model：Yanmar

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

XCMG XE55DA Small Excavator

The matching optimization of the hydraulic system and the engine reduces the fuel consumpiton by more than 6%. By increasing the displacement and pressure of the swing motor, the torque is increased by 15%, which makes the slope operation easier. The industry’s first enclosed sunshade curtain for 6-ton cab, it can avoid direct sunlight and protect drivers from all directions.

* More energy efficient and envionmental potection

Adopt new type environmental protection Kubota engine which has the features of low speed, large torque, low fuel consumption, high operating efficiency, reliability and durability.

* More reliable and durable

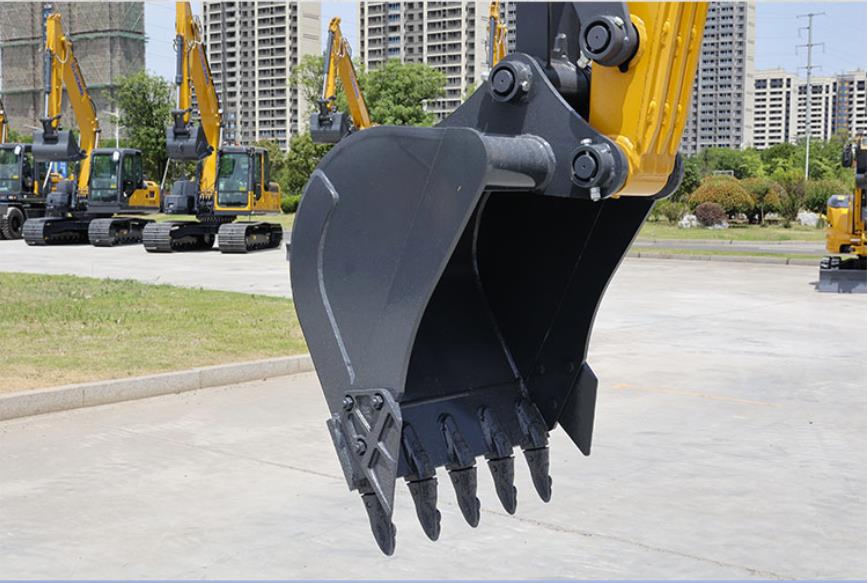

Optimize the design of boom and arm and further strengthen the key positions to make them more wear resisting and secure. Bucket teeth are installed with cross pin, which can effectively prevent the toothed sleeve from falling off and thus can improve the service life.

* More reliable and durable

Short tail design and short slewing radius can achieve flexible operation in confined space;

Multiple additional configurations to adapt a variety of operating requirements.

* More comfortable and safe

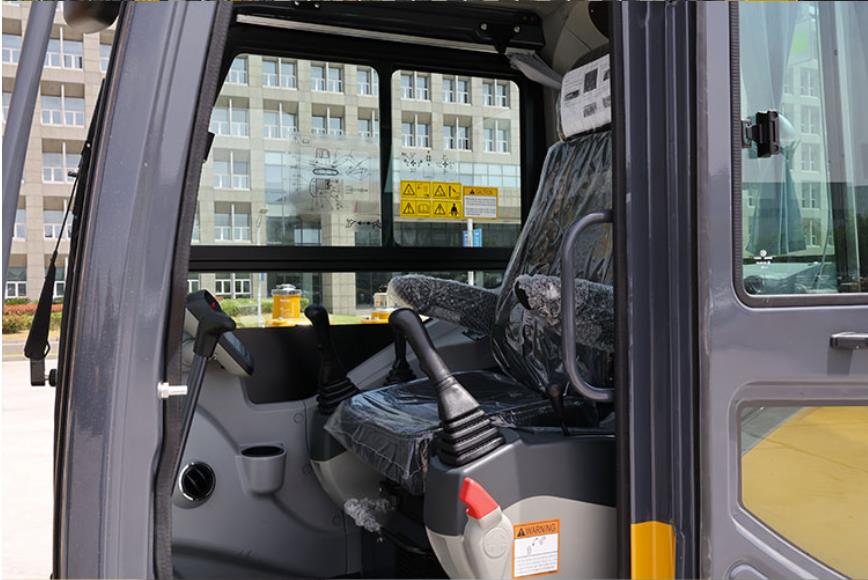

Cab has concise, smooth and elegant appearance, and the rear part of field vision is broader. New type silicon absorber is adopted to greatly reduce the operator’ s fatigue due to a long time work and thus improve the working efficiency. Sliding window is added on the right side cab, wind convection will be formed after opening the left and right sliding window, which will also facilitate the communication between the operator and people around both sides of machine.

* Excellent after-sales service

Global after-sales service system and quick response mechanism;

Real-time technical consultation and maintenance.

Parameter

Operating weight	5750Kg
Bucket capacity	0.21m³
Engine Model	Kubota
Rated power/speed	35/2200kw/rpm
Maximum torque/speed	171.5/1320N.m
Travel speed（H/L）	4.2/2.4km/h
Swing speed	10r/min
Displacement	2.615L
Bucket digging force	48.3Kn
Arm digging force	32.5kN

Brochure

XE55DA-Technical-Specification.pdf
