DEVELON(DOOSAN) DX225 AM Amphibious Excavator

Home Product Special Excavator Excavator

View larger image

DEVELON(DOOSAN) DX225 AM Amphibious Excavator

Bucket capacity：0.92m³

Engine Model：Doosan DB58TIS

Rated power/speed：110kw/1900r/min

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

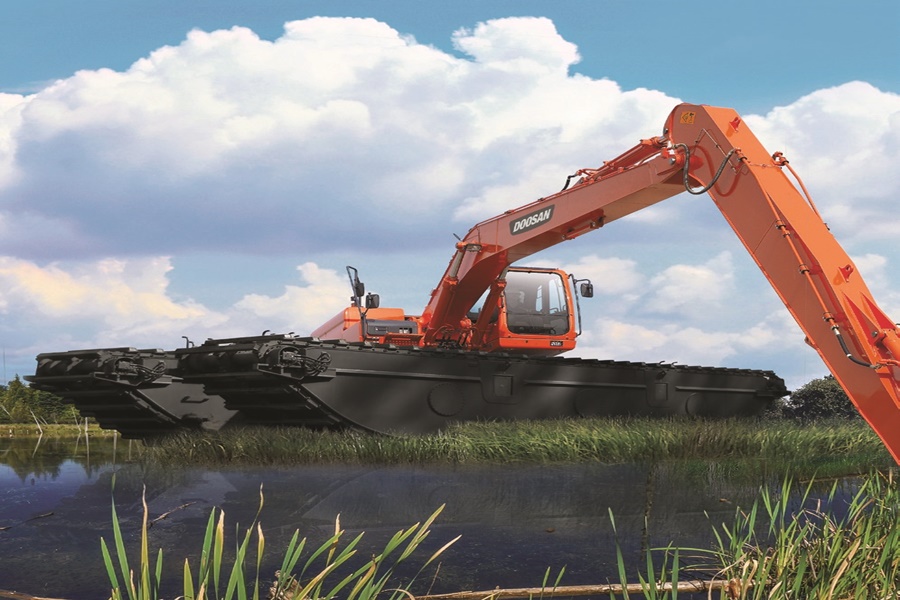

DEVELON(DOOSAN) DX225 AM Amphibious Excavator

DEVELON Amphibious is designed to enhance mobility in marshes, swampy area and soft terrain with floating pontoons. HD HYUNDAI INFRACORE also offers Super Long Reach front kit for more deep and far digging. Using AU kit and SLR kit together, it maximizes versatility of DEVELON excavator.

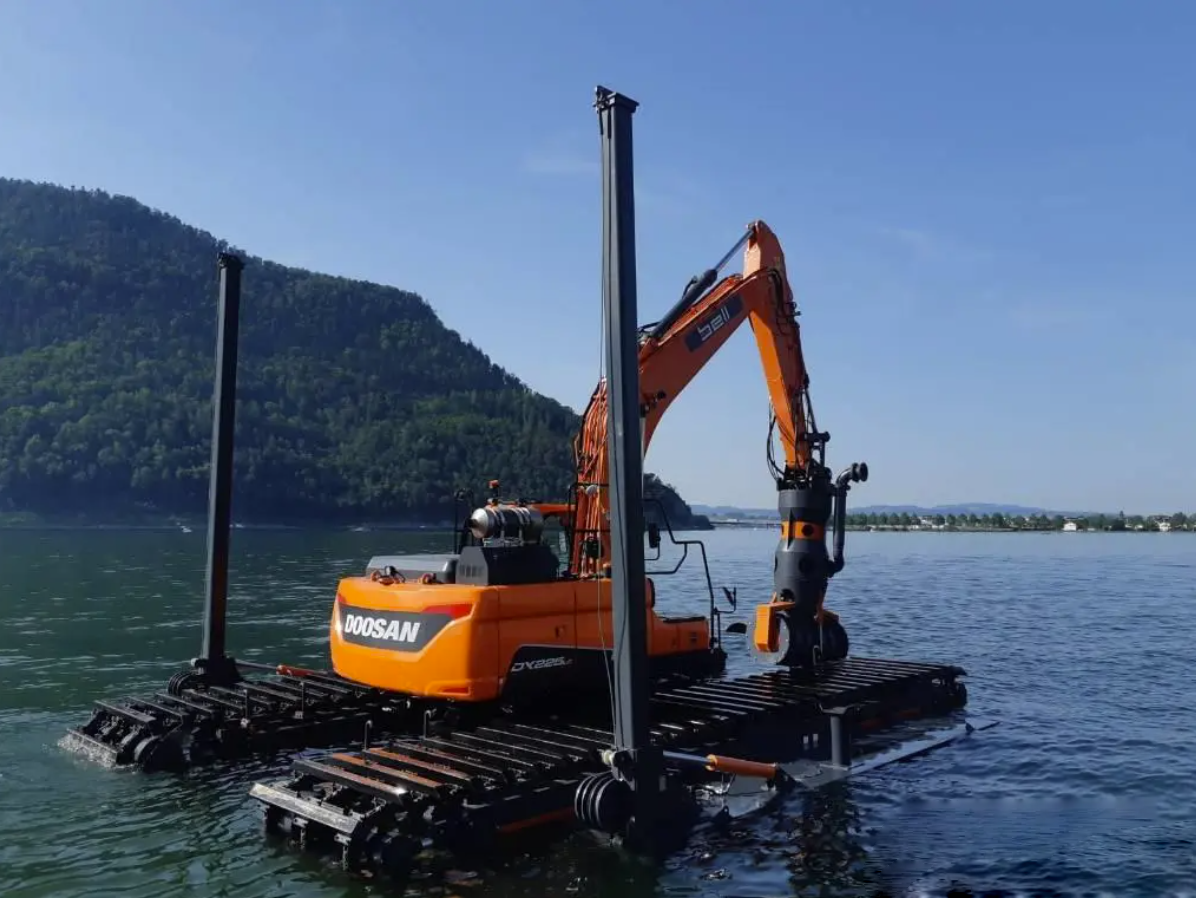

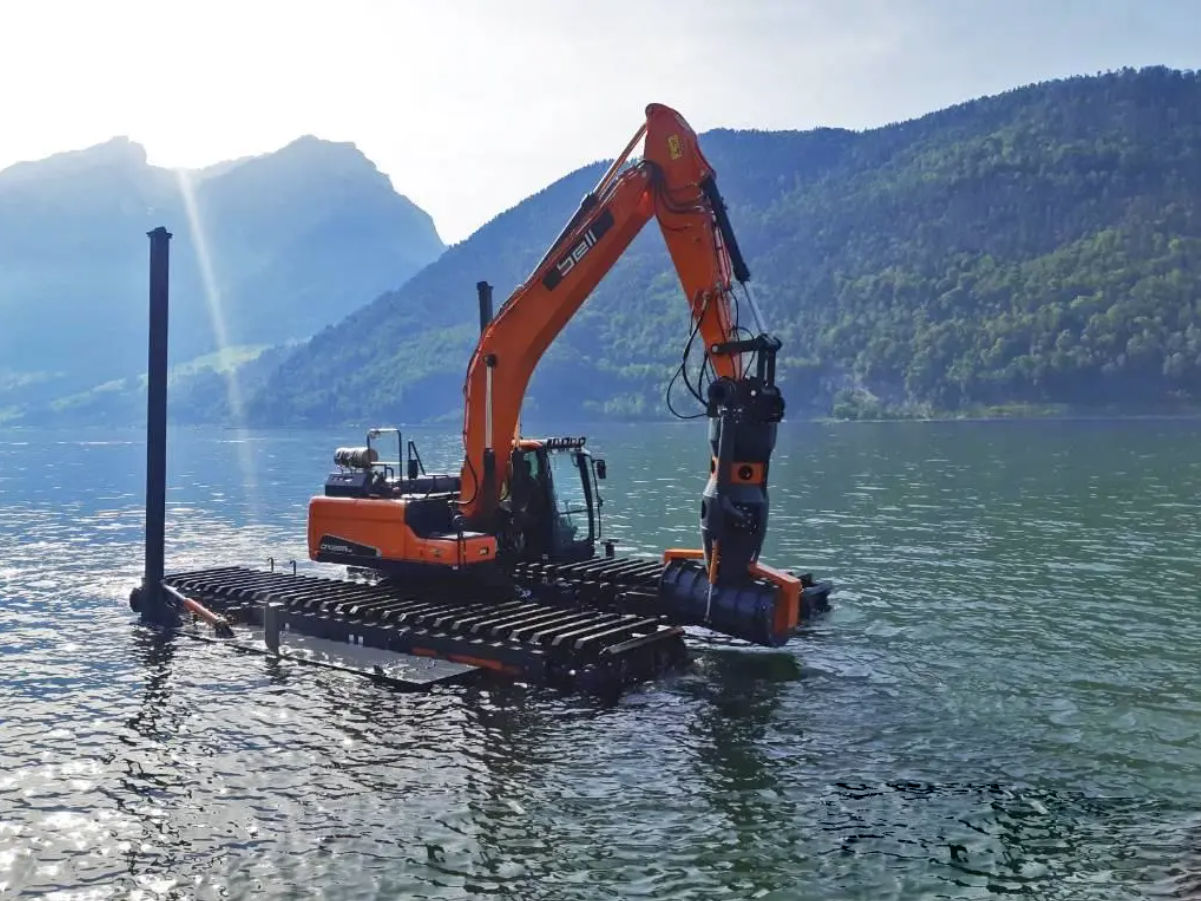

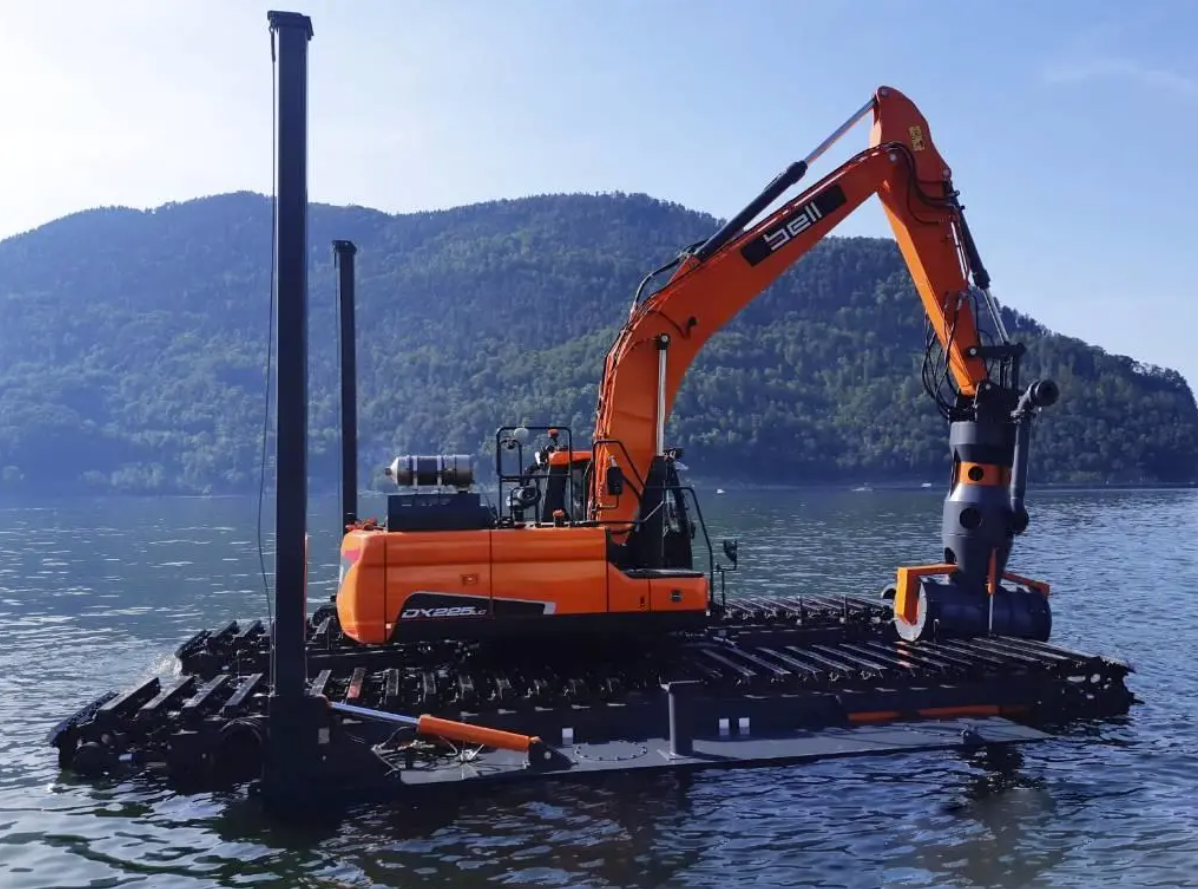

Supplementary Pontoons and Spuds (Optional)

– Supplementary pontoons can be added on each side to boost stability in deeper water operation.- Spud piles attach to supplementary pontoons help to overcome buoyancy effect, it offers added stability and enhanced operability.

Non Hydraulic Extendable Amphibious (Standard)

– For non hydraulic extendable design, there are 2 separate locking pin positions for each pontoon on the horizontal mounting beams.- Users can choose their desired overall track width during the installation process.

HydraulIc Extendable Amphibious & Retractable Pontoons (Optional)

– Designed for ease of land transportation of complete machine by trailer when pontoons are fully retracte.- Higher ROI through long term saving of manpower, crane hiring and other logistical cost.

High Strength Polymer Shoe

– Polymer track shoe can absorb shock from outter impact because it is more resilient than steel.- Surface of polymer shoe is harder than steel, so it is free from wearing and rust.

Parameter

Operating weight	/
Bucket capacity	0.92m³
Engine Model	Doosan DB58TIS
Rated power/speed	110kw/1900r/min
Maximum torque/speed	61.5kgf.m/1400rpm
Travel speed（H/L）	2.5-3.5km/h
Swing speed	11r/min
Displacement	5.785L
Bucket digging force	10,469kgf
Arm digging force	5,074kgf
