Max. Working Height：11.20m
S.W.L：200kg
Overall Weight：2950kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

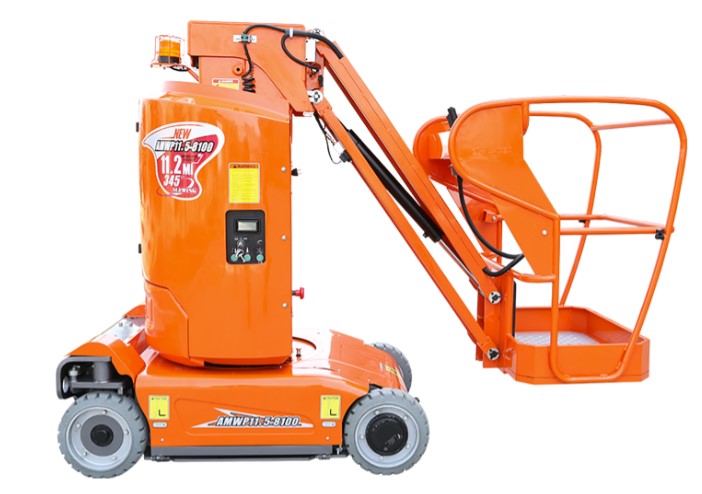

DINGLI AMWP11.5-8100 Self-propelled Vertical Lifts
● Battery as power source, light structure, flexible operation, no noise, no pollution
● Can drive at full height, suitable for warehouse, supermarket, hotel, airport and other narrow space environment
● 3-meter horizontal extension, covering more working areas
● Touch screen for quick fault diagnosis and function setting
● Automatic pothole protection
Parameter
| Max. Working Height | 11.20m/36ft 9in |
| Max. Platform Height | 9.20m/30ft 2in |
| Max. Horizontal Reach | / |
| Up and Over Height | / |
| Overall Length | 2.62m/8ft 7in |
| Overall Width | 1.00m/3ft 3in |
| Overall Height | 1.99m/6ft 6in |
| Platform Size(Length×Width) | 0.62m×0.87m/2ft×2ft 10in |
| Platform Extension Size | / |
| Ground Clearance(Stowed) | 0.07m/3ft 3in |
| Ground Clearance(Raised) | 0.02m/0.7in |
| Wheelbase | 1.22m/4ft |
| Turning Radius(Inside/Outside) | 0.23m/1.65m / 9in/5ft 5in |
| Tyres | φ381×127mm / φ15in×5in |
| S.W.L | 200kg/440lb |
| S.W.L On Extension | / |
| Max. Occupants(Inside/Outside) | 2 |
| Gradeability | 25% |
| Max. Working Slope | 2.5/2.5 |
| Turret Rotation | 345° |
| Jib Movement | +70°/-60° |
| Travel Speed(Stowed) | 4.5km/h / 2.80mph |
| Travel Speed(Raised) | 0.5km/h / 0.31mph |
| Up/Down Speed | 42/38sec |
| Overall Weight | 2950kg/6503lb |
| Battery | 24V/240Ah |
| Integrated Charger | 24VDC/30A |
| Driving Motor | 2×24VDC/1.5KW |
| Lifting Motor | 24VDC/3kW |
