Max. Working Height：6.5m
S.W.L：300kg
Overall Weight：840kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

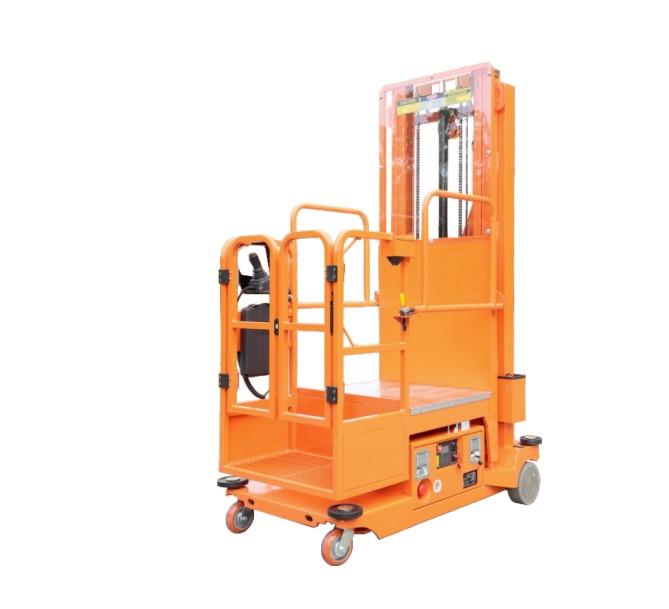

DINGLI ZDYT3-4.5S Self-propelled Aerial Stock Picker
● Suitable for warehouse, supermarket and other narrow space environment
● Fault diagnosis, oil pipe explosion-proof system
● Automatic pit protection
● Full height driving
Parameter

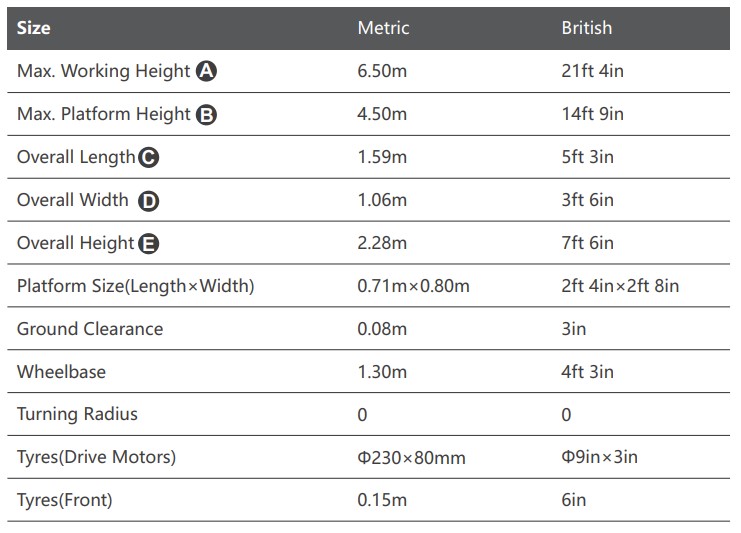

| Max. Working Height | 6.50m/21ft 4in |
| Max. Platform Height | 4.50m/14ft 9in |
| Overall Length | 1.59m/5ft 3in |
| Overall Width | 1.06m/3ft 6in |
| Overall Height | 2.28m/7ft 6in |
| Platform Size(Length×Width) | 0.71m×0.80m/2ft 4in×2ft 8in |
| Ground Clearance | 0.08m/3in |
| Wheelbase | 1.30m/4ft 3in |
| Turning Radius | 0 |
| Tyres(Drive Motors) | φ230×80mm/φ9in×3in |
| Tyres(Front Motors) | 0.15m/6in |
| Tyres(Front) | / |
| Tyres(Back) | / |

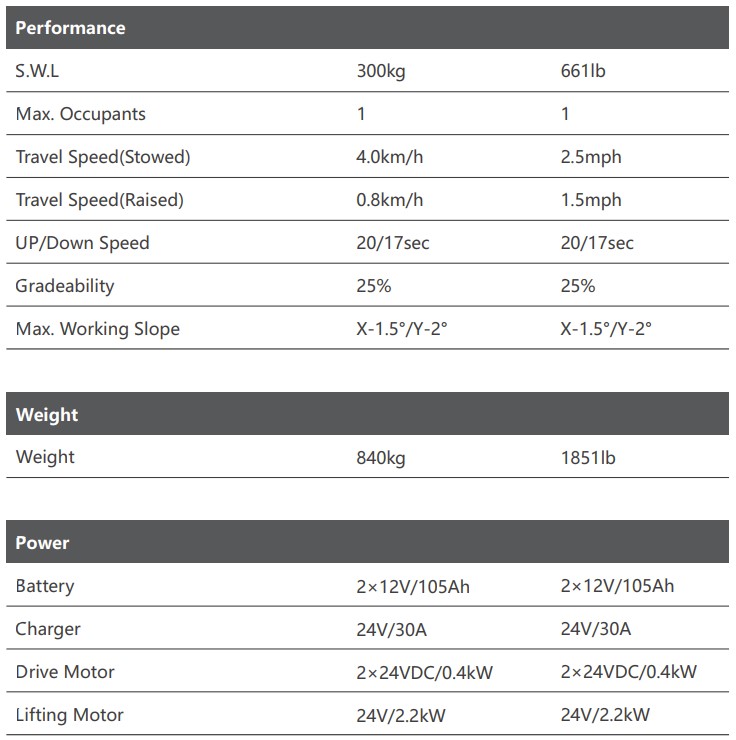

| S.W.L | 300kg/661lb |
| Max. Occupants | 1 |
| Travel Speed(Stowed) | 4.0km/h / 2.50mph |
| Travel Speed(Raised) | 0.8km/h / 1.50mph |
| Up/Down Speed | 20/17sec |
| Gradeability | 25% |
| Max. Working Slope | X-1.5°/Y-2° |
| Overall Weight | 840kg/1851lb |
| Battery | 2×12V/105Ah |
| Integrated Charger | 24V/30A |
| Driving Motor | 2×24V/0.4kW |
| Lifting Motor | 24V/2.2kW |
