Overall weight:/
Rated capacity:1800kg
Maximum lifting height:3100mm
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

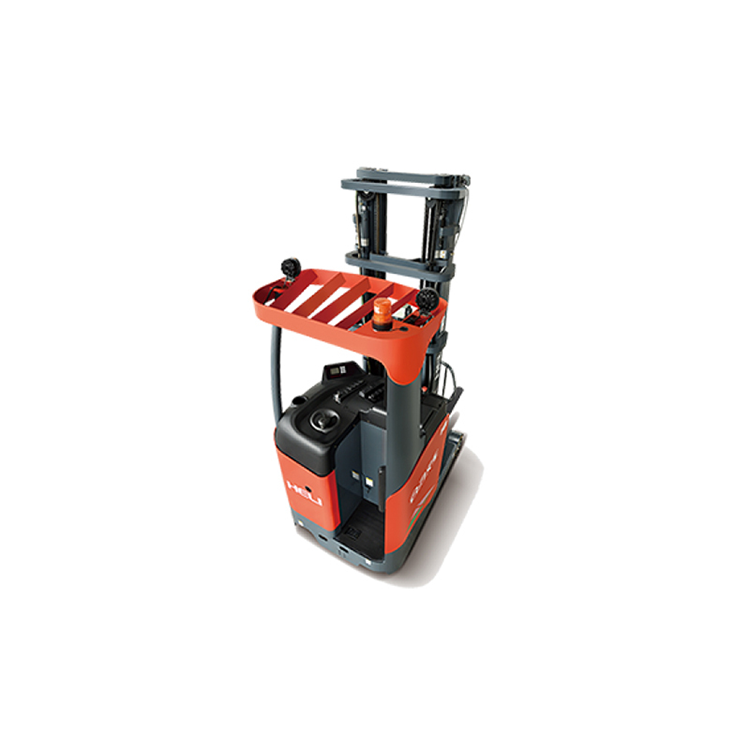

HELI CQD18-GC2R Forward Forklift
● Three-phase AC motor technology
Driving, lifting and steering are all controlled by three-phase AC motors
Powerful acceleration performance.
Change driving direction quickly and sensitively without sluggishness
The brushless maintenance-free motor has a longer life and lower maintenance costs. It can recharge energy during deceleration and has a longer operating time
● Brand-new hydraulic design
The brand-new hydraulic design makes the hydraulic system more efficient
High-power lifting motor
MOSFET lifting speed control electronic control
New backlash-free gear technology low-noise gear pump, high working efficiency and long service life
Maximum full-load lifting speed increased by 19%
● More optimized intelligent design
CAN bus technology
Slope parking self-braking
Operation sequence protection
Driving speed control
Lifting speed control
Electronic control self-protection
Foot switch interlocked with driving
● Advanced EPS electronic power steering
EPS electronic power steering provides light, flexible, efficient and silent operation for the whole vehicle
Steering motor controller
Automatic centering function
Steering automatically limits speed and acceleration
● Easy-to-operate thumb switch
Thumb switch controls driving functions
Operational function components are clear and easy to understand
● Five independent braking systems
Release the current regenerative braking of the accelerator handle
Release the foot switch to activate the emergency driving brake
Button-triggered parking brake
Automatically activated parking brake
Emergency power-off switch
● Operation display
High-quality control instruments can display most important operating parameters
180-degree angle position display
Battery power status and fault code display
Select driving mode
Lifting lock indicator
Hour meter
Working time display
● Wide-view mast
With excellent vision
Integrated side shifter
Large residual load when lifting to high position
Lifting limit buffer
Mast forward and backward limit buffer
Lifting height series range: 2000- 6500mm
● Overhead guard
The rear-mounted column of the overhead guard protects the driver and improves the working field
The top fence plate gives the driver a wider field of vision
The tilted viewing angle design of the front ring beam is more in line with the visual angle of the human eye
Comfortable cockpit
The driver’s body is fully protected by the vehicle body
The cab is equipped with waist, head and elbow supports
Important operating parts are within reach
Parameter
Overall weight | / |
Rated capacity | 1800kg |
Maximum lifting height | 3100mm |
Maximum travelling speed (unloaded\loaded) | / |
Maximum lifting speed (unloaded\loaded) | / |
Maximum gradeability(loaded) | 10% |
Dimensions without fork | / |
Wheel base | / |
Load center | 500mm |
Minimum turning radius | / |
Fork dimensions | / |
Request a Quote
