Kerb/GVW: 8400/18000Kg
Driving type：4×2
Output Power ：180Kw
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

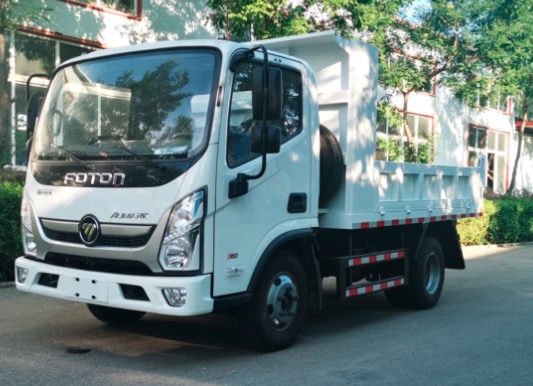

FOTON Euro 5 AUMAN 4*2 LHD 15T Dump Tipper Truck
FOTON dump truck has 8×4, 6×4, 4×2 with cummins and weichai diesel engine, has EXT, GTL and EST new modern cabin, is very famous brand and hot dump truck.

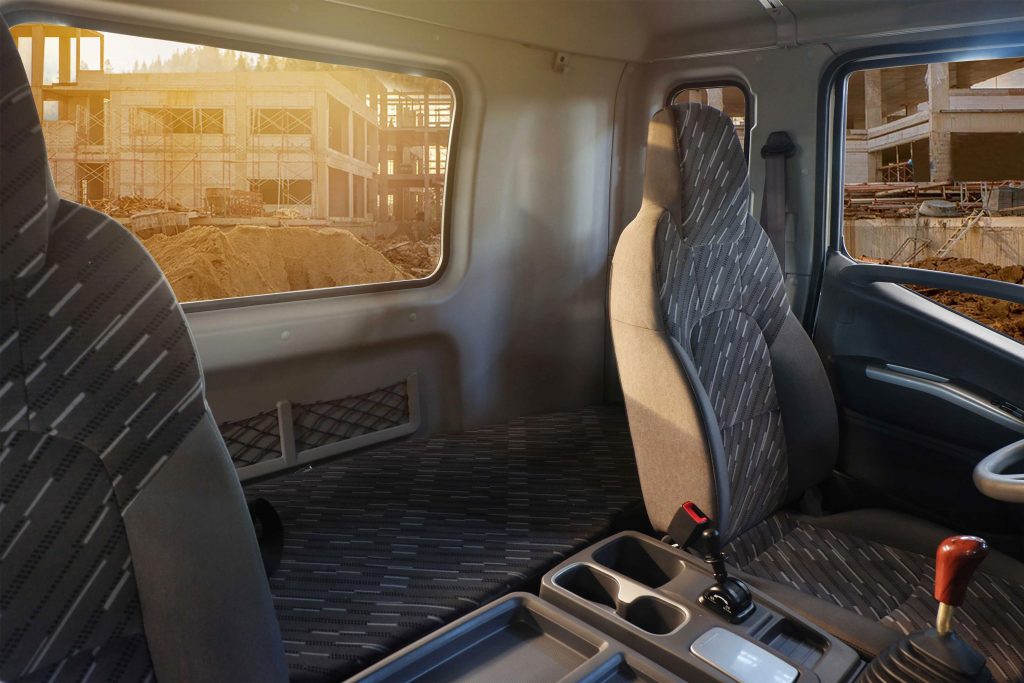

FOTON brand EST-M one row and a half 2200mm driver cab,
5150mm wheelbase,
4*2 LHD, RHD optional
ISD245 50 Cummins 180KW/245hp Euro 5 diesel engine,
8JS118TA-B FAST 8+1 gears, manual type
5.5T front axle/10T rear axle,
manual air conditioner, 295/80R22.5 tires, 200L oil tanker, central controlled locks and electric doors and windows, electric rear

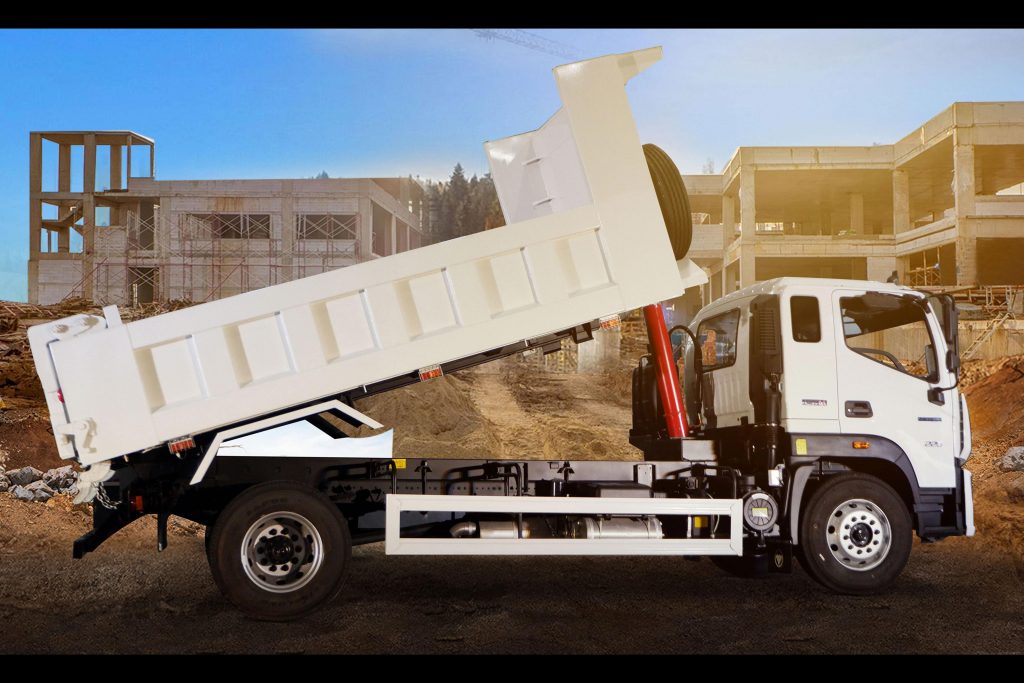

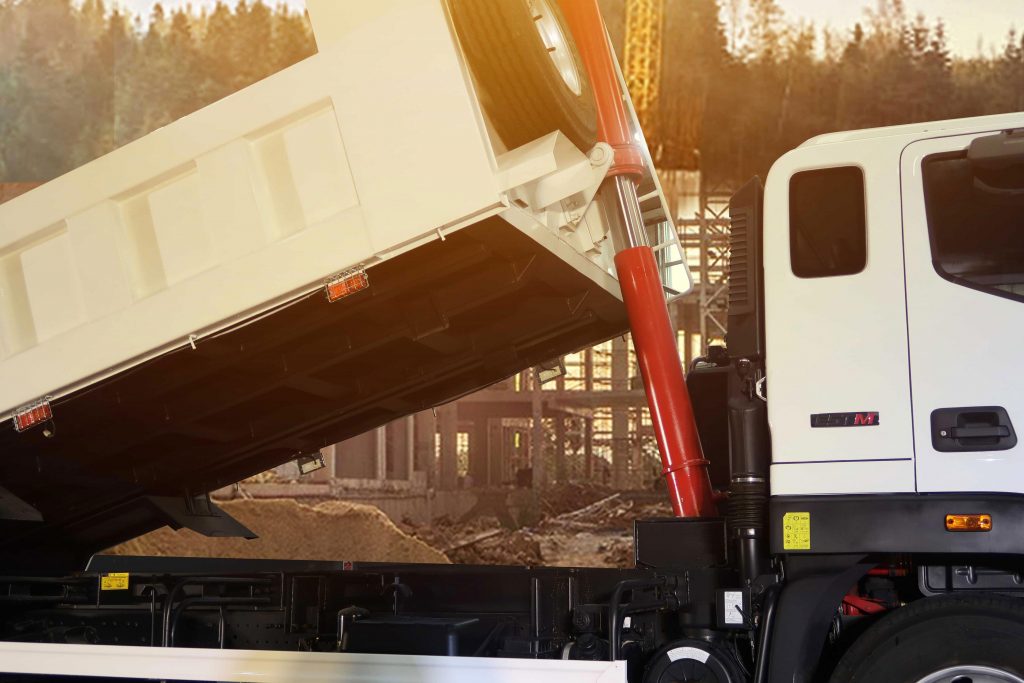

view mirror, ABS+ASR, power steering, Hydraulic Electric Flipping,Parking sensors+ cruise, Knitted cushioning seat (air bag) ,
etc.

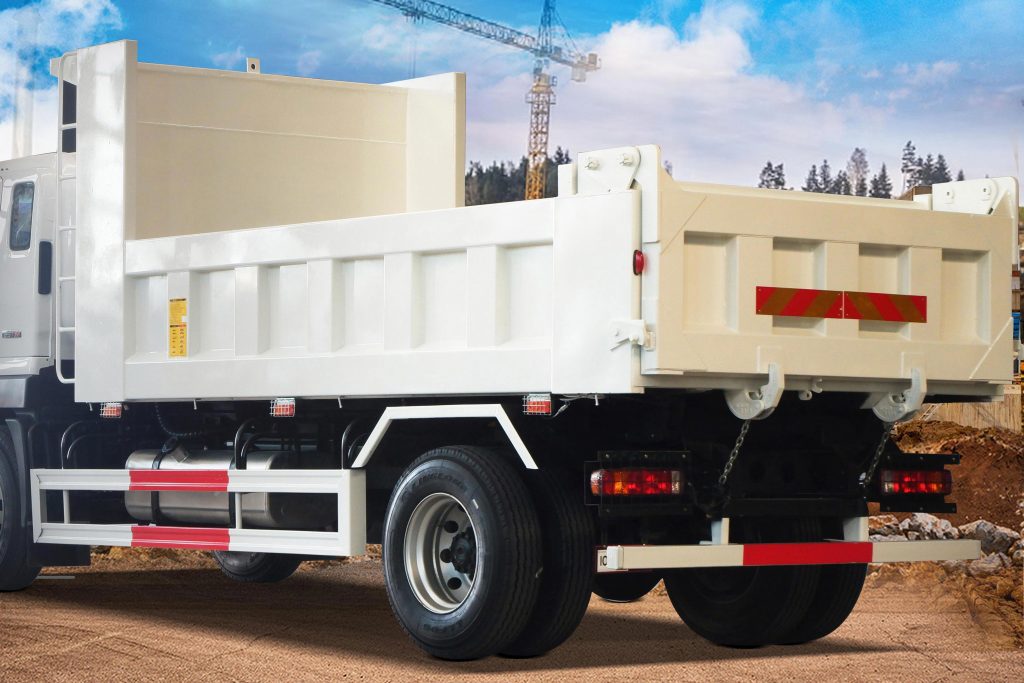

The overall dimension(L*W*H) of FOTON dump tipper truck is 8998×2300,2490×2800(mm); while the dimension(L*W*H) of the tipper box
body is 6500×2200×600,800(mm).
total mass: 18000kgs
Curb mass: 8400kgs
Rated mass: 9470kgs
The real loading capacity is to 15T.
Parameter
| Drive Type | 4×2 |
| Kerb Mass | 8400Kg |
| GVW | 16000Kg |
| Dimension | 8998×2300/2490×2800mm |
| Wheelbase | 5150mm |
| Cargo size | 6500*2200*600/800mm |
| Engine Model | ISDe245 50 |
| Output Power | 180kw/245HP |
| Transmission Model | 8JS118TA-B fastgear 8 speed manual gearbox |
| Front Axle Model | / |
| Rear Axle Model | / |
