View larger image
Operating weight：/
Rated Power：194kW
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

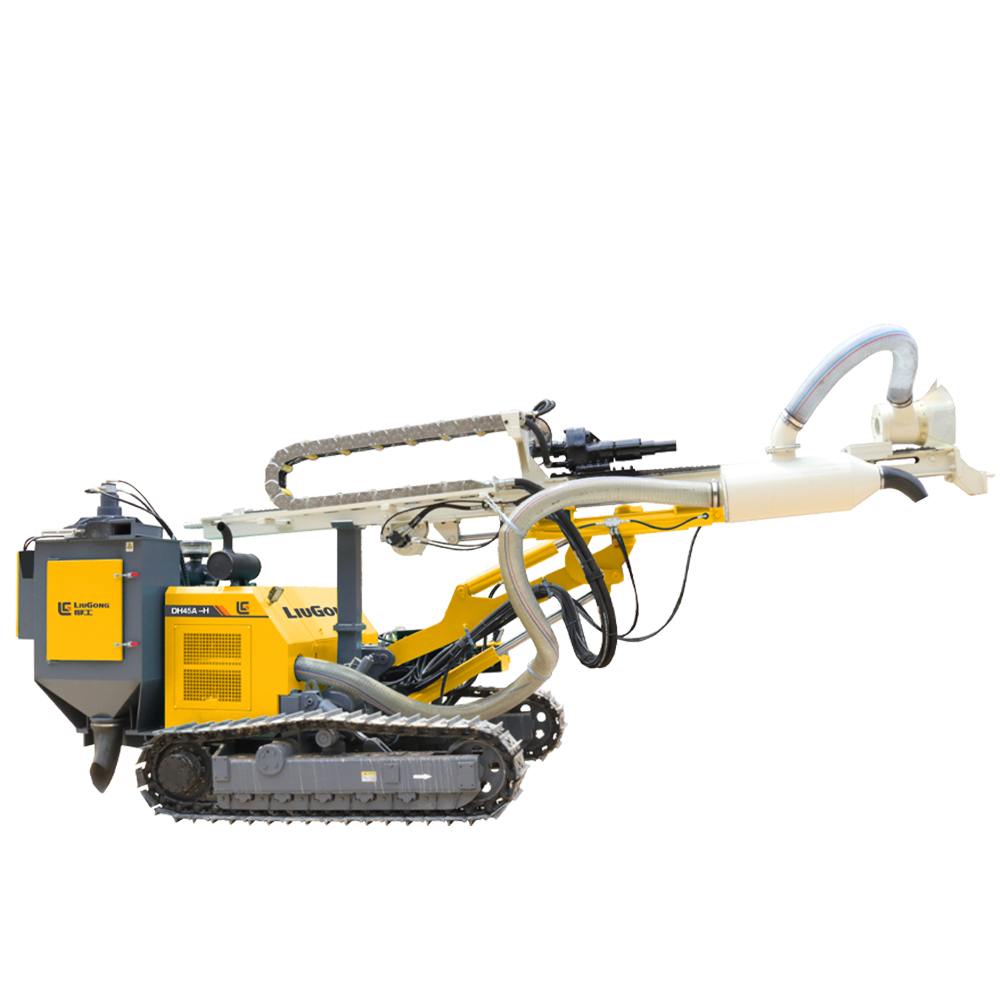

LIUGONG DH45A-CS Drilling Rig
- Patented hydraulic loop structure with low pressure highly improve the reliability of hydraulic system
- Automatical control system can reduced pressure accordingly, and the drill bit reverse to avoid jamming.
- Two stage dust collector with filtering area of 15 m²ensure excellent working result for near dust free drilling.
Parameter
| Borehole Diameter | 76-127 mm |
| Pipe Sizes | T45,T51 mm |
| Hammer Size | / |
| Max Rotation Speed | / |
| Max Rotation Torque | / |
| Feeding Stroke | 4420 mm |
| Feed Extension | / |
| Feed Speed | / |
| Feed Force | 16 kN |
| Pull Up Force | / |
| Length of Feed Beam | / |
| Max Walking Speed | 4.3/2.8 km/h |
| Track Oscillation | ±10 ° |
| Grad Ability | / |
| Rated Power | 194 kW |
| Engine | / |
| Length | 9200 mm |
| Width | 2350 mm |
| Height | 3100 mm |
| Weight | 12500 kg |
Request a Quote
