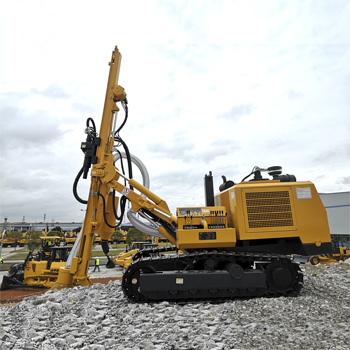

LIUGONG DH46A-H Drilling Rig
VS


Operating weight:/

Rated Power:59kW


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

LIUGONG DH46A-H Drilling Rig


  • Special designed floating pipe and hose reel protects the hydraulics and air pipes and hoses, achieving a stable output of hydraulic energy and a longer service life of the oil lines.
  • Standard two-stage effectively protect the environment and the health of operators.
  • The unique control system offers auto adjustment of feed rate and pressure, rotation torque and impact pressure so as to reduce the failures such as jamming.
  • Utilization of high precision filter elements ensures the cleanliness of hydraulics and extends service life time of the hydraulic components.

Parameter

Borehole Diameter115-152 mm
Pipe Sizes76/89x3000 mm
Hammer Size4’’/5’’
Max Rotation Speed100 rpm
Max Rotation Torque3000 N·m
Feeding Stroke3000 mm
Feed Extension1200 mm
Feed Speed0.59 m/s
Feed Force15 kN
Pull Up Force25 kN
Length of Feed Beam5500 mm
Max Walking Speed2 km/h
Track Oscillation±10 °
Grad Ability 32°
Rated Power 59 kW
EngineYuChai
Length5400 mm
Width2330 mm
Height2020 mm
Weight7000 kg
