View larger image
Max. Working Height：16m
Max. Platform Height：14m
Lifting Capacity：230 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

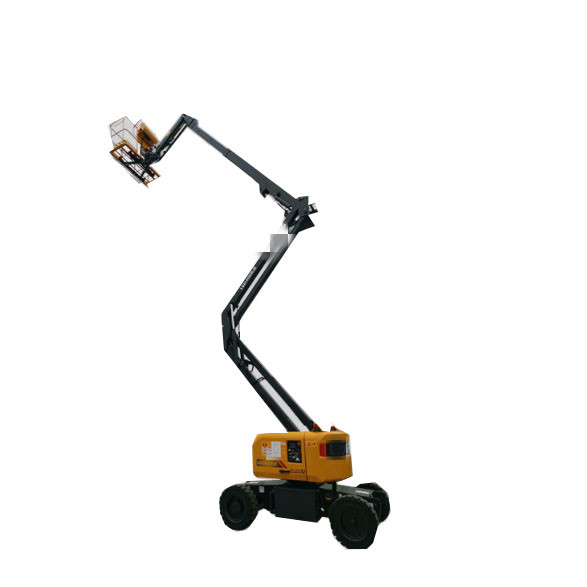

LIUGONG LSA140DWJE Articulating Boom Lift
Safe and reliable: work platform overload protection, 230kg unlimited; high-precision work platform load cell, continuously monitor the platform load; imported hydraulic and electrical components, work more reliable.
Efficient and comfortable: electro-hydraulic proportional control technology, working smoothly and comfortably; combined levelling mechanism, working more smoothly; integrated slewing mechanism, slewing more smoothly; AC travelling drive control system, strong power, driving more efficient.
Compact structure: zero tail swing, adapting to narrow space operation; combined arm structure, strong ability to cross obstacles;
Convenient maintenance: self-lubricating bearings; screw-out battery box; real-time monitoring and transmission of vehicle information; historical fault record query; working condition information record; maintenance tips.
Parameter
| Max. Working Height | 16 m |
| Max. Platform Height | 14 m |
| Lifting Capacity | 230 kg |
| weight | 7750 kg |
| working platform Rotation angle | ±90 ° |
| Overall Dimensions (Stowed, L*W*H) | 1830×760×1100 mm |
| Turning angle | (non-continuous)355 ° |
| Max. Working Range | 8.2 m |
| Graderability(%) | 30% |
| wheel base | 2.1 m |
