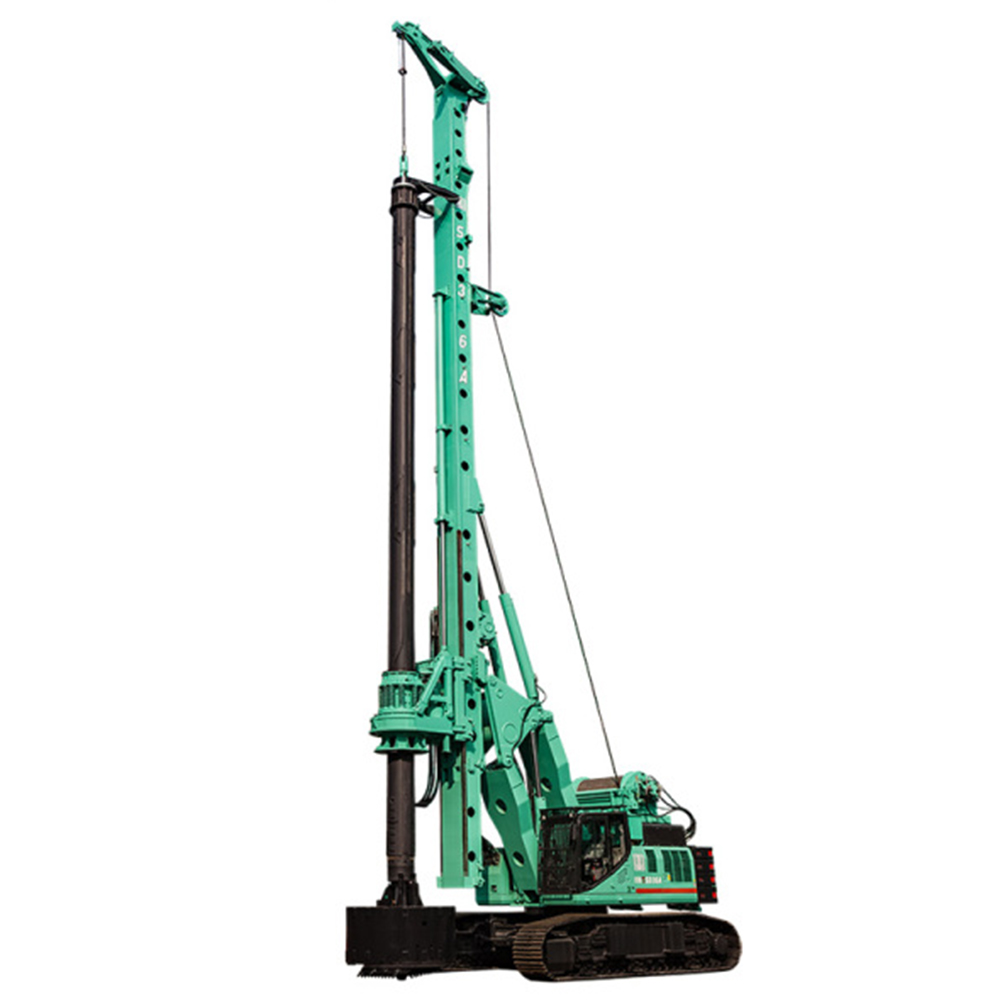

LIUGONG SD36A Multi Functional Drilling Rig
VS


Model:QSM11-Tier3

Rated Power(kW):299kW

Max.output torque(kN﹒m):360kN.m


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

LIUGONG SD36A Multi Functional Drilling Rig


SD36A rotary drilling rig adopts a new generation of special chassis, the engine power of 299kw, adopts Euro III emission, high power, high durability; large weight, low centre of gravity, construction stability is greatly improved.



New generation special chassis: engine power 299kw, adopting Euro III emission, high power, high durability; large weight, low centre of gravity, construction stability is greatly improved.

Power head: multi-speed control, higher drilling efficiency; long guided single side three sets of wear-resistant structure, accurate drilling verticality; double buffer system, improve protection ability.

The main winch adopts long drum design and fast merging technology, the maximum speed reaches 70m/min; the pressurised high and low speed configuration and the engine one-key quick function effectively improve the construction efficiency and prolong the service life of the wire rope.

Energy saving and environmental protection: adopting multiple pumps in series and parallel system as well as specially designed main valve, it can reasonably distribute power, reduce energy consumption and improve the output power of main valve.

Stacked counterweight of the main machine can increase or decrease the weight flexibly according to the configuration and the actual working conditions, which makes the equipment more flexible in use; it can effectively improve the construction efficiency, ensure the quality of hole formation and improve the life of the drill pipe in the construction of super-hard and super-complex strata.

Integrated hydraulic system and electrical system: strong anti-shock ability for heavy load; high reserve coefficient of hydraulic components; high buffer capacity of hydraulic system. The equipment is safer and more reliable; the operation is more flexible and reasonable.

Appearance design: the whole vehicle has a super dazzling streamline design, the covering parts and counterweights are cast with integrated abrasives, and the beautiful use of wear-resistant and easy-to-clean glaze paint integrates the sense of science and technology of the rotary drilling rigs with a strong sense of power.

Parameter

Working height25840 mm
Weight ( without drilling tools)92000 kg
Upper chassisJS80
EngineQSM11-Tier3
Rated Power299/1900 kW/rpm
Hydraulic system flow2×380+164 L/min
Hydraulic system pressure33 MPa
Fuel tank capacity650 L
Hydraulic tank capacity420 L
Extendable under carriageJT90
Shoes width800 mm
Chassis length6020 mm
Undercarriage width3450-4600 mm
Traction force650 kN
Travelling speed1.5 km/h
Rotary torque360 kN·m
Rotation speed6-24 r/min
Single line pull of Main winch360 kN
Rope dia of Main winch36 mm
Max lifting speed of Main winch60 m/min
Single line pull of Auxiliary winch75 kN
Rope Dia of Auxiliary winch18 mm
Maximum lifting speed of Auxiliary winch45 m/min
Stroke6000 mm
Crowd force300 kN
Pulling force300 kN
