Max lifting height：5500 mm
Machine weight： 98 t
Max extraction force：700 kN
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

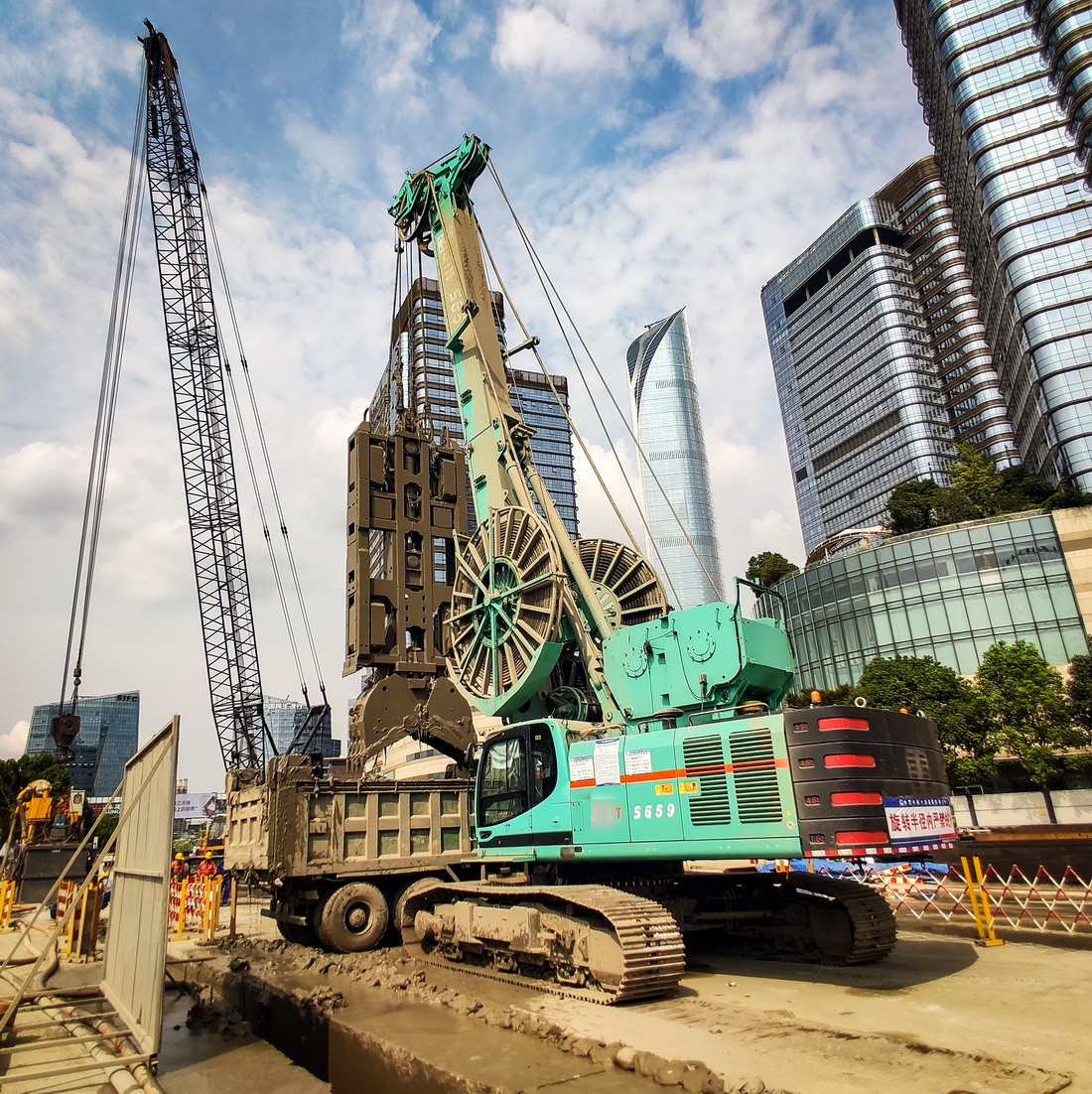

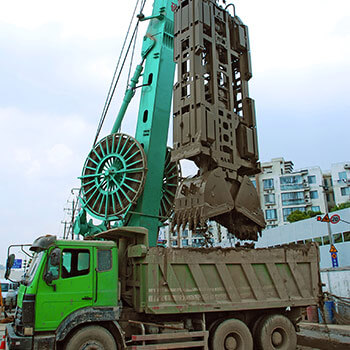

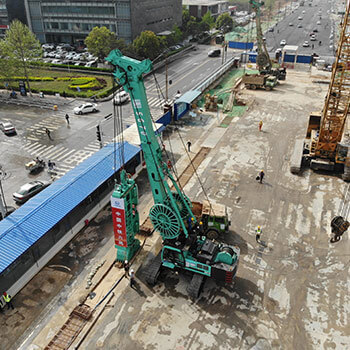

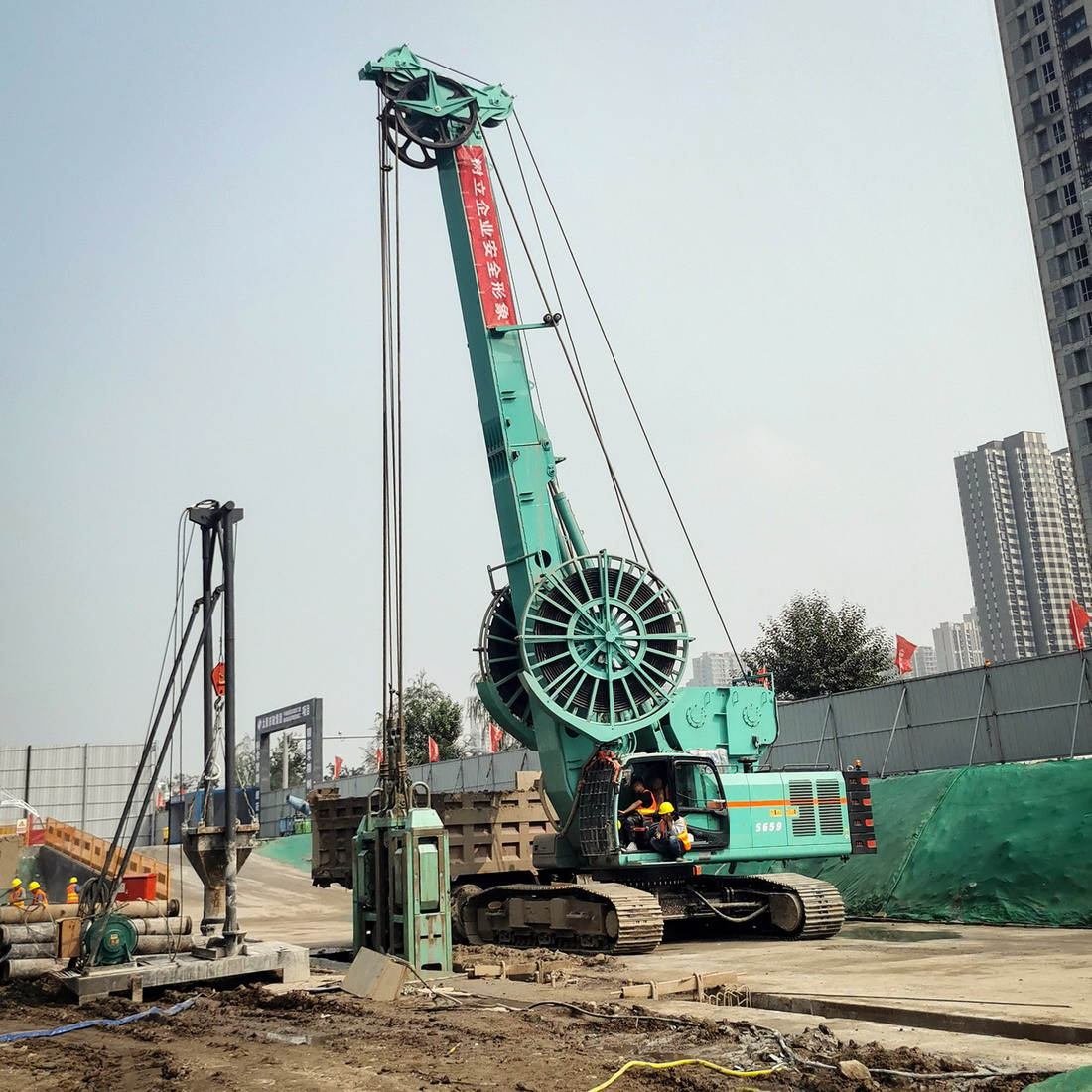

LIUGONG SG70 Diaphragm Wall Grab
FEATURES
* The first 70T extraction force of hydraulic dirphragm wall grab in the world.
* Max wall width 1.5m, depth upto 110m.
* Lowering speed can reach 70m / min, lifting speed is 40m / min (shovel weight 28T).
* Energy saving and environmental protection: Euro III emission standard engine; international advanced load sensing, load
sensitive and proportional control hydraulic system; and specially designed non-damped main valve; variable weight frame, weight
range 18-35T.
* Construction safety: The mast inclination sensor automatically controls the mast inclination to match the winch lifting force to
ensure safety during working period.
* Advanced equipment diagnostic functions: dynamic oil level monitoring and alarming, timely alarming on leaks; equipment
maintenance reminders, equipment maintenance ; dynamic oil quality detection and early warning system, etc.
* 180°rotary joint can meet various construction needs.
Parameter
| Wall width | 0.8-1.5 m |
| Wall depth | 80 m |
| Max extraction force | 700 kN |
| Single line pull | 2×350 kN |
| Frame weight | 23-35 |
| Machine weight(without shovel) | 98 t |
| Working height | 18300 mm |
| Max lifting height | 5500 mm |
| Overall crawler length | / |
| Engine | QSM11-Tier3 |
