Max lifting height：5500 mm
Machine weight： 100T
Max extraction force：800 kN
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

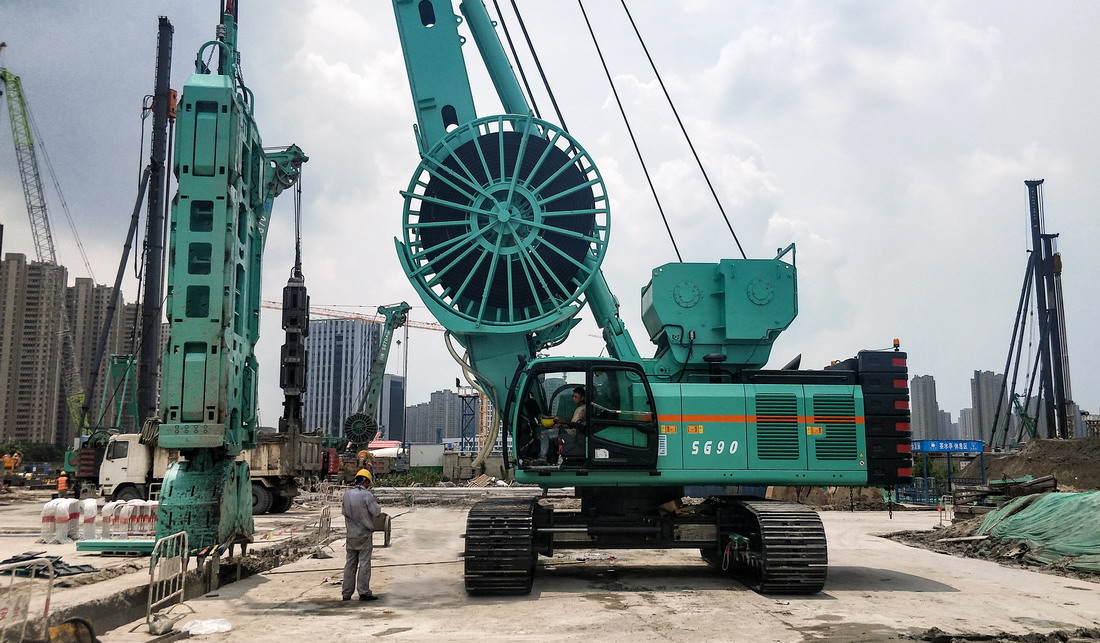

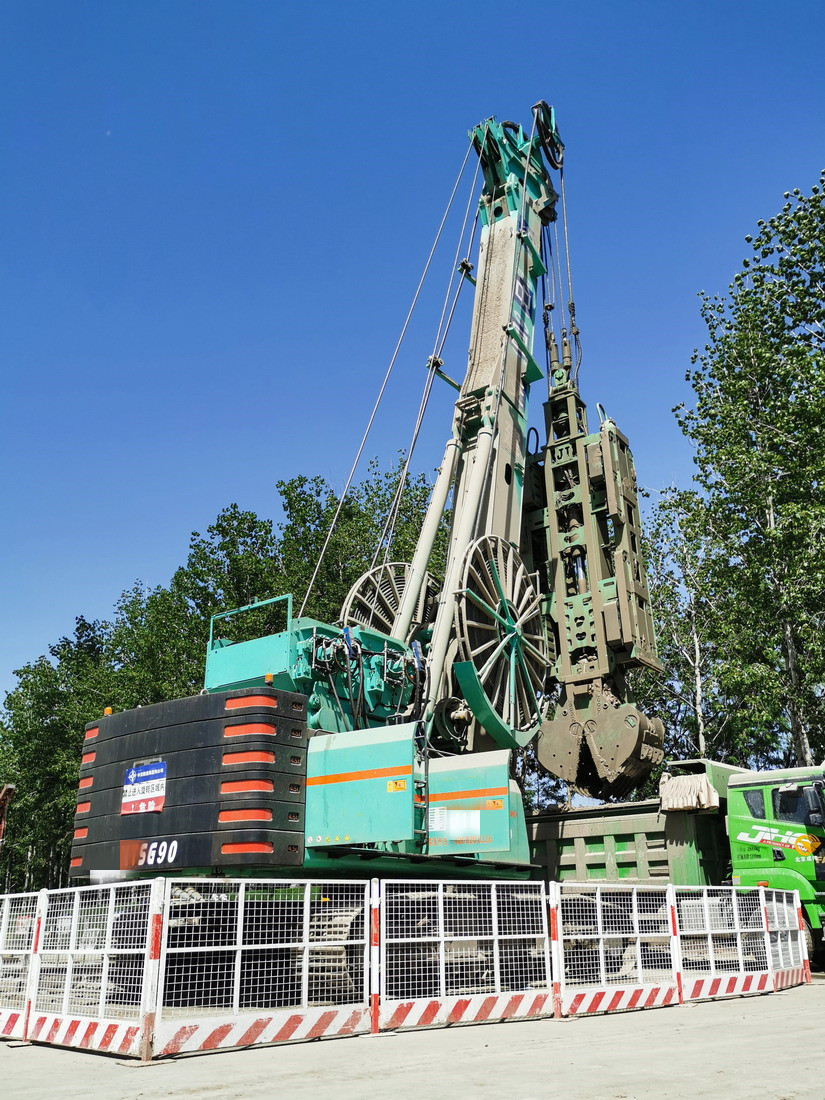

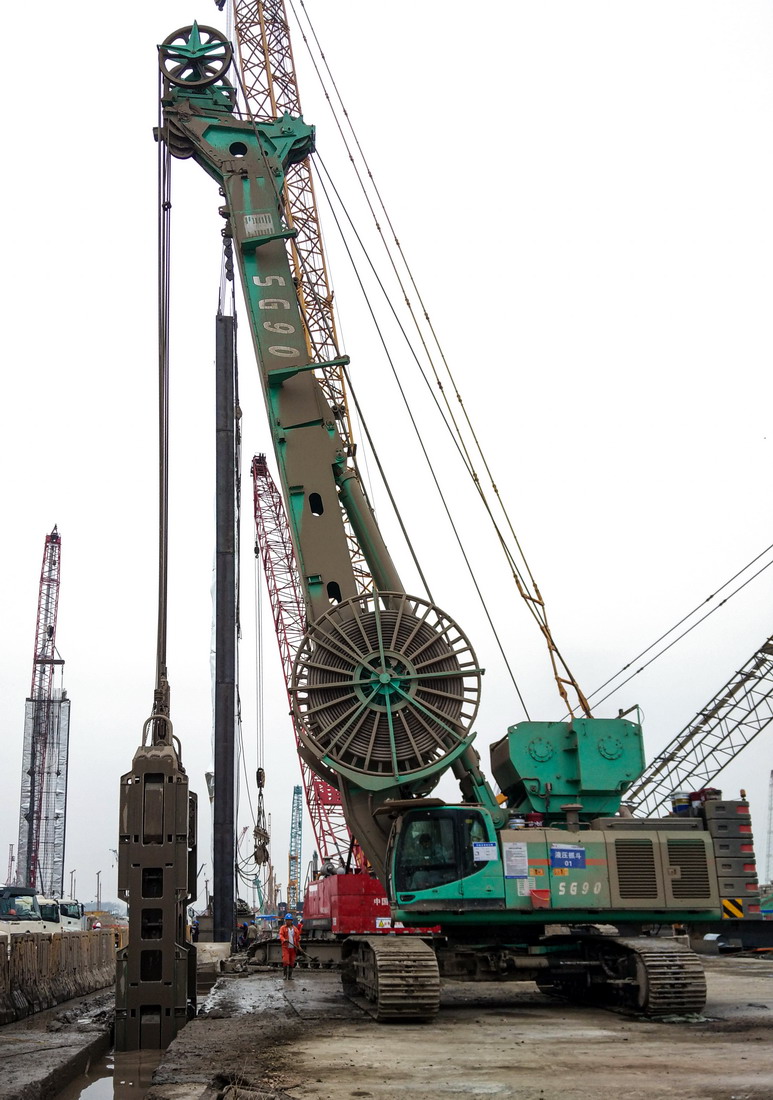

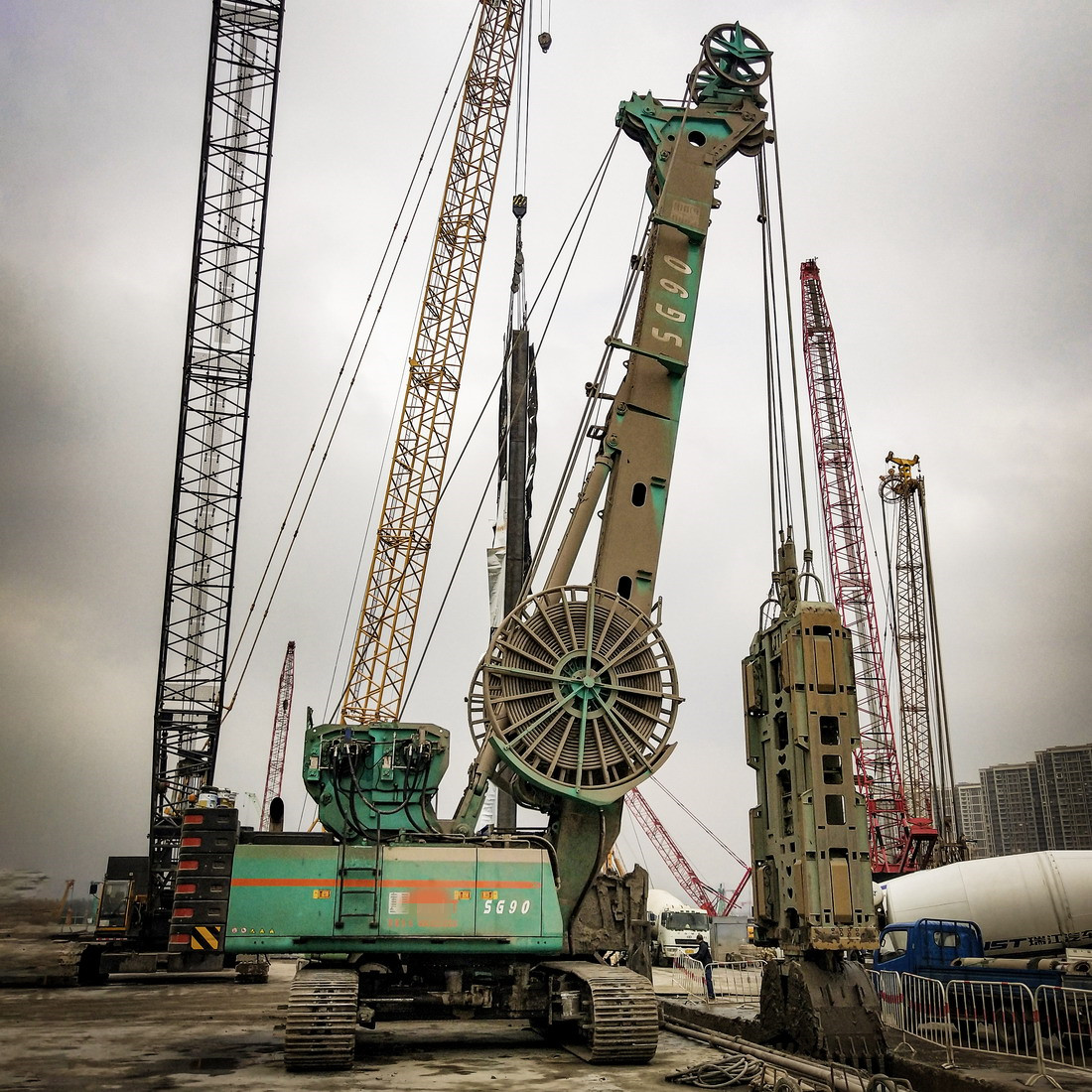

LIUGONG SG80F Diaphragm Wall Grab
The width of the trough can be up to 2.5 metres; the depth of the trough can be up to 90 metres.
Lowering speed up to 65m / min, lifting speed 42m / min (bucket weight 30T).
Powerful power output and large flow hydraulic system combine to enhance the working speed effectively.
Intelligent operation application reduces the labour intensity of operators and effectively improves the digging efficiency.
The structure of large machine has further guarantee for the safety of forming a trough.
New special hydraulic pipe, tensile and wear-resistant.
Translated with www.DeepL.com/Translator (free version)
Parameter
| Wall width | 0.8-2.5 m |
| Wall depth | 90 m |
| Max extraction force | 800 kN |
| Single line pull | 2×400 kN |
| Frame weight | / |
| Machine weight(without shovel) | 130 t |
| Working height | / |
| Max lifting height | 5500 mm |
| Overall crawler length | / |
| Engine | / |
