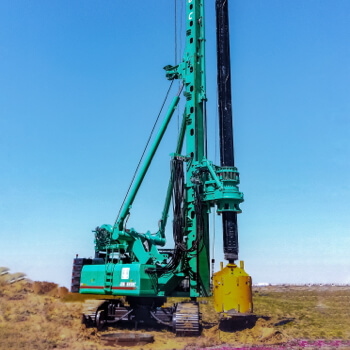

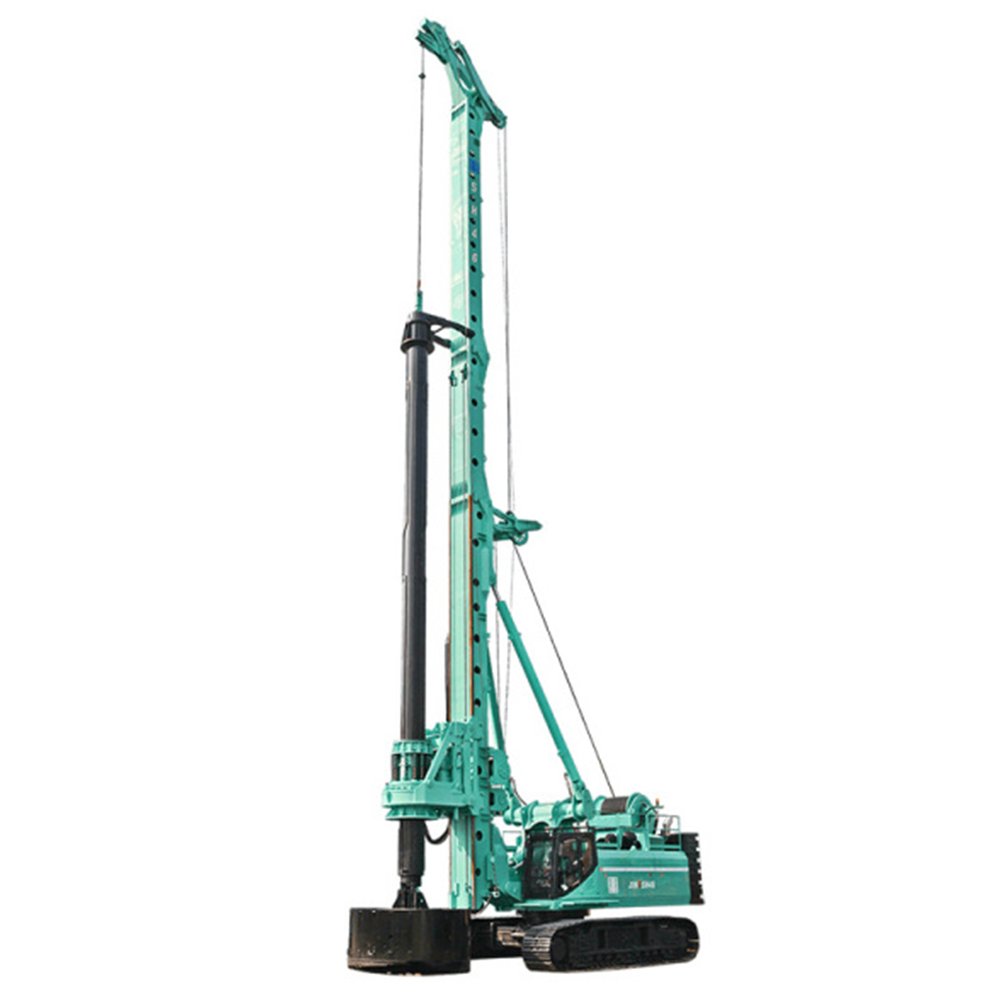

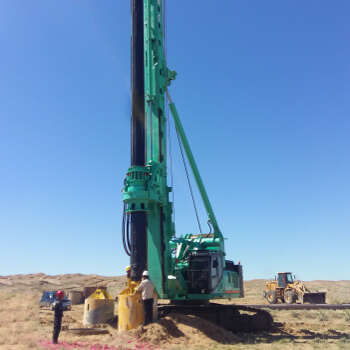

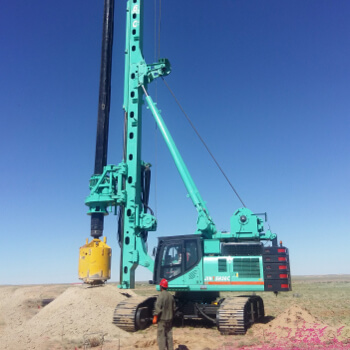

LIUGONG SH46 Multi Functional Drilling Rig
VS


Model:CATC15-Tier3

Rated Power(kW):403kW

Max.output torque(kN﹒m):460kN.m


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

LIUGONG SH46 Multi Functional Drilling Rig


SH46 multifunctional drilling rig adopts C15 Euro III emission EFI engine, low fuel consumption, low noise, energy saving and environmental protection; large displacement, strong power.



C15 Euro III emission EFI engine; low fuel consumption, low noise, energy saving and environmental protection; large displacement, strong power.

Adopting international advanced load sensing, load sensitive and proportional control hydraulic system, which makes the hydraulic system more efficient and energy-saving; the main supporting parts adopt the world famous brand, and the performance of the whole machine is more excellent.

Superior drilling capacity: the maximum drilling diameter can reach 3500mm; the grinding resistance rod can drill to a depth of 110 metres, and the self-locking rod can drill to a depth of 80 metres.

The single-layer winding of the centre winch greatly improves the life of the wire rope, and the pin connection is convenient for operation and maintenance.

High-efficiency construction power head: multi-speed control, higher drilling efficiency; multi-layer shock-absorbing structure, to achieve the whole process of flexible lowering of the drilling, to prevent impact fatigue caused by power head damage and other malicious accidents.

Multi-purpose overhead crane, variable centre distance, high strength material, lightweight design. The installation position of upper mast and middle mast can be interchanged, which can realise the construction of hydraulic hammer, long spiral, guide bar grab, double wheel churning and other working methods; the main machine can also be applied to hydraulic grab, double wheel groove milling machine; giving full play to the advantages of multifunctional combination.

Parameter

Working height31375mm
Weight ( without drilling tools)138000kg
Upper chassisJS130
EngineCATC15-Tier3
Rated Power403kW@1900rpm
Hydraulic system flow2×400+175L/min
Hydraulic system pressure35 MPa
Fuel tank capacity1000 L
Hydraulic tank capacity880 L
Extendable under carriageJT100
Shoes width900 mm
Chassis length6360 mm
Undercarriage width3500-5000 mm
Traction force818 kN
Travelling speed1.5 km/h
Rotary torque460 kN·m
Rotation speed6-24 r/min
Single line pull of Main winch500 kN
Rope dia of Main winch40 mm
Max lifting speed of Main winch60 m/min
Single line pull of Auxiliary winch110 kN
Rope Dia of Auxiliary winch18 mm
Maximum lifting speed of Auxiliary winch40 m/min
Stroke11000&22000mm
Crowd force460 kN
Pulling force460 kN
