Output torque：100*2 kNm
Wall width：0.8-1.5 m
Wall depth：80 m
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

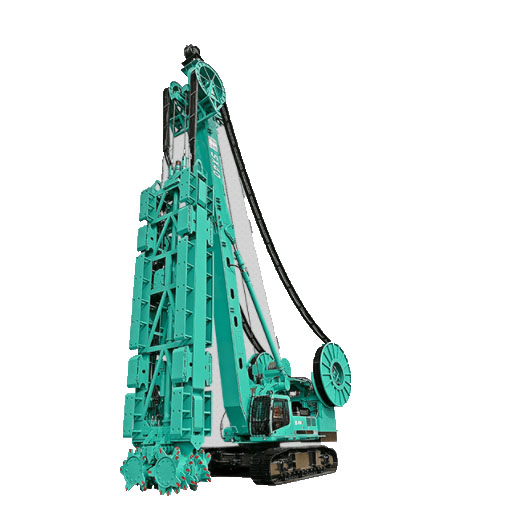

LIUGONG SX40-A Multi Functional Drilling Rig
SX40-A double-wheel milling machine is suitable for all kinds of stratum conditions, which has the features of air lifting and slag discharge, accurate verticality of grooving, set milling joint, low noise, low vibration and pollution, slag separation, slurry recycling, user-friendly control system, and “two functions” of milling/gripping grooves.
Suitable for various stratigraphic conditions
Gas lift slag removal
Precise verticality of groove formation
Sleeve milling joints
Low noise, low vibration and low pollution
Slag separation and slurry recycling
User-friendly control system
Milling/gripping “two machines in one”.
Parameter
| Wall width | 0.8-1.5 m |
| Wall depth | 80 m |
| Output torque of trench cutter | 120×2 kN·m |
| Rotation speed Max of trench cutter | 0-25 rpm |
| Pull force of winch | 2×350 kN |
| System pressure | 33 MPa |
| Main pump flow | 2×380+130+330 L/min |
| Weight of Cutter Wheel | 40(B=1500) t |
| Total Weight ( w/o cutter wheel ) | 98 t |
| Diesel | Cummins QSM11 |
| Power Rotation speed | 300@1900 rpm |
| Electric moter | Y315S+Y225M |
| Power | 110+45 kW |
| Model of undercarriage | SH36-R455LC-7 JT90 |
| Track shoe outer distance | 3450-4600 mm |
| Track shoes width | 800 mm |
| Towing force | 630 kN |
| Crawler speed | 1.5 km/h |
