Max. placing radius: 33m
Independent height: 20m
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

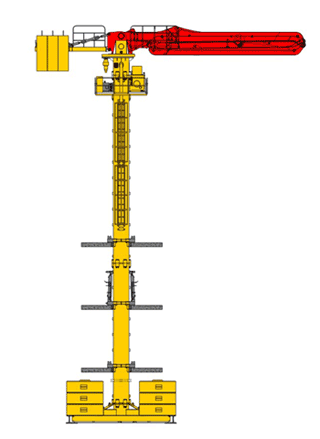

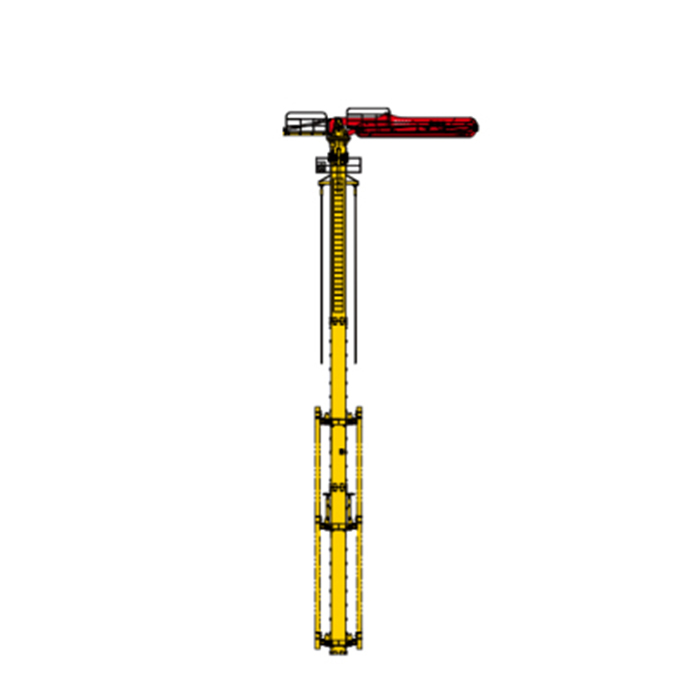

SANY HGD33B Floor Placing BoomHGD33B (33m Lift Shaft Type) Fabric Pole Installed inside the building, maximum use of fabric radius, large fabric range, high utilisation of fabric poles, eliminating the need to cut holes in the floor, and can be installed using the existing lift shaft;
Installation inside the building, maximum use of fabric radius, large fabric range, high utilisation of fabric poles;
Exempt from floor opening, can be installed by using the existing lift shaft;
Telescopic climbing frame support, suitable for installation in lift shafts of different sizes between 2.0m and 2.7m;
Strong bearing capacity of the wall ensures the safety and reliability of the equipment even for large fabric poles;
Climbing frame and bracket have independent climbing system, reducing labour intensity of workers;
With double installation function, it can also be installed on the floor as floor-mounted fabric pole;
Scope of application: concrete above C30, high-rise building construction above 50m.
Parameter
| Max. placing radius | 33m |
| Slewing angle of the placing boom | ±365° |
| Independent height | 20m |
| Climbing speed | 0.5~0.8（m/min） |
| Motor model | / |
| Power | 15kW |
| System pressure | 32MPa |
| Oil tank capacity | / |
