Theoretical rated output：180m³/h
Discharge height：4.2m
Total power ：250kw
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

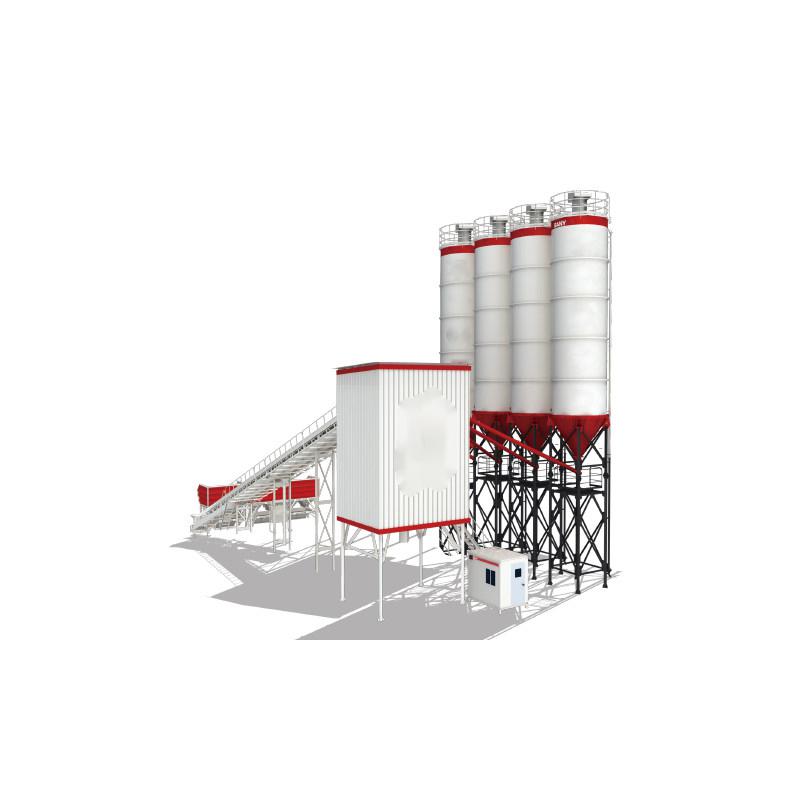

SANY HZS180F8 Concrete Mixing PlantsConcrete mixing station is mainly composed of mixing main engine, material weighing system, material conveying system, material
storage system and control system, etc. 5 systems and other ancillary facilities. Compared with the station aggregate measurement,
the building aggregate measurement reduces four intermediate links and is vertical cutting measurement, which saves the
measurement time and greatly improves the production efficiency.
Advantage:
1. production is more efficient
2. control is more intelligent
3. more accurate measurement
4. stir more evenly
5. more comprehensive customization
6. more frontiers of environmental protection
7. deliver higher quality
Parameter
| Aggregate Capacity | 4×25m³ |
| Category of Aggregate | 4 |
| Feeding Mode | Inclined belt |
| Material Discharging Height | 4.2m |
| Max. Aggregate Size | 80mm |
| Motor Power | 2×55kW |
| Nominal Capacity of Mixer | 3000L |
| Power Standard | 380V, 50HZ |
| Rated Power | 250kW |
| Reference Weight | 106T |
| Silo Capacity | 4×FT200T |
| Theoretic Productivity | 180m³/h |
