Feature

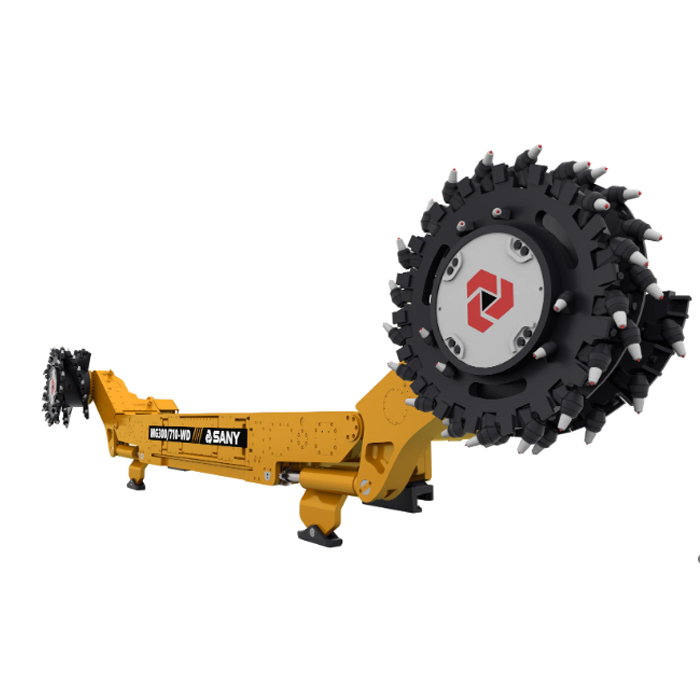

SANY MG300/710-WD Coal Cutter
· Duplex pump. The large displacement pump is used for the height adjustment system and the small displacement pump is used for the brake system to reduce the system power loss.
· The oil return pipeline is installed with a fin-type cooler to guarantee that the oil temperature is below 50℃.
· The harness design within the electric cabinet realizes the stratified layout for cables and fluid pipes within the machine body.
· The high integrated and modularized design is taken for the main control cabinet and inspection cabinet to ensure integral replacement and easy maintenance.
· Shock test and inspection for electric components.
· The gears are micro-modified based on the housing
· deformation condition to prevent the partial offset load of the tooth face.
· The housing is finish machined by an imported machining center to guarantee perfect dimensional tolerances and roughness for the housing and thus ensure the good functioning of the whole drive system.
· The imported constant-temperature coordinates inspection center is used to inspect the housing and guarantee 100% tolerance conformance.
Parameter
| Center Distance of Roller | 12.07 m |
| Coal Hardness | ≤4 F |
| Cutting Height | 2.0-3.6 m |
| Cutting Power | 300 kW |
| Gross Power | 710 kW |
| Height of Machine Surface | 1418 mm |
| Pump Power | 20 kW |
| Roller Diameter | 1.8-2.0 m |
| Tractive Power | 2x45 kW |
| Whole Machine Weight | 45 T |
| Working Conditions | Medium |
