View larger image
Load Weight: 41T
Maximum Torque：2300 NM
Total Power ：390 kW
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

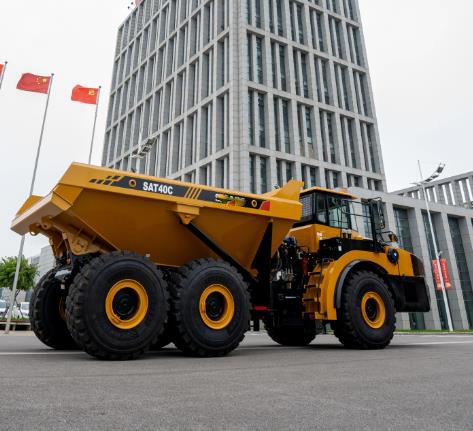

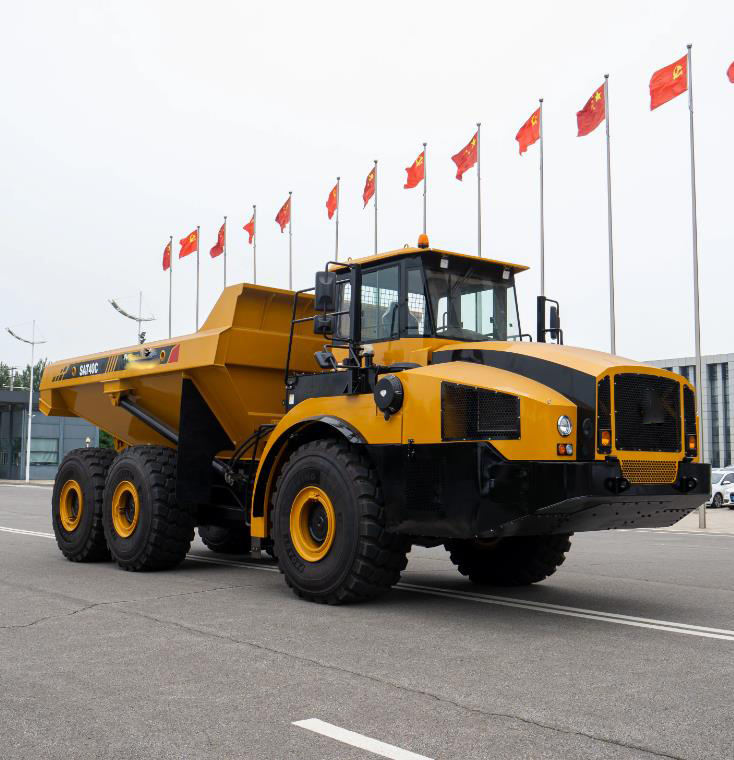

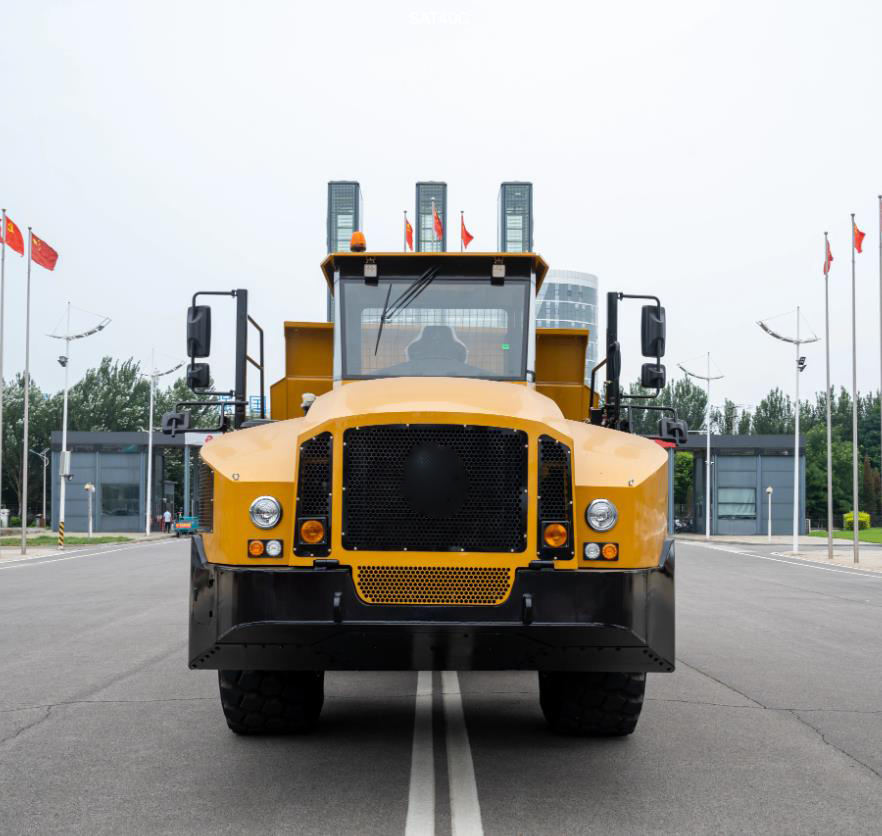

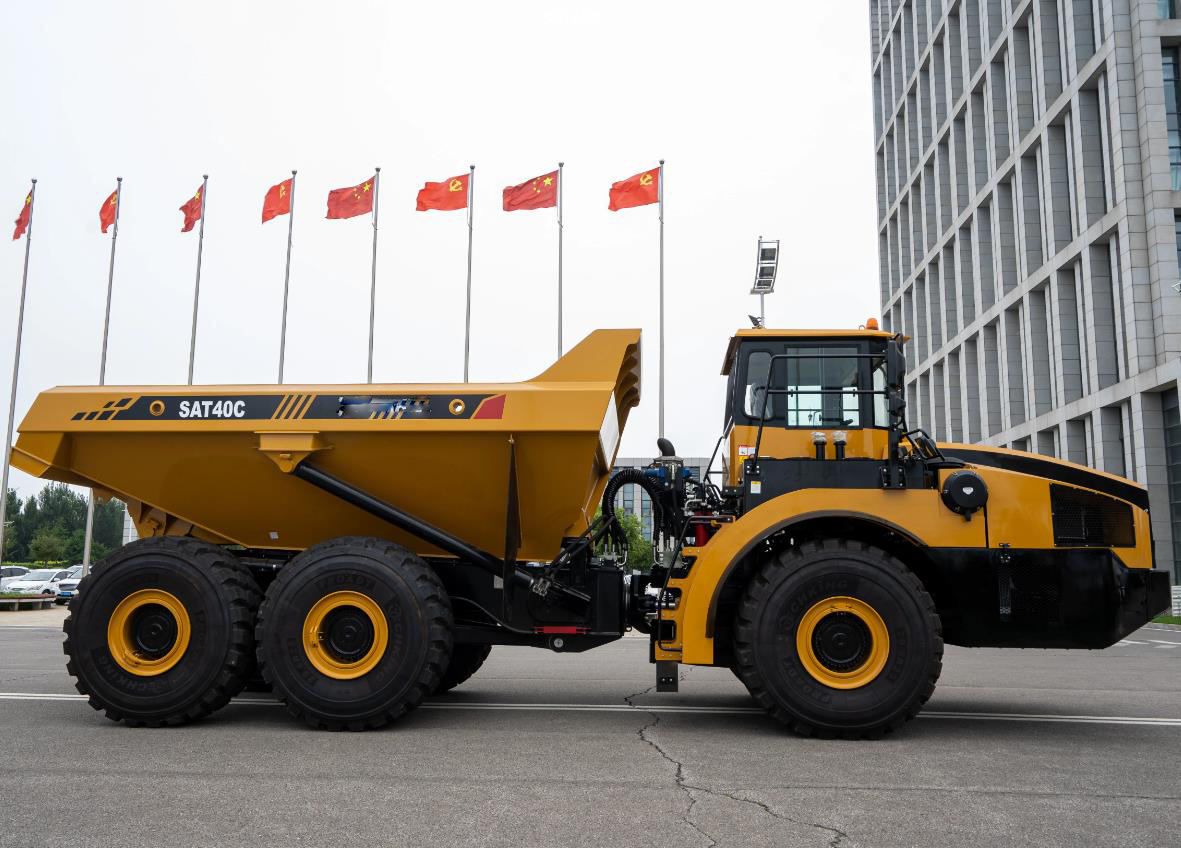

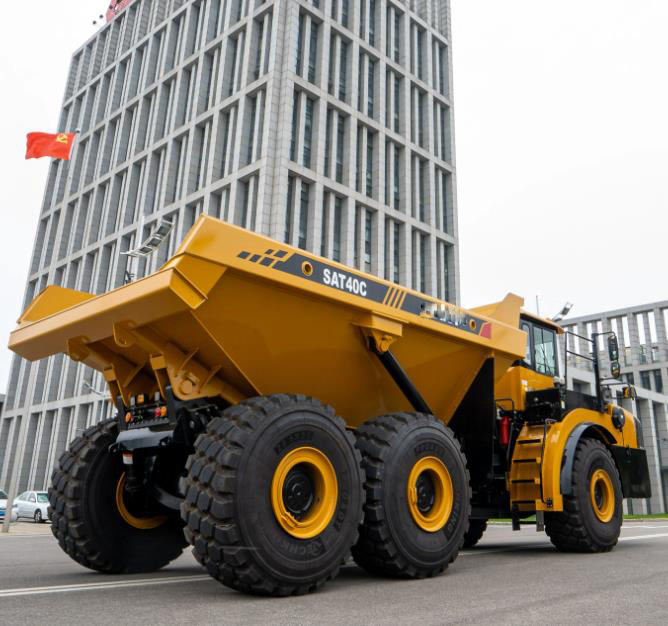

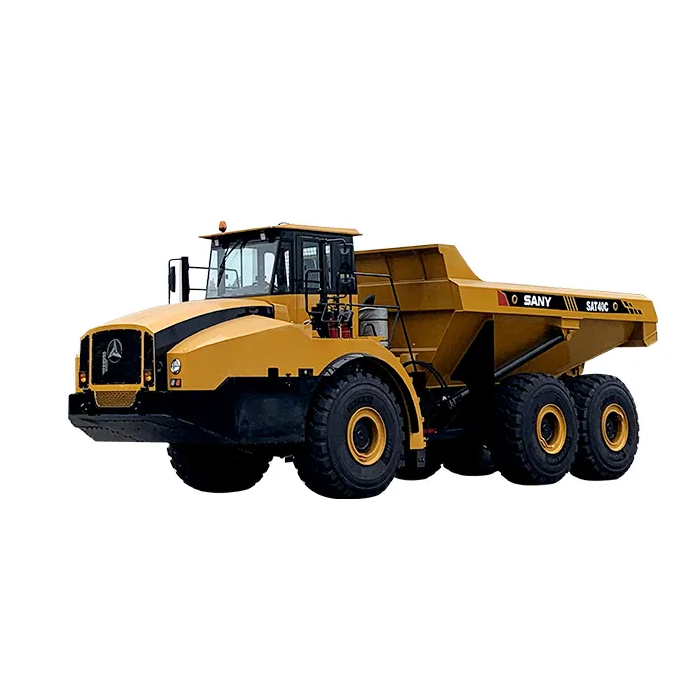

SANY SAT40C Articulated Dump Truck
The front and rear suspension of the truck is provided with the oil-gas (nitrogen) suspension cylinder characteristic of variable damping, featuring good damping effect and maintainability; thus, the road impact can be well absorbed; even in the extreme environment, the driver can still enjoy comfort during operation;
Meet FOPS/ROPS certified. Equipped with an integral four-pillar tipping protection design, adjustable cushioned seat, luxury upholstery, and tiltable and telescopic steering wheel to provide a comfortable operating space; The cab conforms to the requirements of ISO 3471. The cab provides a sound exposure Leq (equivalent sound level) of less than 78 dB(A) when tested with doors and windows closed.
Having been carefully analyzed, calculated and designed, the frame is made of high strength steel plates, of box type construction, and features light weight, good impact resistance, high bending and torsional resistance, and good durability. Casting structure can preferentially reduce stress concentration and extend the service life.
FC mining special electronic automatic transmission is adopted to realize 6 forward gears and 1 reverse gear. This type of transmission can realize automatic speed changes according to the load. The integration of hydraulic torque converter and hydraulic retarder is selected to provide the truck with the hydraulic retarding function.
Parameter
| Automatic/Manual | Automatic |
| Capacity (Struck/Heaped) | 20/25.5 m³ |
| Displacement | 12.54 L |
| Engine Model | Weichai WP13G530E310 |
| Gearbox Type | FC6A250DPR |
| Left/Right Hand Drive | Left/Right |
| Load Weight | 41 T |
| Lubrication System | Optional automatic lubrication |
| Max. Gradeability | 40 % |
| Maximum Torque | 2300 NM |
| Min. Turning Radius | 8900 mm |
| Net Weight | 34 T |
| Size | 11418*3473*4017 mm |
| Total Power | 390 kW |
| Tyre | 29.5R25 |
