Load Weight: 220T
Maximum Torque：3000 NM
Total Power ：≥2091 kW
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

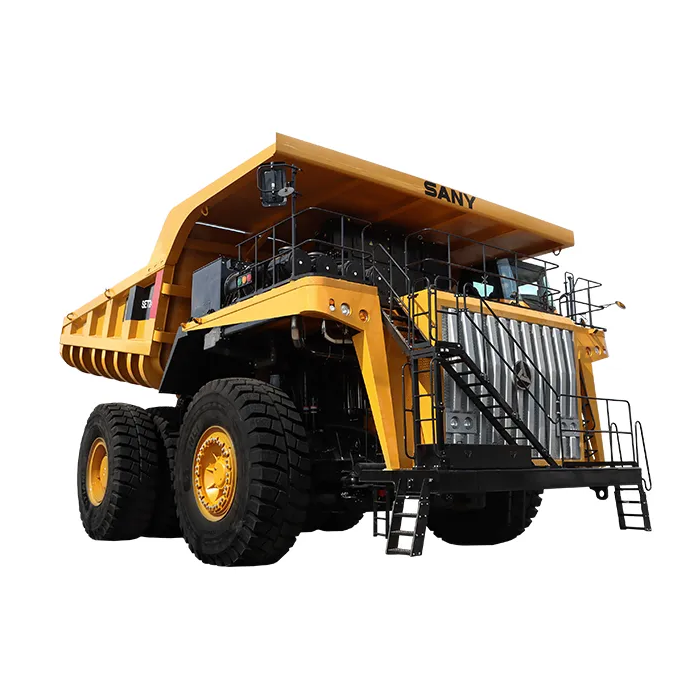

SANY SET240S Diesel Electric Mining Truck
Independent hydraulic steering with closed-center steering valve, pressure compensating piston pump and accumulator. The accumulator provides uniform steering regardless of engine speed. In the event of loss of engine power, it provides emergency power to the system for steering.
The performance of drive system depends on the gross vehicle weight, gradient and length of transport road, rolling resistance, engine power, and other parameters. The drive system can adjust to the actual working conditions to realize the optimal performance of the mining dump truck.
Parameter
| Automatic/Manual | Automatic |
| Capacity (Struck/Heaped) | 105/147 m³ |
| Displacement | 16.72 L |
| Engine Model | Weichai WP17 |
| Gearbox Type | / |
| Left/Right Hand Drive | Left/Right |
| Load Weight | 220 T |
| Lubrication System | Automatic lubrication system |
| Max. Gradeability | 30 % |
| Maximum Torque | 3000 NM |
| Min. Turning Radius | 14500 mm |
| Net Weight | 170 T |
| Size | 14900*8200*7050 mm |
| Total Power | ≥2091 kW |
| Tyre | 40.00R57 |
