View larger image
Load Weight：90T
Maximum Torque：3000 NM
Total Power ：925 kW
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

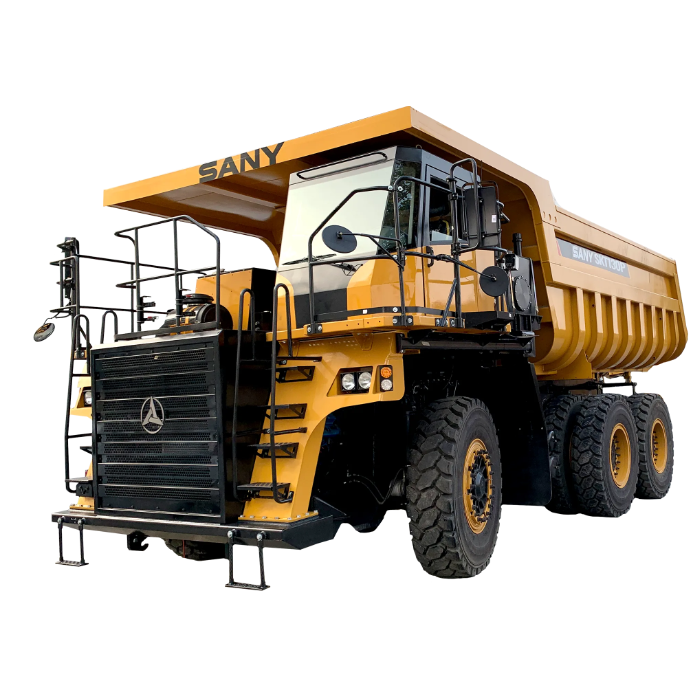

SANY SKT130S Diesel-Electric Off-Highway Mining Truck
The newly designed low-stress and high-strength frame effectively prevents the fatigue breakage of the frame and reduces the overall stress level by 51% compared with competing products.
The hydro-pneumatic suspension technology is applied to replace the traditional leaf spring structure, remarkably improve the life and comfort of the machine, thoroughly solve the frequent breakage problem of front suspension leaf springs in the industry, and promote the attendance rate of the machine. The hydro-pneumatic suspension features excellent shock-absorbing and damping performance to remarkably improve the load application of the frame and prolong the life of the frame.
Front oil and gas suspension, buffer, and vibration reduction are significantly improved; greatly reducing the impact force of the frame, cab, and other heavy parts, reduce the occurrence of various faults, and extend the life of the vehicle; thoroughly solve the fracture problem of the front plate spring.
The vehicle steering makes it easier to solve the problem of heavy mechanical steering caused by heavy trucks in the industry; equipped with emergency steering, to solve the problem of steering failure after engine flameout or steering pump failure.
– SANY intelligent control module with an electrical fault self-diagnosis system can troubleshoot some problems automatically.
– 10 “central control screen equipped with reversing camera, Bluetooth connection, compatible with intelligent mine management system. The built-in GPS module can effectively monitor the vehicle operation.
Parameter
| Automatic/Manual | Automatic |
| Capacity (Struck/Heaped) | 50/61 m³ |
| Displacement | 16.72 L |
| Engine Model | Weichai WP17G770E304 |
| Gearbox Type | / |
| Left/Right Hand Drive | Left/Right |
| Load Weight | 90 T |
| Lubrication System | Optional automatic lubrication |
| Max. Gradeability | >30 % |
| Maximum Torque | 3000 NM |
| Min. Turning Radius | 13000 mm |
| Net Weight | 54 T |
| Size | 11500×5750×4950 mm |
| Total Power | 925 kW |
| Tyre | 18.00R33 |
