Load capacity： 230kg
Load capacity of extended platform ：120kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

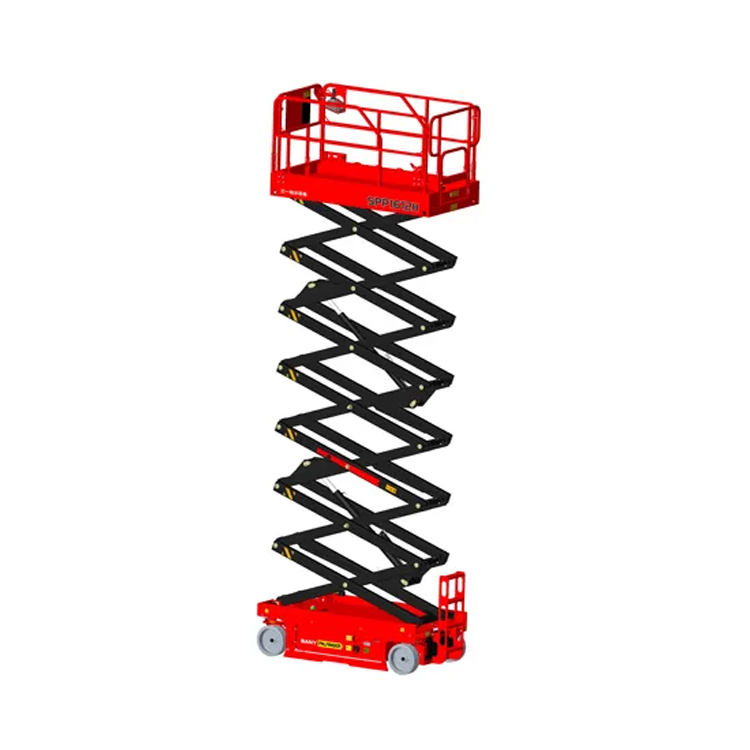

SANY SPP1612H Scissor Lift
Safety First, Efficient and Intelligent
· Lightweight design improves efficiency, stability, and endurance.
· Electric proportional walking and lifting control delivers more stable operation and more convenient maintenance.
· Excellent IoT management system enables real-time remote viewing of equipment information.
· Active safety protection system has higher reliability and more reassuring application.
Parameter
| Load capacity | 230kg |
| Load capacity of extended platform | 120kg |
| Max.Occupant Capacity | / |
| Max.Working height | 15.8m |
| Max.Platform height | / |
| Overall length（no ladder） | 2460mm |
| Overall width | 1180mm |
| Overall height（platform folded） | 1980mm |
| Working platform dimension（Length x Width） | 2260×1150mm |
| Length of extension platform | 900mm |
| Min.ground clearance（pit protector rising/descending） | / |
| Wheel base | / |
| Min.turning radius（inner/outer wheel） | / |
| Lifting motor(kW) | / |
| Max.Traveling speed at low level | / |
| Max.Traveling speed at high level | / |
| Lifting/Descending duration of platform | / |
| Max.gradeability | / |
| Max. Inclination（side/forward and backward） | / |
| Battery(v/Ah) | / |
| Charger(v/A) | / |
| Tire specification | / |
| Total machine weight | 3350kg |
