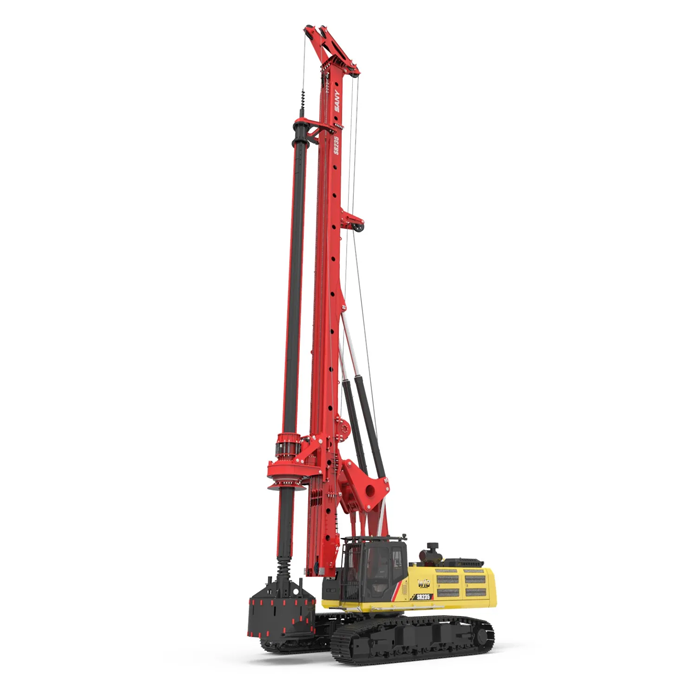

SANY SR235-W10 Rotary Drilling Rig
VS


Operating Weight:81t

Max. Pile Diameter:2000/1500mm

Max. Pile Depth:68/54 m


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

SANY SR235-W10 Rotary Drilling Rig


High Efficiency

Large core parameters such as high torque and crowd force; fast line speed of main rope to ensure high drilling efficiency in hard soil layer; it is suitable for overpass, high-speed rail, large buildings and other large hole foundation fields.

Full Stroke Crowd

Adopt a winch crowd system with long stroke, fast crowding, and rotary drive display function, suitable for all casing construction in the beach, pebble and backfill formation.

Economical and Energy-saving

Power optimization control technology is adopted to distribute power in real-time with the smooth and fast response of composite action; moreover, it has high fuel efficiency and low comprehensive fuel consumption.

Step Drum

Adopt step drum structure with a single layer to realize no crushing, no wear, and increase the service life of wire rope by 35%.

Intelligent Upgrade

HD touch screen, 3ms refresh frequency, smooth animation display.

Convenience

The rotary drive key bar is exposed for easy service and replacement; the main winching wire rope is fixed by a wedge, which is easy to disassemble and assemble. Some lubrication points are exposed for easy service.

Parameter

--Main Winch
Lifting Capacity270 kN
Max. Line Speed70 m/min
Rope Diameter20 mm
--Main Chassis
Base EngineISUZU 6UZ1
Engine Power257/2000 kW/rpm
Emission RegulationTier III
--Crowd System
Crowd Force210 kN
Stroke15000 mm
Line Pull270 kN
--Pile
Max. Pile Diameter2000/1500 mm
Max. Pile Depth68/54 m
--Rotary Drive
Rated Speed5~27 rpm
Rated Output Torque235 kN·m
--Overall Machine
Overall Height22870 mm
Operating Weight81 T
Transport Width3540 mm
Transport Height3575 mm
