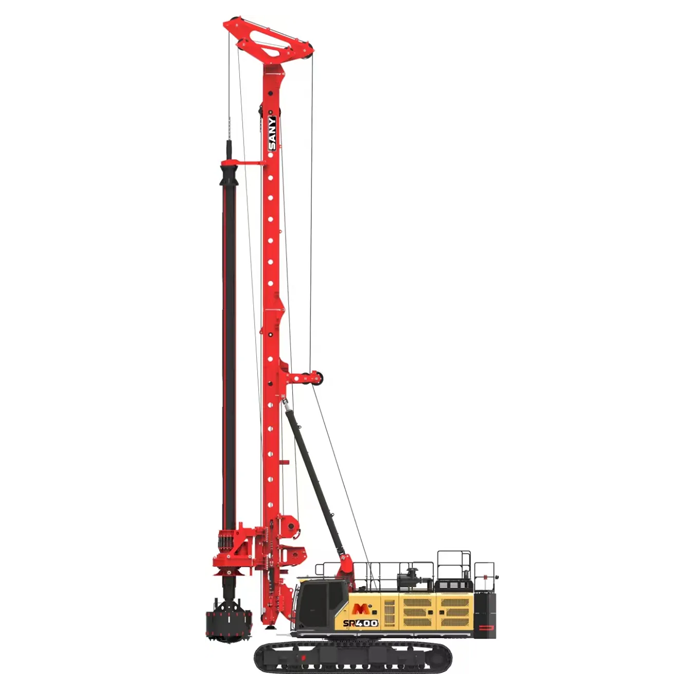

SANY SR400MV Rotary Drilling Rig
VS


Operating Weight:137t

Max. Pile Diameter:2500mm

Max. Pile Depth:106/69 m


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

SANY SR400MV Rotary Drilling Rig


Efficient and Flexible

They are widely used in civil engineering in small dia. and deep borehole construction, high main hoist lifting up and down speed, tall verticality of the finished boreholes, and high working efficiency in civil construction.

Special Chassis

Telescopic large widening chassis designed for rotary drilling rig, roller type large diameter slewing bearing to guarantee the high stability in deep borehole construction.

Economical and Energy-saving

Imported large-displacement EFI engine with solid power, adopts power optimization control technology, adjusts power distribution in real time, fast response speed, higher fuel efficiency, and more energy-saving.

High Reliability

The mast adopts a box structure with solid resistance to torsion and fatigue; the sixth-generation Kelly bar adopts upgraded material and strengthened block ring; the overall strength increased by 25% with high drilling ability in the strongly weathered rock layer.

Intelligent Upgrade

10-inch HD touch screen, fast response, and more convenient operation.

Parameter

--Main Winch
Lifting Capacity400 kN
Max. Line Speed75 m/min
Rope Diameter36 mm
--Main Chassis
Base EngineCummins X15
Engine Power391/1800 kW/rpm
Emission RegulationStage V/Tier4 final
--Crowd System
Crowd Force405 kN
Stroke9000/19000 mm
Line Pull405 kN
--Pile
Max. Pile Diameter2500 mm
Max. Pile Depth106/69 m
--Rotary Drive
Rated Speed7~26 rpm
Rated Output Torque400 kN·m
--Overall Machine
Overall Height27430 mm
Operating Weight137 T
Transport Width3600 mm
Transport Height3380 mm
