Operating Weight:178t
Max. Pile Diameter:3000mm
Max. Pile Depth:116/95 m
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

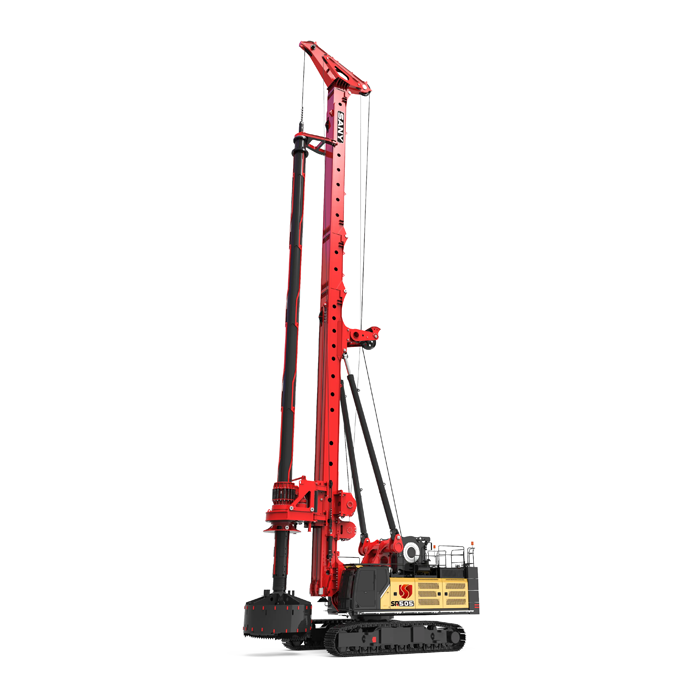

SANY SR505-S Rotary Drilling Rig
Efficient and Flexible
They are widely used in civil engineering in small dia. and deep borehole construction, high main hoist lifting up and down speed, tall verticality of the finished boreholes, and high working efficiency in civil construction.
Special Chassis
Telescopic large widening chassis designed for rotary drilling rig, roller type large diameter slewing bearing to guarantee the high stability in deep borehole construction.
Economical and Energy-saving
Imported large-displacement EFI engine with solid power, adopts power optimization control technology, adjusts power distribution in real time, fast response speed, higher fuel efficiency, and more energy-saving.
High Reliability
The mast adopts a box structure with solid resistance to torsion and fatigue; the sixth-generation Kelly bar adopts upgraded material and strengthened block ring; the overall strength increased by 25% with high drilling ability in the strongly weathered rock layer.
Intelligent Upgrade
10-inch HD touch screen, fast response, and more convenient operation.
Parameter
--Main Winch | |
Lifting Capacity | 560 kN |
Max. Line Speed | 60 m/min |
Rope Diameter | 40 mm |
--Main Chassis | |
Base Engine | VOLVO TAD1385VE |
Engine Power | 405/1900 kW/rpm |
Emission Regulation | Stage V/Tier4 final |
--Crowd System | |
Crowd Force | 420 kN |
Stroke | 10000/21000 mm |
Line Pull | 420 kN |
--Pile | |
Max. Pile Diameter | 3000 mm |
Max. Pile Depth | 116/95 m |
--Rotary Drive | |
Rated Speed | 5~22 rpm |
Rated Output Torque | 505 kN·m |
--Overall Machine | |
Overall Height | 30740 mm |
Operating Weight | 178 T |
Transport Width | 3600 mm |
Transport Height | 3805 mm |
