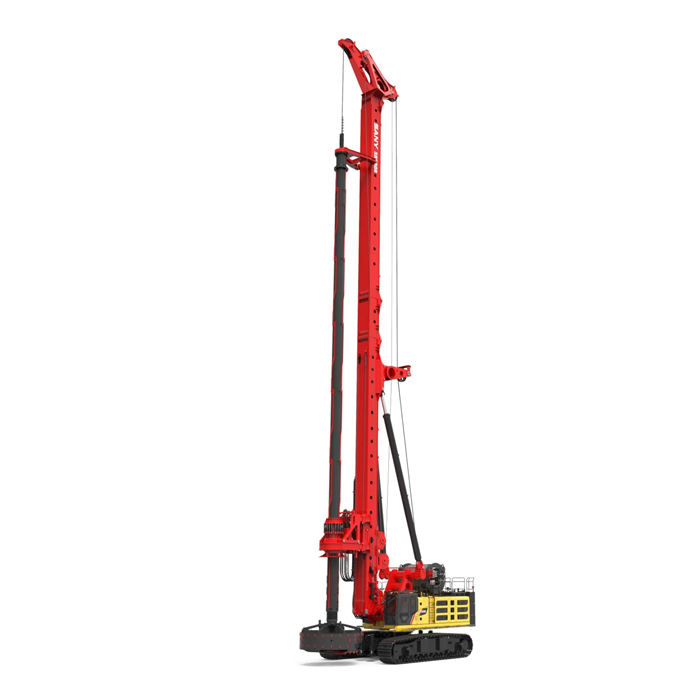

SANY SR580R-H11 Rotary Drilling Rig
VS


Operating Weight:230t

Max. Pile Diameter:3500/4000mm

Max. Pile Depth:150/125/100 m


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

SANY SR580R-H11 Rotary Drilling Rig


Large Construction Capacity

Expert in construction of large diameter and 100m deep borehole; main winch with large lifting force to ensure stable operation.

Strong Rock Drilling Ability

The heaviest model of the same level ensures large crowding force; equipped with heavy duty, impact resistance reducer to realize stable torque output; excellent drilling ability in hard rock layers more than 60MPa.

High Reliability

The structural parts adopt impact, fatigue resistance technology in rock drilling, single layer wire rope winding for interlocking Kelly bar; free of mutual extrusion and wear in wire rope layers to increase service life by 35%.

Economy and Energy Saving

Adopt power optimization control technology to realize power distribution in real-time, with excellent compound action response time. High fuel efficiency and low comprehensive fuel consumption, fuel consumption reduced by 10%~15%.

Intelligent Upgrade

1) HD touch screen, 3ms refresh frequency, smooth animation display.

2) SANY patented locking device visualization technology can accurately display the process of locking and unlocking, reduce wear and Kelly bar accidents.

Convenience

The external driving key of rotary drive facilitates maintenance and replacement; the main winch wire rope end is fixed by wedge easy to disassemble and assemble. The special lubrication point connected with outlet hose to facilitate butter injection.

Safe and Secure

360° full-field monitoring, sound and light alarm.

Parameter

--Main Winch
Lifting Capacity550 kN
Max. Line Speed54 m/min
Rope Diameter50 mm
--Main Chassis
Base EngineCAT C18
Engine Power470/1800 kW/rpm
Emission RegulationTier III
--Crowd System
Crowd Force460 kN
Stroke11500 mm
Line Pull550 kN
--Pile
Max. Pile Diameter3500/4000 mm
Max. Pile Depth150/125/100 m
--Rotary Drive
Rated Speed6~38 rpm
Rated Output Torque580 kN·m
--Overall Machine
Overall Height37860 mm
Operating Weight230 T
Transport Width3900 mm
Transport Height3640 mm
