View larger image
Length of Blade：3660 (12ft) mm
Operating Weight： 13000kg
Rated Power ：112 kW
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

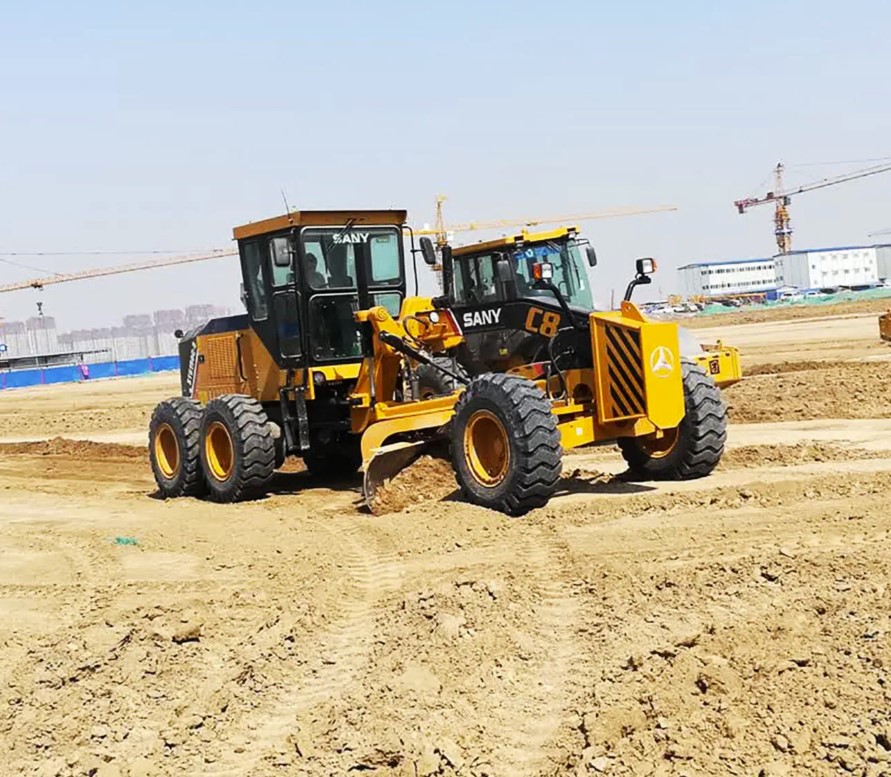

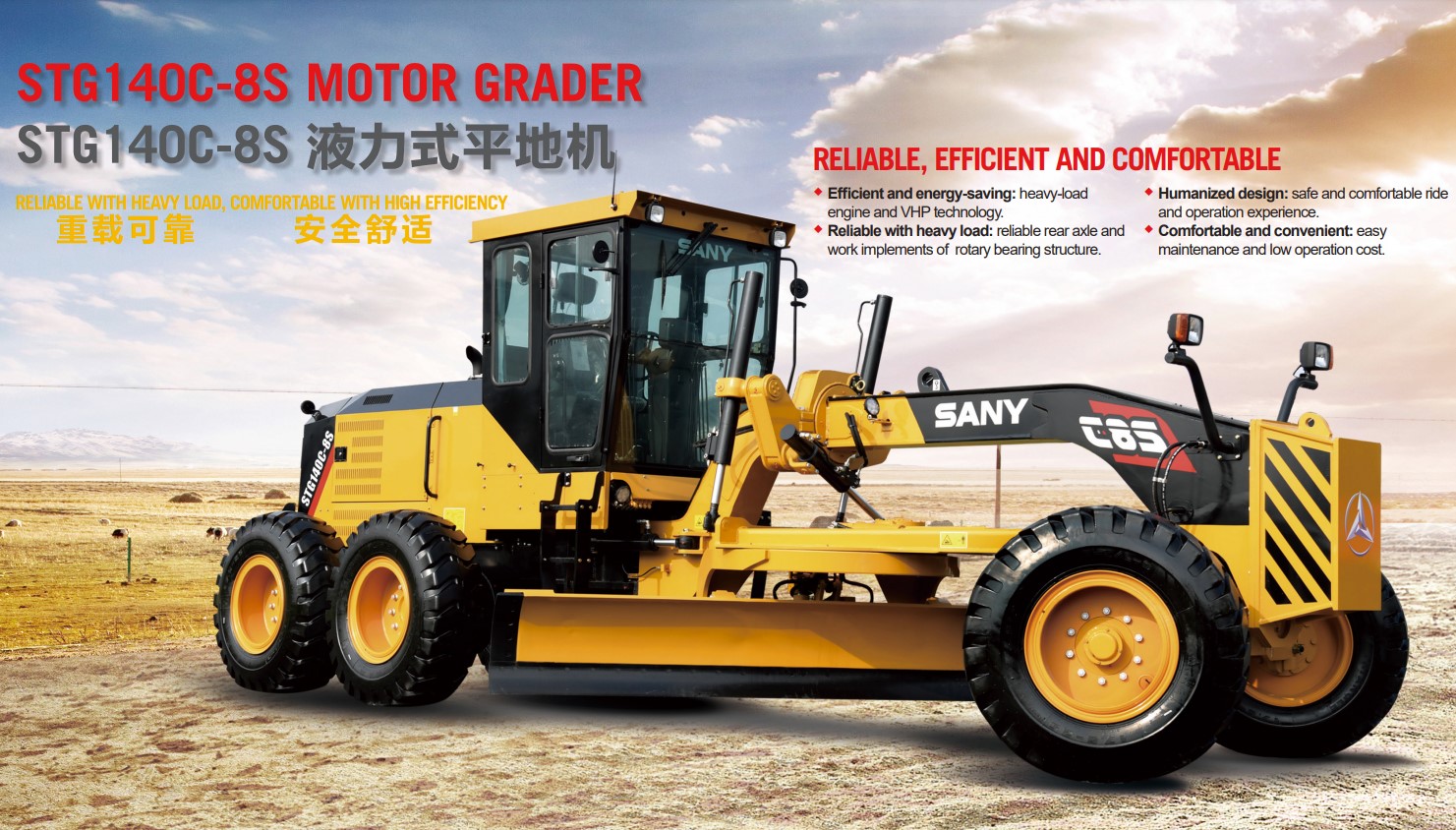

SANY STG140C-8S Motor Grader
· WEICHAI/SANY high-power and heavy-load engine is strong and powerful.
· VHP technology can adapt to different work conditions, such as light load, middle load and heavy load, with different power curves, so that the machine can always work within the minimum fuel consumption range.
· Work implements adopt fully-sealed rotary bearing structure, which provides easy maintenance, high operation accuracy, low cost, and service life longer than 10000h.
· Rear axle adopts rotary bearing structure instead of conventional copper sleeve structure, which provides easy maintenance, high operation accuracy and service life longer than 10000h.
· 4-front and 2-rear disc-type brake is safer than drum brake with less braking distance and maintenance cost.
· High-end SYCD liquid crystal display has operation instructions in multiple languages.
· Engine hood with wide opening provides large maintenance space and is easy to access for daily maintenance.
· Centralized arrangement of common electrical elements is more convenient for inspection and maintenance.
·Automatic fault diagnosis and maintenance tips, automatic monitoring of work conditions of engine and transmission.
·Fuel tank of super-large capacity is located at the rear of frame, which is convenient for fuel filling.
· Various filter elements and wearing parts, as well as 27 high-quality maintenance tools are provided along with the machine.
· ROPS/FOPS safe cab is equipped with high-grade interior, air conditioner with cooling and heating functions, fan, radio, sound system, cup holder, and cigar lighter (the same as USB interface in car).
· It also has horizontal sliding window, sun visors, curtains, radio, double rear view mirrors, and mechanical suspension seat with head rest.
· With LED lamps arranged at multiple positions, the operator has better vision at night.
Parameter
| Engine | Cummins 6BTA5.9-C150-II |
| Rated power/speed | 112kw |
| Forward velocity | 5/8/12/19/28/41km/h |
| Reverse speed | 5/12/28 km/h |
| Tractive effort | / |
| Minimum turning radius | 7.2m |
| Length X chord height | 3660×620mm |
| Overall dimension（standard） | 8765×2460×3310mm |
| Total weight（standard） | 13000kg |
