Feature

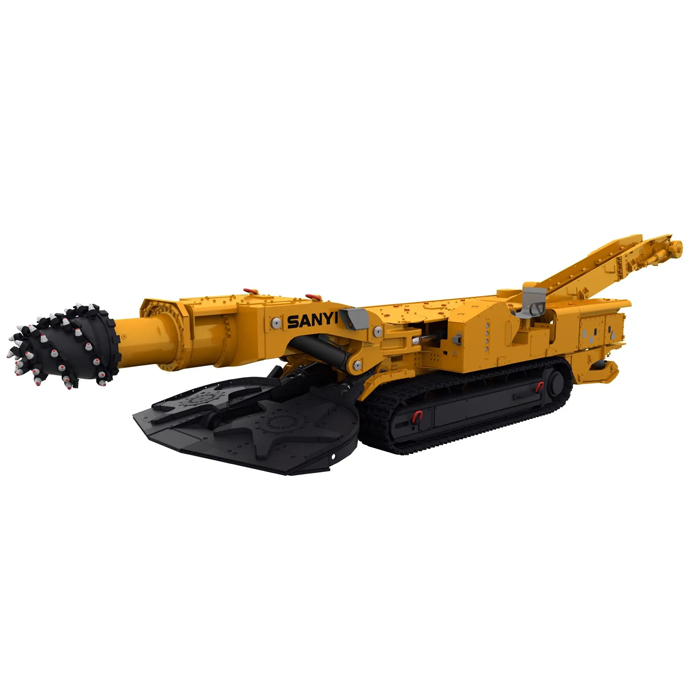

SANY STR260/5 Coal/Rock Seam Roadheader
· The velocity of the cutting line matches well with the rock by the higher single-cutting capacity of cutting teeth. The arrangement of cutting teeth has reached the world-leading level with its strong rock-breaking ability, high cutting efficiency, and low cutting teeth consumption rate.
· The first-level transport and shovel board are driven by motors of international famous brands, with large driving force and strong transportation endurance. The shovel board is equipped with a special anti-seize device to effectively avoid the jamming phenomenon of the transport aircraft. High-strength wear-resistant plates are used in many places.
· Adopting the advanced hydraulic technology of construction machinery, it pioneered the hydraulic load-sensitive variable pump system in the roadheader industry, which has the characteristics of small calorific value, high efficiency and stable operation.
· According to the fault statistical analysis of several roadheaders, the expert diagnosis technique is obtained.
· The controller collects the working status of the roadheader in real-time and displays the working status in real-time. Once a fault occurs, it will display the current fault and troubleshooting methods through the expert diagnosis system for the operator to know.
· Through field observation and measurement, the blind spot area accounts for 22.2% of the surface. The roadheader is operated by remote control and has a good operating field, which can reduce the operating blind area and the over-cut section.
Parameter
| Cutting Motor Power | 260 kW |
| Height | 3.1 m |
| Height of Roadway | 3.3-5.1 m |
| Length | 14.8 m |
| Service Voltage | 1140 V |
| Specified Output Power | 132 kW |
| Total Power | 467 kW |
| Walking Speed | 0-6.5 m/Min |
| Water Supply Pressure | 3-8 MPa |
| Whole Weight | 80 T |
| Width | 3.6 m |
| Width of Crawler Wheel | 2.62 m |
| Width of Roadway | 3.6-6.3 m |
| Working Conditions | Coal/Semi-coal/Rock Seam |
