View larger image
Bucket Load：4.5m³
Rated Load：6800kg
Rated Power：225kw
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

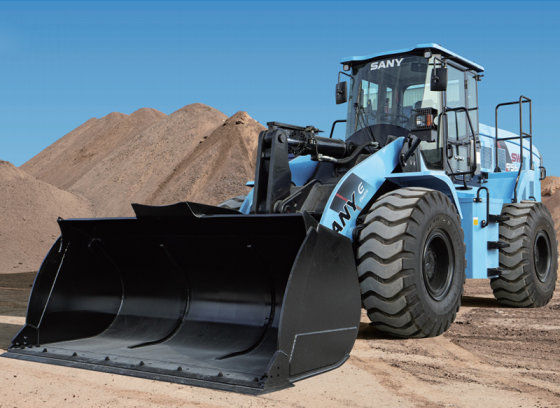

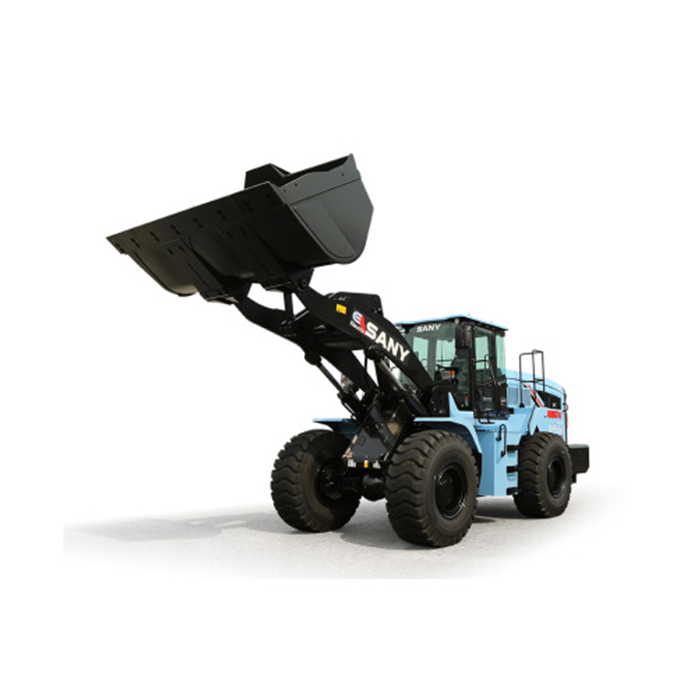

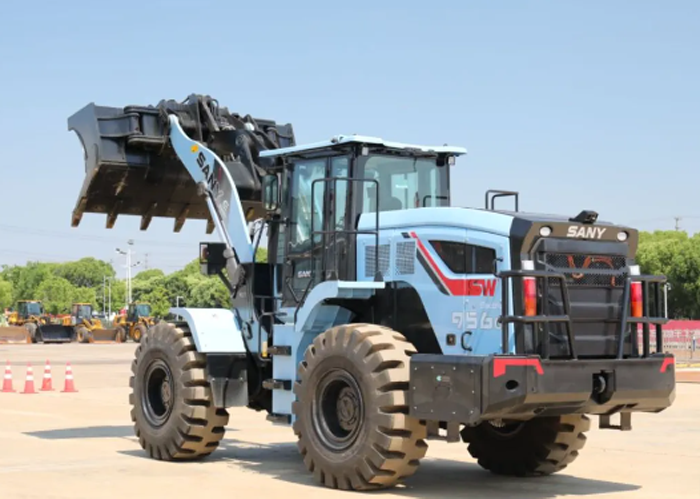

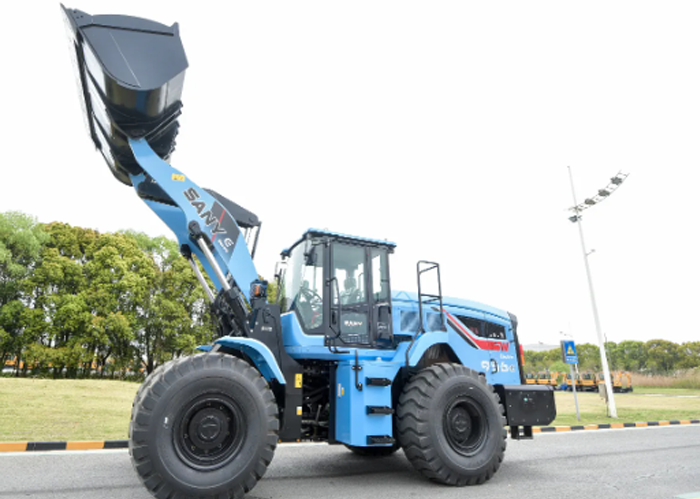

SANY SW966E Wheel Loader· Braking System: Dual-pipe complete hydraulic service braking system, sensitive response, and low failure rate.
· Axles： a heavy-duty drive axle with strong bearing capacity and low failure rate.
· Frame: High-strength frame; double tapered roller bearings at the hinges.
· Battery Safety: Reasonable layout; in line with the safety requirements of the standard GB38031; when exceptional circumstances such as collision and extrusion occur, the battery components will not have the danger of shell rupture, fire, or explosion, ensuring the safety of the driver’s life.
· Online Monitoring: Big data multiple early warnings, fault prediction; client app pushes real-time information to ensure people’s and equipment’s safety.
· High-power permanent magnet synchronous motor, fast dynamic response.
· Two-speed gearbox, higher transmission efficiency.
· Integrated FNR function pilot joystick, smooth and fast shifting.
· Using silicone oil mounting technology, the vibration frequency of the cab is reduced to 1Hz.
· The vibration of the electric drivetrain system is reduced by 30% compared with the fuel loader.
· The seat design adopted an ergonomic, more comfortable, and convenient design.
· High-power dual-purpose air conditioner reduces heating and cooling time by 30%.
Parameter
| Bucket Load | 4.5m³ |
| Rated Load | 6800Kg |
| Rated Power | 225Kw |
| Operating Weight | 23200Kg |
| Max. Breakout | 210KN |
| Overall dimension（LxWxH） | 9200×3040×3500mm |
