Model of Chassis：MAN TGM
Liquid Filling Volume：4100 L
Pump Maximum Flow：Hill Foamlogix 3.3/12.5L/min
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

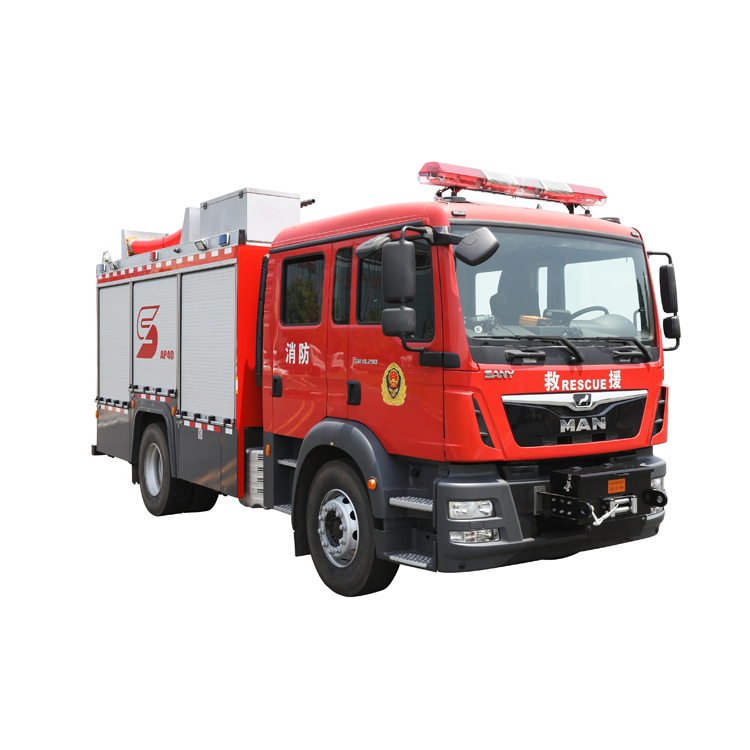

SANY SYM5170GXFAP40 CAFS Fire Truck
High Mobility
With the original German chassis, the vehicle length is 8m and the minimum turning radius is 7m, featuring high mobility, light weight and flexible operation.
Intelligent Operation
The rear control panel displays liquid level, flow rate, pressure, and other information for easy operation and observation.
Fast Response
One-key fully stretching for 50 seconds, supporting legs deployed in situ, no worries, and time-saving.
Double Cab with More Passengers
The cab is equipped with 4 air breathing apparatus brackets and can carry up to 6 passengers, improving operational efficiency.
Multi-function
In addition to Class A & B foam, it can also carry various rescue equipment for investigation, demolition, life-saving, plugging and smoke exhaust, etc.
Parameter
| Engine Net Power | 2200rpm，213KW |
| Engine Type | MAN D0836LFLAL |
| Model of Chassis | MAN TGM |
| Max. Speed | >95 km/h |
| Min. Turning Diameter | 13.9 m |
| Ground Clearance | 7.5 m |
| Power/Lamp Source | 2*1000w |
| Adjustment Range of Foam Mixing Ratio | 0.1%-10% |
| Liquid Filling Volume | 4100 L |
| Max. Range of Monitor | Water DC range 60m/Foam DC range 40m |
| Monitor Mode/Rate Flow | Akron 3482+2499/2500L/min L/min |
| Pump Maximum Flow | Hill Foamlogix 3.3/12.5L/min |
| Pump Rated Flow | Hill, 1.0Mpa, 50FB-U/60L/s |
| Rated Flow of Air Compressor | 56 L/s |
| Rated Power | 5.6 kw |
| Starting Mode | Manual/electric start |
| Curb Weight | 11950 kg |
| Max. Total Weight | 16500 kg |
| Overall Dimensions | 8.04*2.5*3.56 m |
| Automatic Protection | Overload protection |
| Mode/Traction | Champion Edition N12000XF/5400KG |
