View larger image
Max. Working Height/Working Amplitude：41m
Rated Flow of Pump：6000LPM L/s
Model of Chassis：Actros 3341E5
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

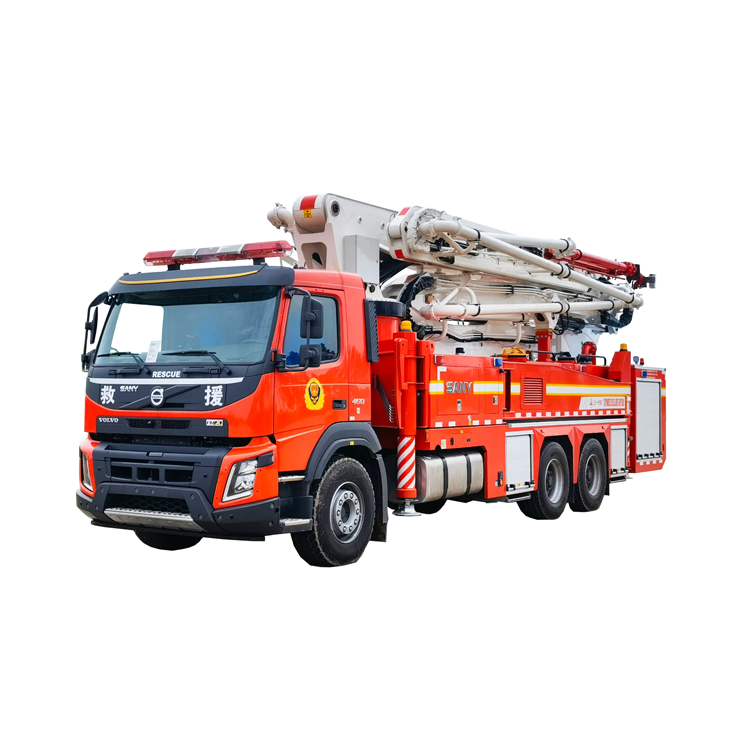

SANY SYM5330JXFJP41 Long Span Water Tower Fire Truck
Long-Span Working Area
Six-section folded boom structure makes fire truck work with a large span and has a strong ability to cross barriers while realizing accurate fire extinguishing.
Small Supporting Coverage
Four support legs can support in any position, suitable for wide site condition
Interlocking Operating
Water pumping can realize interlocking operations with boom adjusting, more efficiency, and saving rescue time.
Remote Control and Video Monitoring
Remote control and video monitoring systems make easy and safe control.
Parameter
| Max. Working Height/Working Amplitude | 41 m |
| Max. Downward Working Depth | 18m |
| Max. Working Amplitude in Case of 3.3m | 22.5m |
| Unfolding Time of Boom | 140s |
| Slewing Angle | ±360° |
| Slewing Time | 200s |
| Overall Dimensions | 11.64*2.5*4.0 m |
| Max. Total Weight | 33000 kg |
| Max. Unfolding Span | 7.3*7.3m |
| Action Time of Support Leg | 40s |
| Model of Fire Control Pump | Hale CB10/100-RSD |
| Rated Flow of Pump | 6000LPM L/s |
| Rated Working Flow of Whole Vehicle | 4200LPM |
| Model of Fire Control Gun | Akron 3482 |
| Max. Jetting Range of Water Gun | 80m(water)/70m(foam) |
| Scope of Left & Right Swing Angles of Fire Control Gun | -45°~45° |
| Allowable Working Pressure of Pipeline | 2.5Mpa |
| Model of Chassis | Actros 3341E5 |
| Engine Power | 320kw@1800rpm |
| Tail Gas Emission Standard | EUR V |
| Manipulation Mode | Spot Control+Wire&wireless Control |
| Emergency Retraction Power | Gasoline Engine |
