Feature

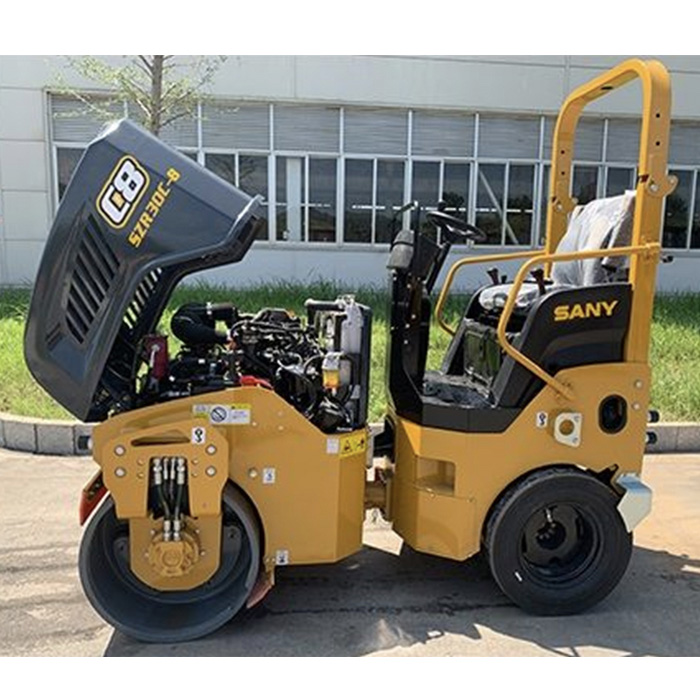

SANY SZR30C-8 Tandem Roller
Wear-resistant steel wheels with long service life
The reinforced structure of the end of the steel wheel has strong wear-resisting ability when compaction is close to the edge, and the rigidity of the wheel rim is good;
High excitation force, high compaction efficiency
The vibration frequency is 55/67Hz, the excitation force is 46/28KN, the excitation force and the striking efficiency per unit time are higher than the industry standard;
Convenient edge compaction, compact and flexible
Rear wheel double motor middle support structure, no outer fork foot, convenient to stick to the edge; stick to the edge of the compaction field of vision is good, the driver can clearly see the edge of the steel wheel.
Parameter
| Operating weight | 2900Kg |
| Axle load, front | / |
| Axle load, rear | / |
| Static linear load | 115N/cm,122N/cm |
| Engine manufacturer | YANMAR |
| Engine Model | 3TNV88-BDLDW |
| Rated Power | / |
| Speed range (1)(2)(3) | 0~6/0~11 |
| Vibration frequency | 55/67Hz |
| Vibration amplitude | / |
| Centrifugal force | / |
| Working width | / |
| Max. gradeability | 40% |
| Track radius, out | 2700mm |
| Overall dimensions | 2475×1280×2560mm |
