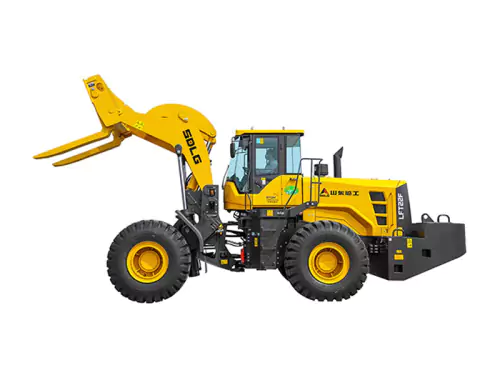

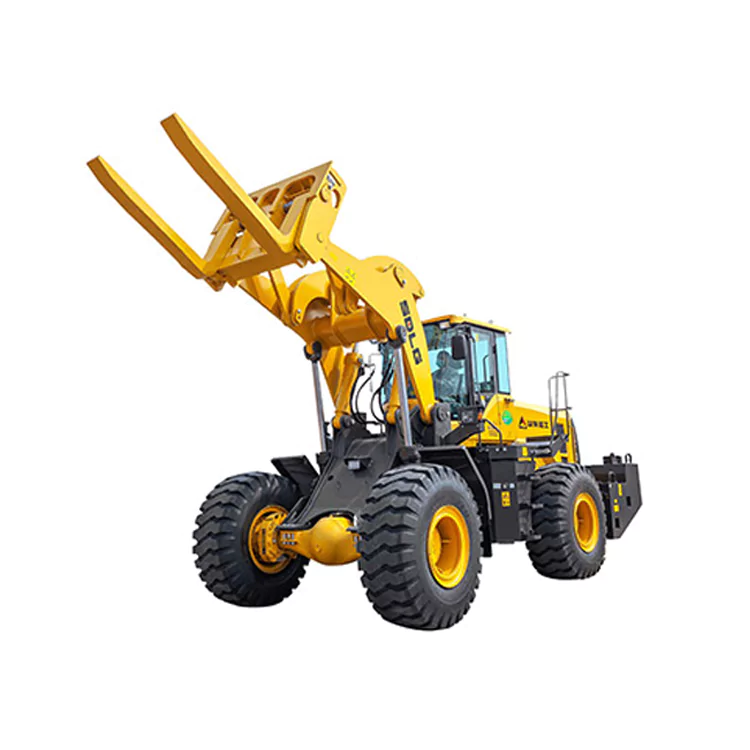

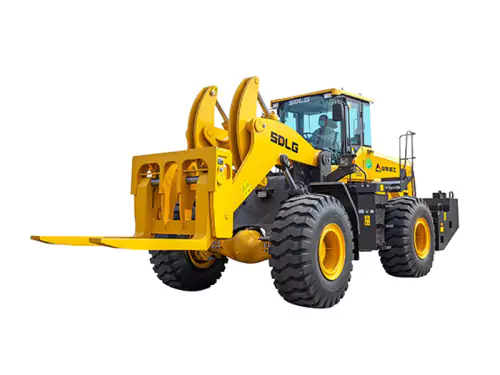

SDLG LFT30F Telehandler
VS


Max.lift capacity:30000kg

Lifting height: /

Rated Power:178Kw


Delivery Time:

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

SDLG LFT30F Telehandler


1. Engine: Equipped with a low-speed, high-torque electronically controlled three-stage emission engine, supercharged, intercooled, powerful and reliable;

2. Gearbox: Equipped with a VRT200 fixed-axis electro-hydraulic shift gearbox, four front and four rear, with high transmission efficiency, stable operation, smooth shifting and high reliability;

3. Drive axle: The rear axle adopts a swing-type drive axle maintenance-free design, with high strength, good reliability, convenient maintenance, and more suitable for heavy-duty operations;

4. Tires: The front axle tires are 28-ply and the rear axle tires are 24-ply. Reinforced rims are used to improve overall strength and prevent deformation under heavy loads, so that the tires have good load-bearing capacity and a long service life;

5. Counterweight: The whole machine has an extended wheelbase design (4050mm) and adopts an integrated large counterweight (10 Tons), good operation stability;

6. Working device: adopts positive six-link mechanism and vertical boom cylinder, specially designed for forklift loader mining, with strong ground digging force, good lifting and translation, large lifting force, and large unloading angle; through finite element analysis optimization, it has large bearing capacity and balanced force;

Parameter

Max.lift Capacity30000Kg
Lifting Height/
Rated Power178Kw
Operating Weight32000kg
Max.traction(without load)235kN
Overall dimension(LxWxH)9420×3060×3460mm
Fork length/
