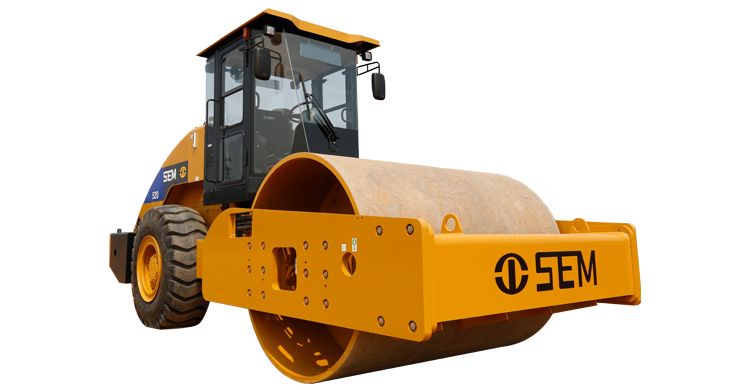

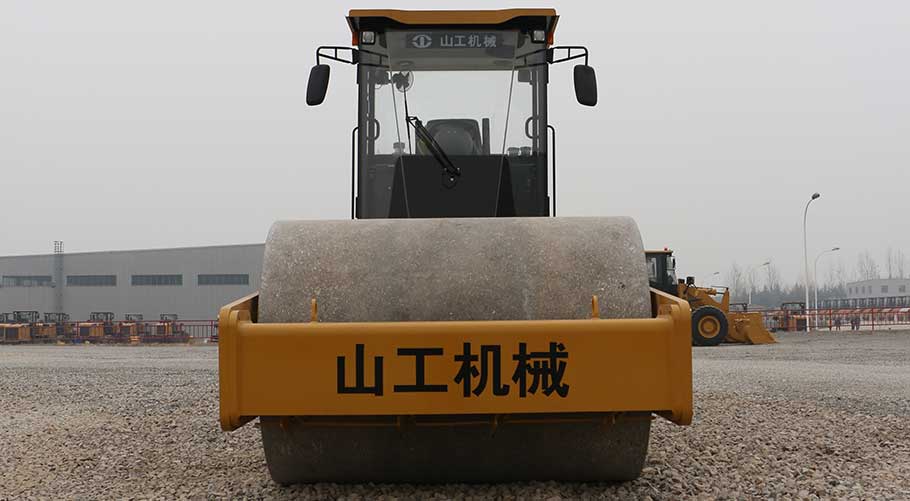

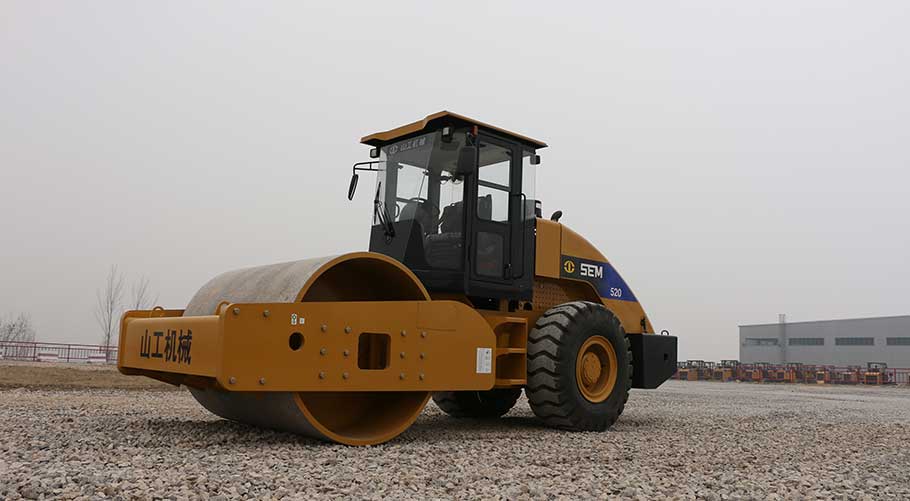

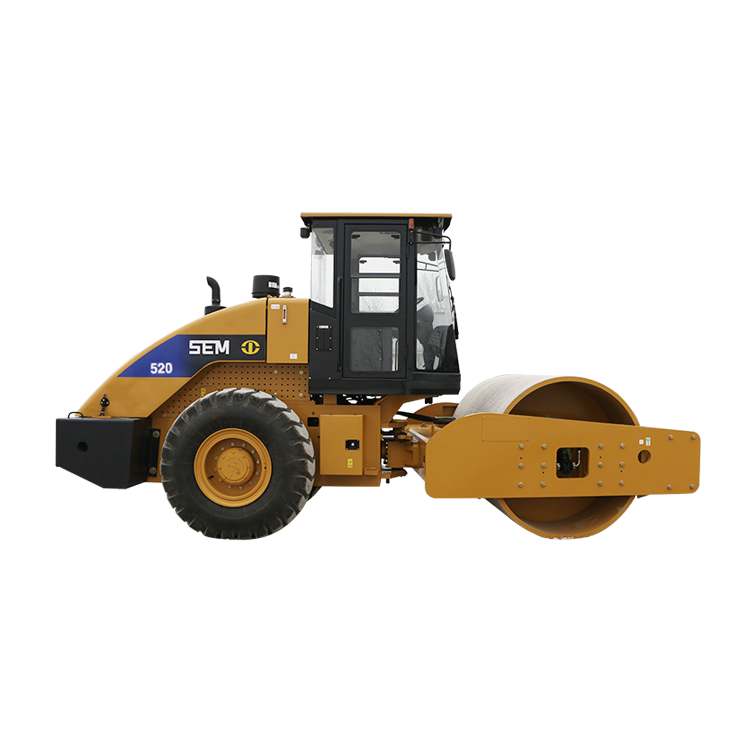

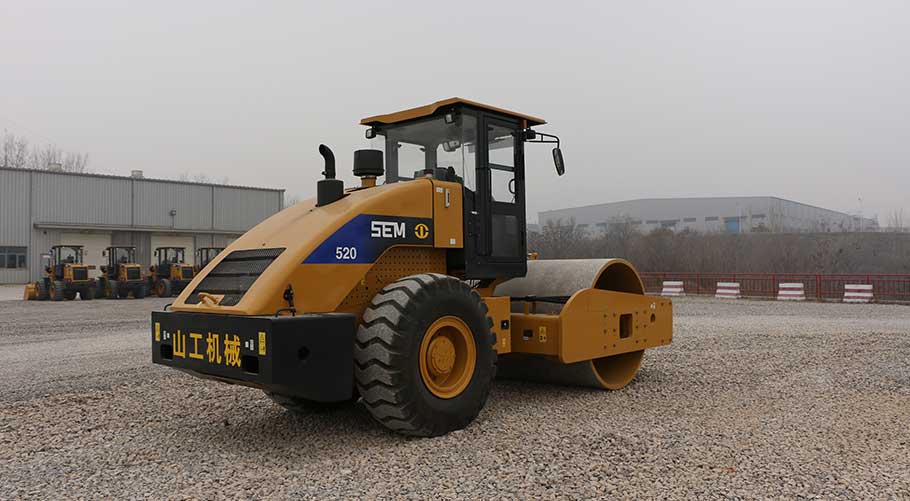

SEM 520 Single Drum Rollers & Soil Compactors
VS


Engine Model:/
Operating Weight: 20000Kg
Axle Load Front:/

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

SEM 520 Single Drum Rollers & Soil Compactors


Vibe Pod Design

  • Eccentric vibe pod design, extends system life by 50%
  • Steel shot moving inside closed eccentric block, stable and reliable vibe amplitude, reduces impact to motor, prolongs maintenance period of vibratory system
  • Completely sealed eccentric gear eliminates contamination, prolongs bearing life
  • SEM520 are equipped with a 50 mm thick drum compared to competitors with a 40 mm thick drum, provides increased compaction performance versus the competition

Parameter

Operating weight20000Kg
Axle load, front/
Axle load, rear/
Static linear load461N/cm
Engine manufacturer/
Engine Model/
Rated Power129Kw
Speed range(Forward)Speed (1)(2)(3)(4)0-2.98/0-5.88/0-9.6km/h
Speed range(Backward)Speed (1)(2)(3)0-2.98/0-5.88/0-9.6km/h
Vibration frequency30/28Hz
Vibration amplitude/
Centrifugal force360/208kN
Working width2130mm
Max. gradeability34%
Track radius, out/
Overall dimensions/
