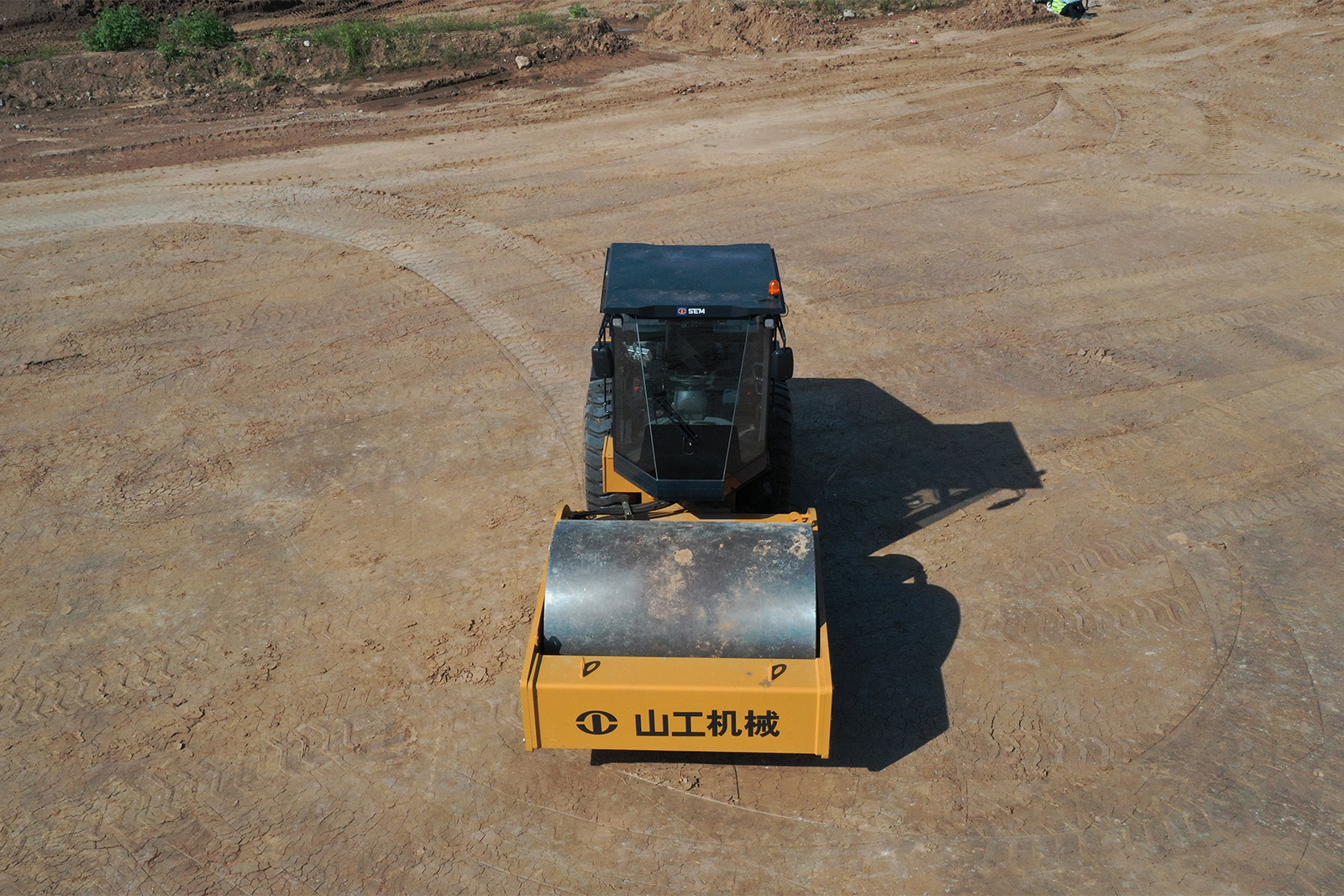

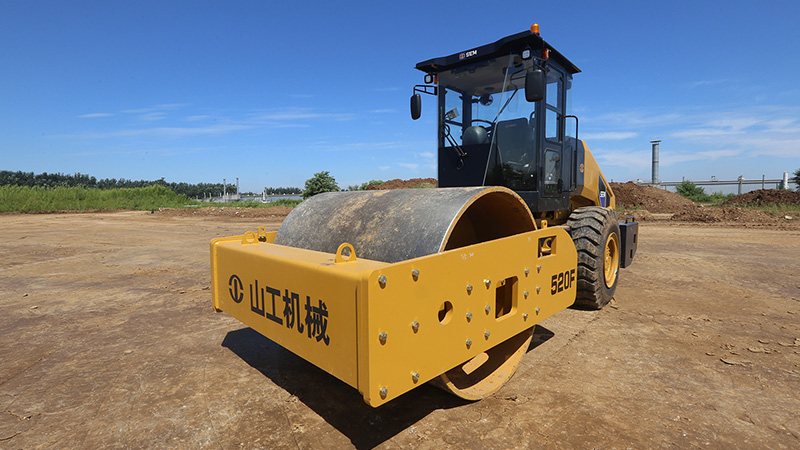

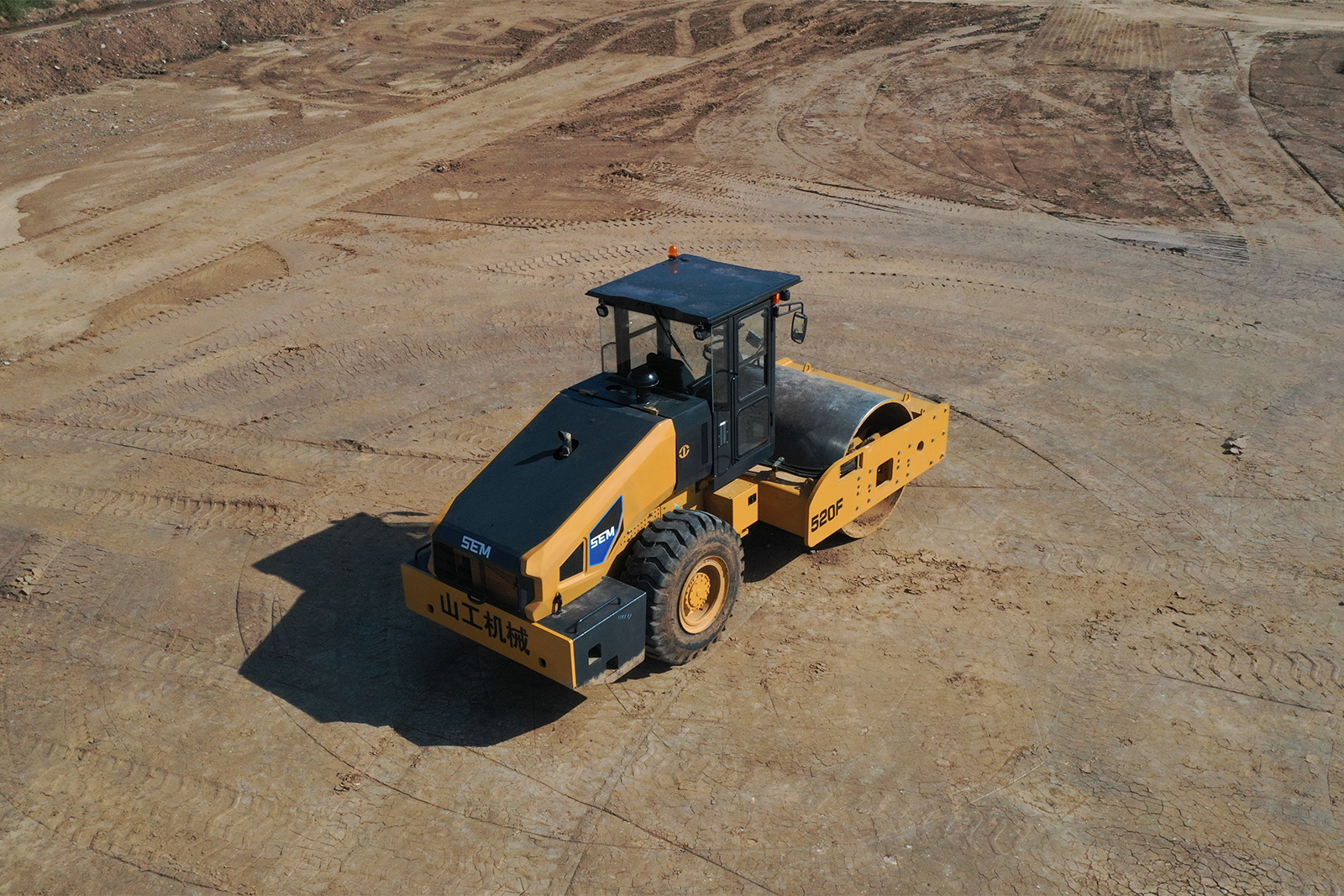

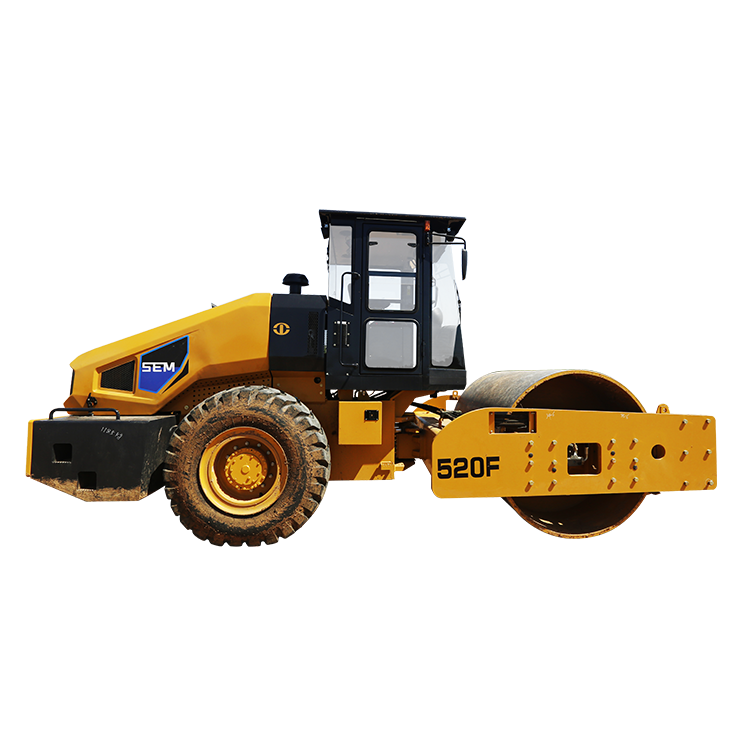

SEM 520F Single Drum Rollers & Soil Compactors
VS


Engine Model:/
Operating Weight: 20000Kg
Axle Load Front:10000Kg

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

SEM 520F Single Drum Rollers & Soil Compactors


More efficient

  • Shanghai Diesel engines meet the national non-road National IV emission requirements, with lower fuel consumption, stronger power, energy saving and environmental protection
  • Caterpillar pod-type vibration system, by adjusting the center of gravity of the sealing active steel ball to achieve amplitude adjustment, no impact vibration structure, smooth vibration start, smooth amplitude switching, flexible vibration start, compacted road surface is smoother
  • Dual amplitude and dual frequency vibration system is fully optimized and upgraded, increasing frequency and exciting force, compaction efficiency is more outstanding
  • The whole series adopts hydrostatic transmission, stepless speed change, soft and smooth transmission, no impact when starting, combined with pod-type vibration structure, can improve compaction effect
  • Optional configurations such as density meter, air intake preheating, sheep horn roller, etc., adapt to more different working conditions and improve construction efficiency

Parameter

Operating weight20000Kg
Axle load, front10000Kg
Axle load, rear10000Kg
Static linear load461N/cm
Engine manufacturer/
Engine Model/
Rated Power129Kw
Speed range(Forward)Speed (1)(2)(3)(4)0-5km/h
Speed range(Backward)Speed (1)(2)(3)0-8.5km/h
Vibration frequency28.5/32Hz
Vibration amplitude/
Centrifugal force380/280kN
Working width2130mm
Max. gradeability30%
Track radius, out/
Overall dimensions6370x2310x3200mm
