Feature

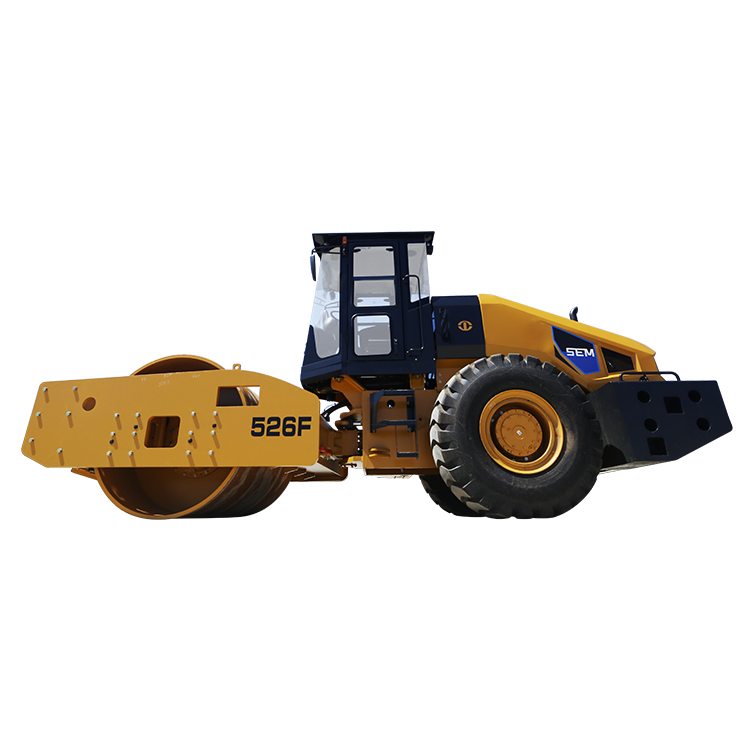

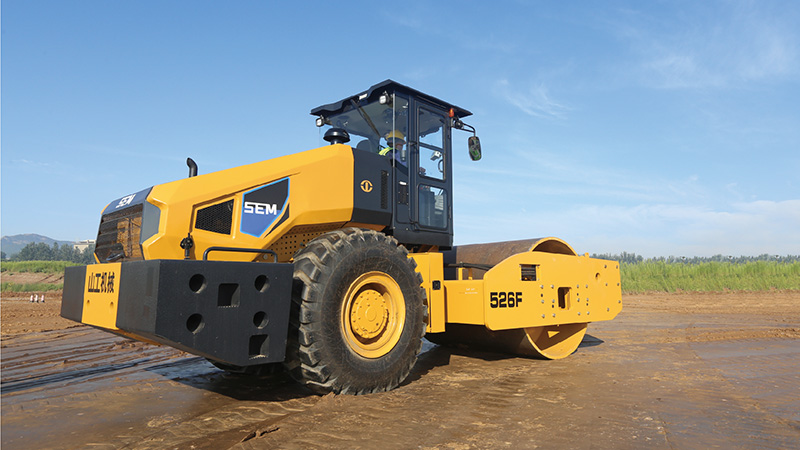

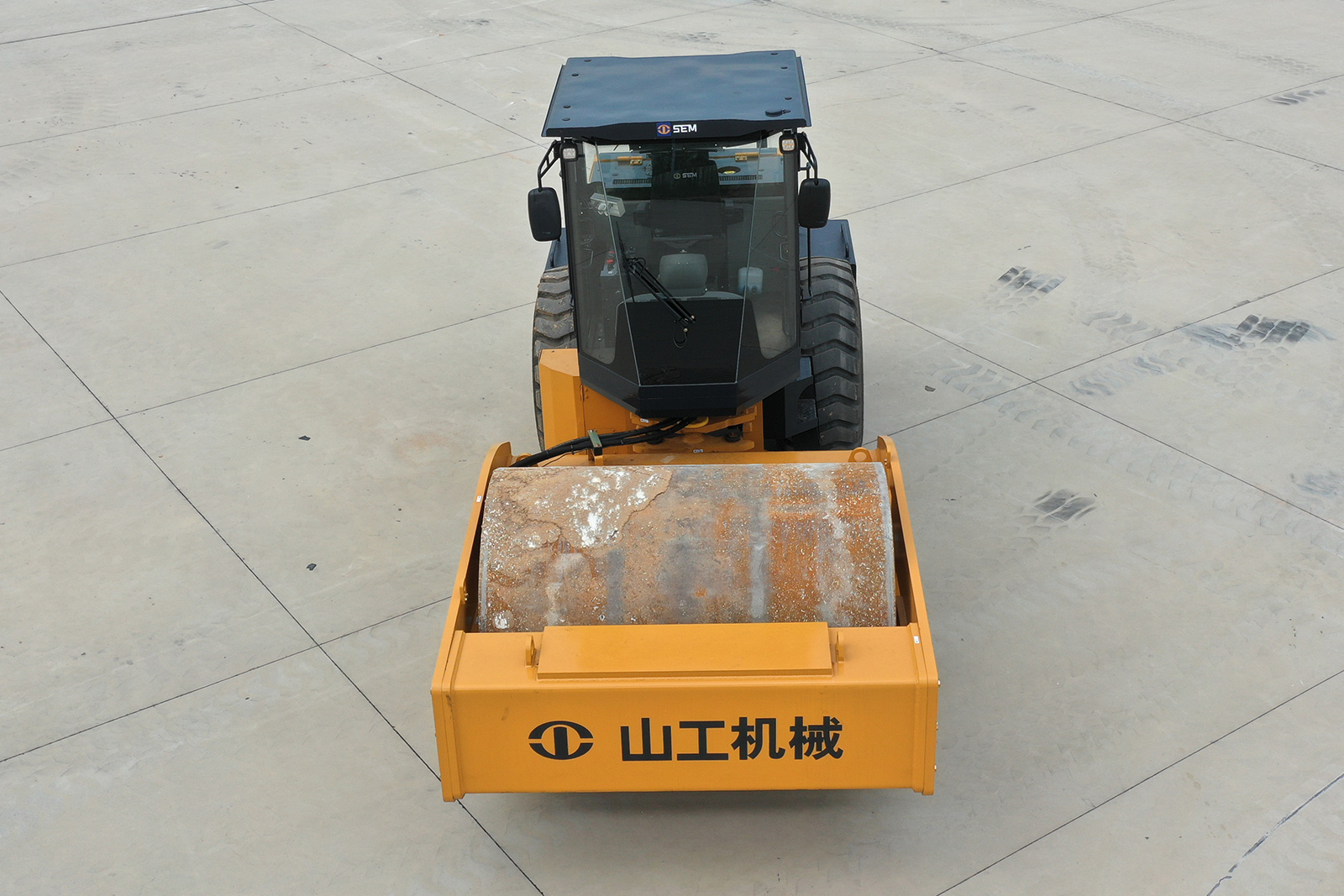

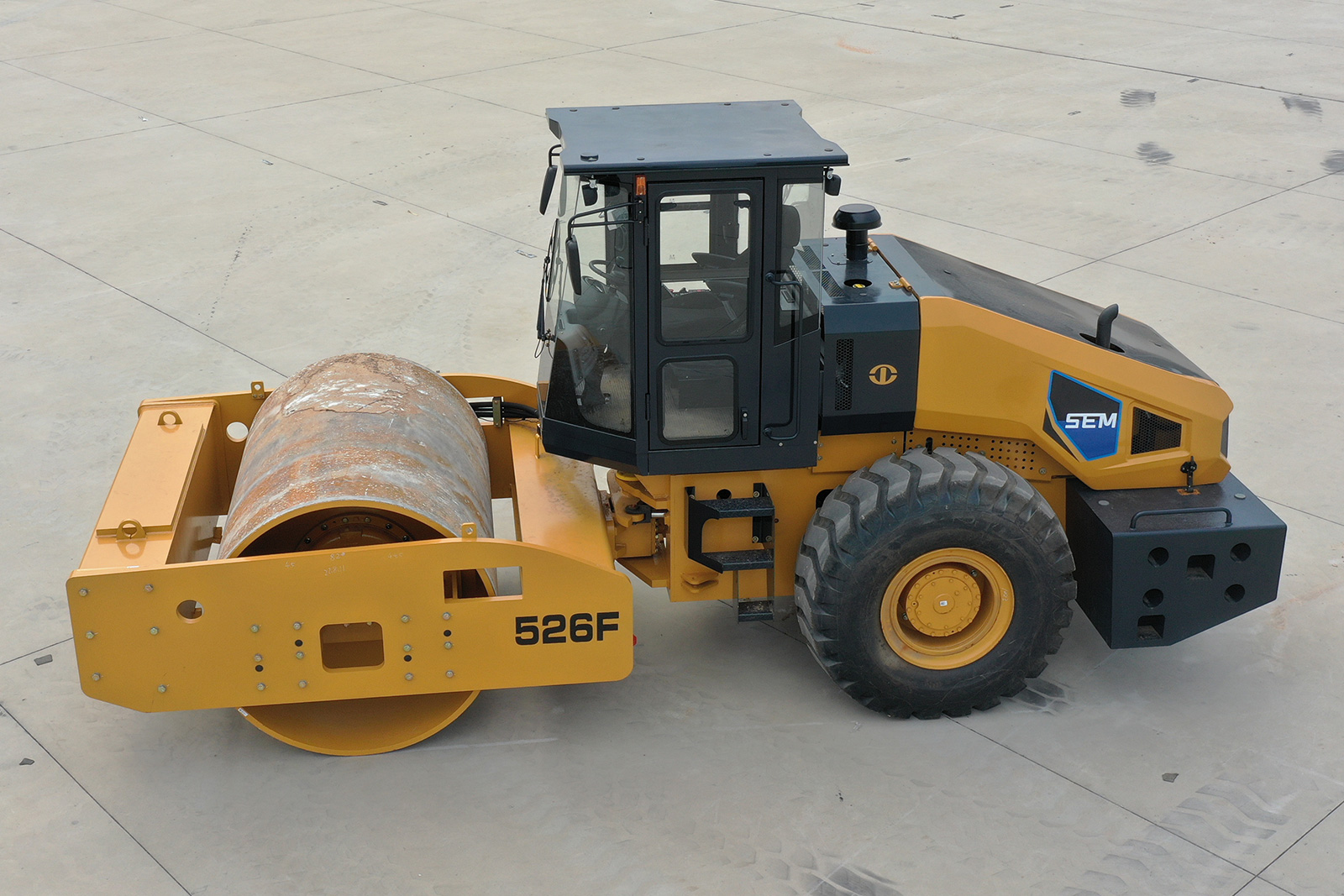

SEM 526F Single Drum Rollers & Soil Compactors
High Efficiency
- Propel system reduce system heat and fuel consumption
- Dual frequency and amplitude with close-center vibration hydraulic system, easy to operate and improve productivity
- Optimized travel speed with the vibration frequency
- Rear axle equipped with Limited Slip Differential (LSD) for better maneuverability
Parameter
| Operating weight | 26000Kg |
| Axle load, front | 13000kg |
| Axle load, rear | 13000kg |
| Static linear load | 587N/cm |
| Engine manufacturer | / |
| Engine Model | SC4H |
| Rated Power | 147kW |
| Speed range(Forward)Speed (1)(2)(3)(4) | 0-5/0-8km/h |
| Speed range(Backward)Speed (1)(2)(3) | 0-5/0-8km/h |
| Vibration frequency | 28.5/32Hz |
| Vibration amplitude | 2.05/1.15mm |
| Centrifugal force | 430/300kN |
| Working width | 2170mm |
| Max. gradeability | 30% |
| Track radius, out | 6800mm |
| Overall dimensions | 6670x2470x3250mm |
Request a Quote
