Drive Type: 8×4
Tank Capacity:/
Dimension :10649×2500×3300mm
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

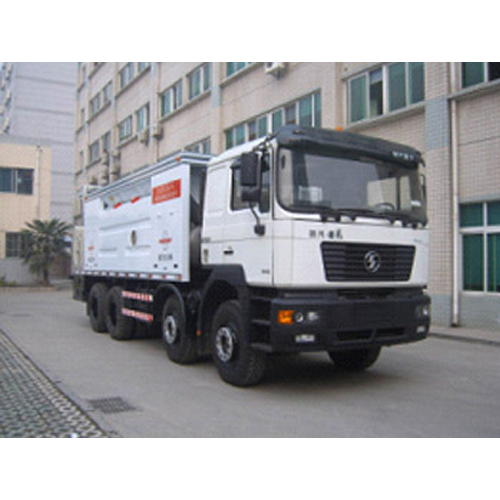

SHACMAN SX5315XJFC Slurry Sealer Truck
Performance characteristics:
High reliability: It is equipped with two batching systems, automatic and manual. In addition to automatic batching, it can also be done manually on the operating platform, enjoying double protection;
Adjustable paving width and thickness: The paving width can be adjusted arbitrarily within the range of 2.4-4.2m, and the paving thickness can be adjusted arbitrarily within the range of 5-15mm to meet various construction needs;
Wide application range: The vehicle can not only be used for slurry sealing and micro-surfacing pavement maintenance projects, but also for lower sealing and bridge deck treatment operations in high-grade pavement construction.
Automatic alarm device: The aggregate, water and asphalt systems are all equipped with alarm devices. If any material is about to run out or is used up, the system can automatically alarm or stop, which is safe and reliable;
Friendly interface and easy operation: During the paving process, the main construction parameters can be displayed at any time, and the parameter setting range can be recommended, and the batching parameters can be monitored throughout the process.
Parameter
Drive Type | 8×4 |
Tank Capacity | / |
Wheelbase | 1800+3000+1350mm |
Dimension | 10649×2500×3300mm |
Curb weight /load | 17000/13870kg |
Total mass | 31000kg |
Max. speed | 65km/h |
Number of passengers allowed | 2 |
Number of passengers allowed | 30% |
Engine | WP10.290 |
Gearbox | 9JSD150 |
Front Axle | Hande 6.5 ton |
Rear Axle | Hande 13 ton rear axle |
Tires | 12.00R20 |
Aggregate Silo Capacity | 10m³ |
Asphalt Tank Capacity | 2500L |
Water Tank Capacity | 2500L |
Powder Silo Capacity | 400L |
Additive Tank Capacity | 250L |
Paving Width | 2.4-4.2mm |
Paving Thickness | 5-15km/h |
Paving Speed | 2-3km/h |
