• DE17
View larger image
DE17

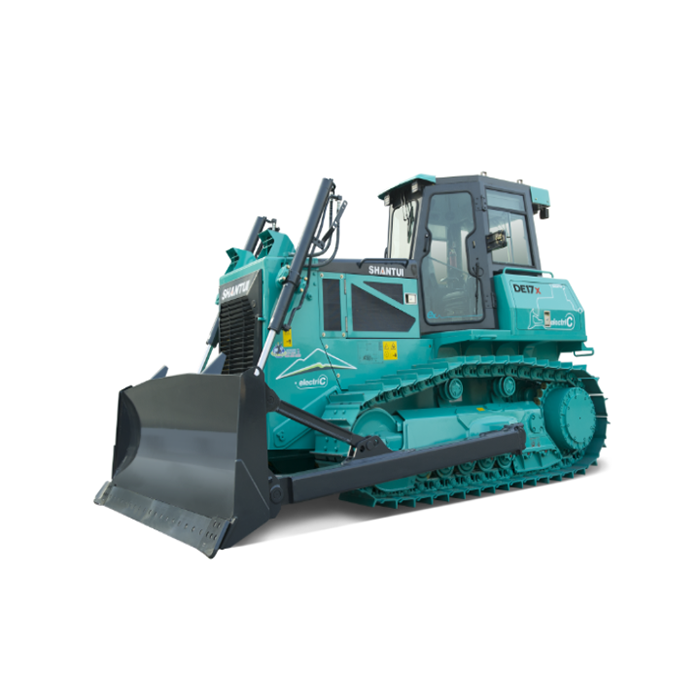

SHANTUI DE17 Bulldozer
VS


Operating Weight18500Kg
Engine Power: 229kw
Blade Capacity: 5.4m³

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

SHANTUI DE17 Bulldozer


Power Battery System
Equipped with lithium iron phosphate power battery, total energy of 240Kw.h, the whole vehicle can work for 4-5 hours under heavy load condition and 6-8 hours under medium and light load condition.
Intelligent temperature control system
-BTMS+ intelligent control system can realise efficient cooling of power battery, drive motor and motor controller.
●Collective modular arrangement of power system and working system to achieve modular design of heat dissipation of the whole machine.
Driving System
Ergonomic hexahedral one-piece cab with large space, good visibility and tight sealing.
With high sealing cab, the driver’s ear noise is lower than 76dB, which greatly improves the driving comfort.
-The seat has a large adjustable range, providing the driver with the most comfortable manoeuvring position:
Standardly equipped with cold and warm air-conditioning system, cigarette lighter, USB charging port, radio, sunshade, fire extinguisher, etc., which provides a richer and more humanised driving experience and a comfortable and safe driving environment.
●The whole vehicle safety access system ensures driver safety.
Transmission System
The whole machine adopts wheel-side direct drive system, applies load white adaptation technology, can be steered with load, in-situ steering, stepless speed regulation, flexible and efficient, and has excellent performance in narrow field construction:
The power output has fast response and strong explosive force, and can continuously output constant traction force, and has strong power at high speed;
The whole machine is equipped with three power working modes, which can be selected according to the actual working conditions and load requirements, achieving a reasonable match of power, efficiency and energy consumption.
Manoeuvring performance
The travelling manoeuvre and working device handle are electronically controlled single handle operation, which is flexible, light and comfortable to manoeuvre.
●Suspended single pedal structure, small size, large foot space, comfortable manoeuvring.

Parameter

Operating weight 18500kg
Ground pressure61.7kpa
Overall dimensions of machine 5465*3414*3192mm
Forward speed0-10km/h
Reversing speed 0-10km/h
Center distance of track1880mm
Width of track shoes 560mm
Ground length2675mm
