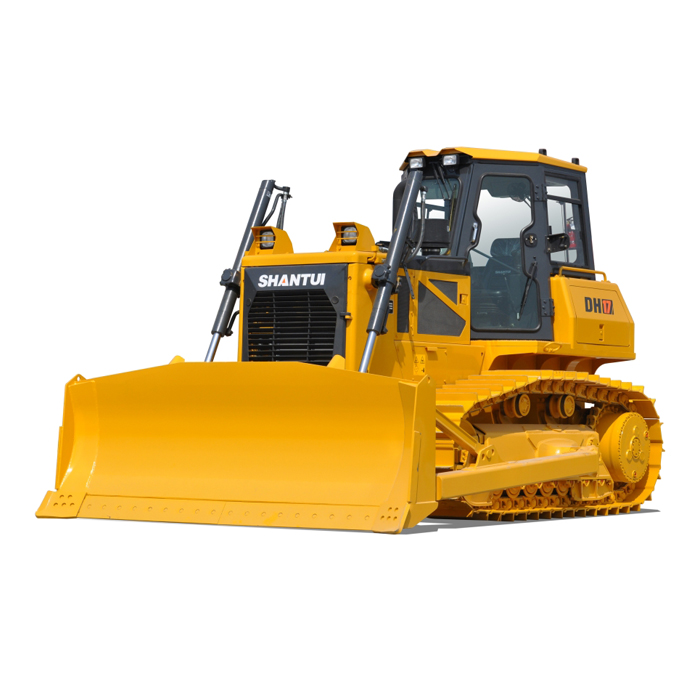

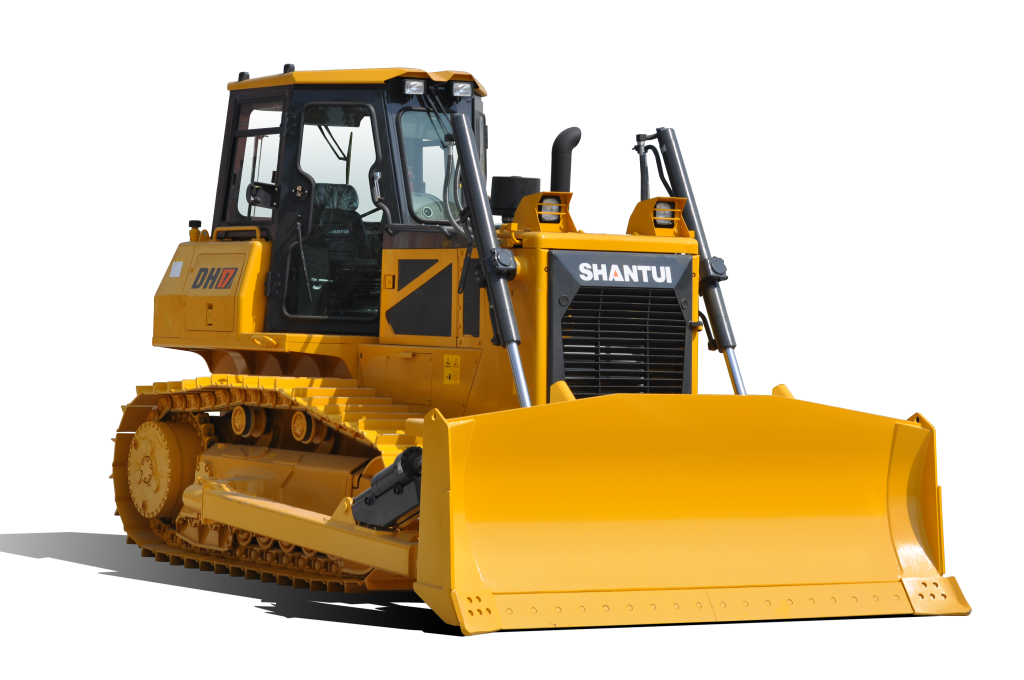

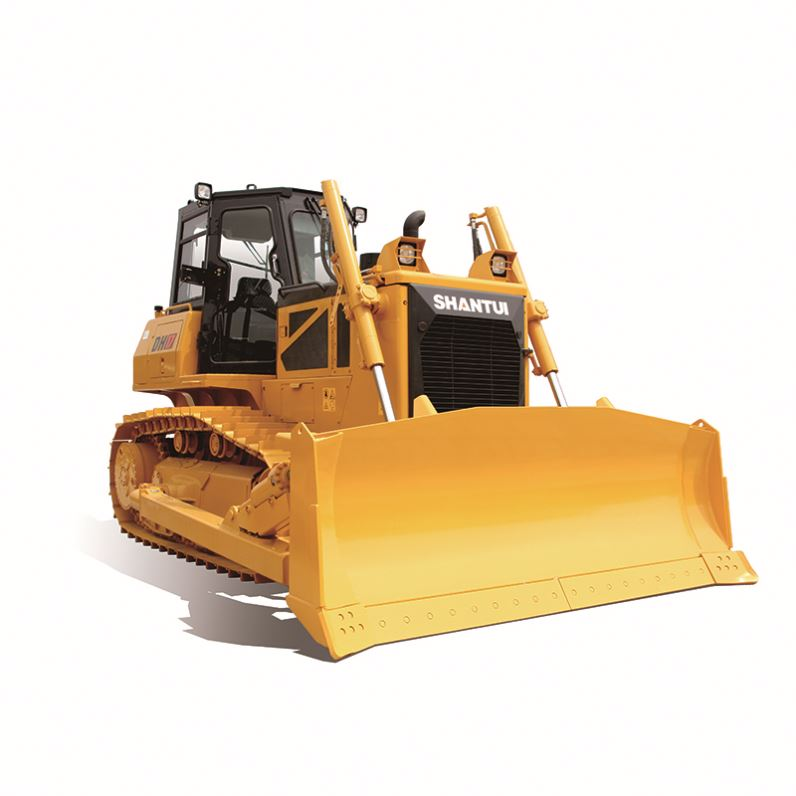

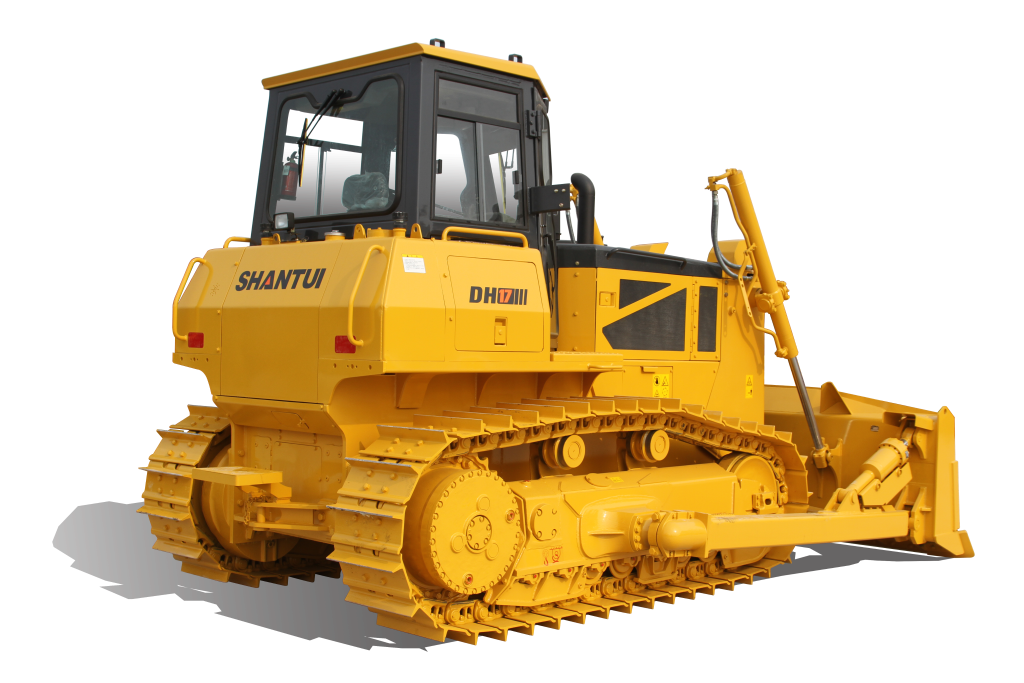

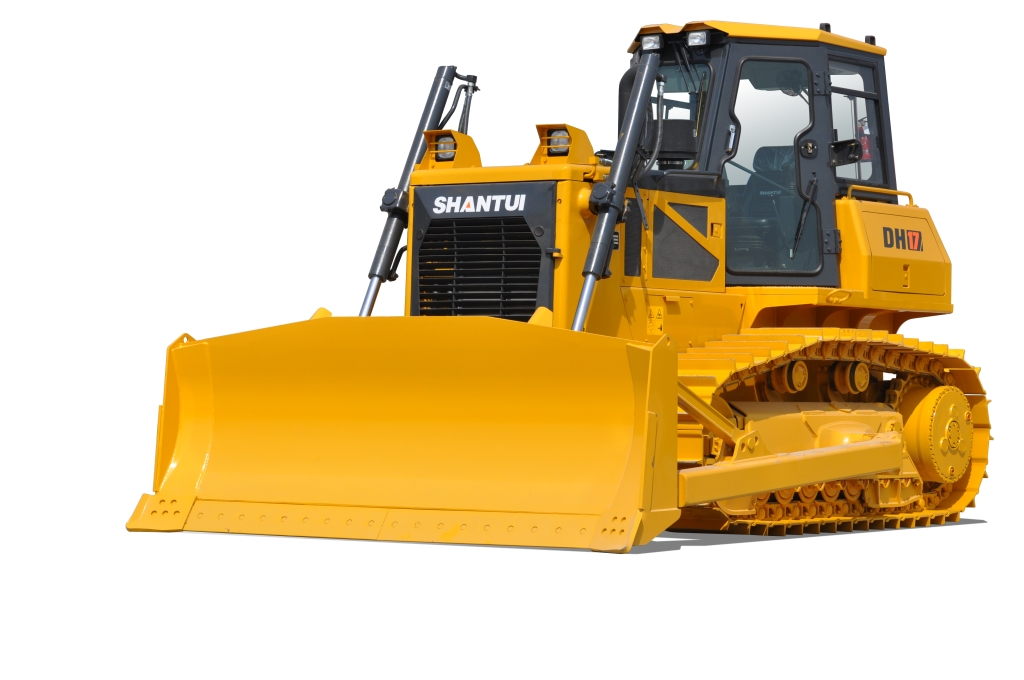

SHANTUI DH17-B2 Bulldozer
VS


Operating Weight17500Kg
Engine Power: 140kw
Blade Capacity: /

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

SHANTUI DH17-B2 Bulldozer


* Weichai engine and high-efficiency fuel injection pump features high torque, high performances, high parts universality, and low maintenance cost.
* The electronically controlled static pressure drive system equipped can automatically adapt to the load variation and provide best bulldozing speed under different working loads.
* The intelligent matching technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%.

* Oil-saving and Efficiency
* Hydrodynamic drive can not make full use of engine power when in low speed, and the engine will be over capacity when in high speed.
* Hydrostatic drive with electrical control system can ensure the pump absorb all engine torques.
* When engine works in high latitude or has abrasion, the control system can detect the performance reduction and make reduce absorb the torque.
* The ergonomic hexahedral cab features large space and excellent visual field.
* The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.
* The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
* The integrally sealed shock-absorbing system of the cab reduces the interior noise by 3~4dB.
* The safety passage system of the whole machine guarantees the driver’s safety.
* With electronically controlled traveling system and hydraulic pilot controlled working device, the traveling system and the working device can be controlled by single joystick.
* The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort, and high working efficiency.
* The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high flexibility and mobility and applicability for diversified working conditions.
* The structural parts inherit the excellent quality of Shantui mature products.
* The electric harnesses adopt seamless corrugated pipes and branching deconcentrators, featuring high protection grade.
* The core electric and hydraulic units adopt imported products, featuring stable and reliable quality and extremely high reliability.
* The static drive system features compact structure, small volume, light weight, and easy maintenances.
* The modular structure eases the disassembling of parts and ensures low maintenance cost.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Parameter

Operating weight 17500kg
Ground pressure64kPa
Overall dimensions of machine 5250*3420*3080mm
Forward speed0-10km/h
Reversing speed 0-10km/h
Center distance of track1880mm
Width of track shoes 560mm
Ground length2675mm
