Feature

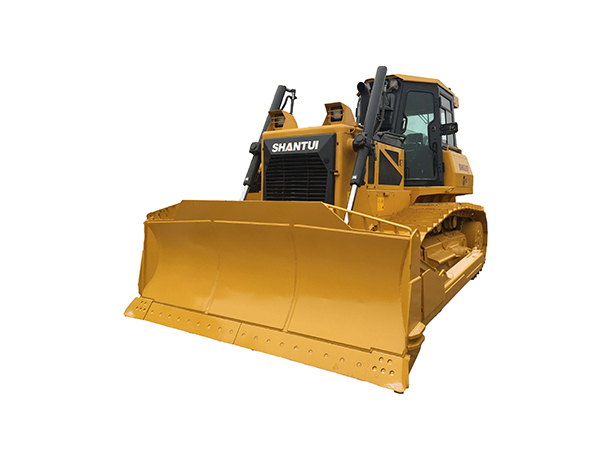

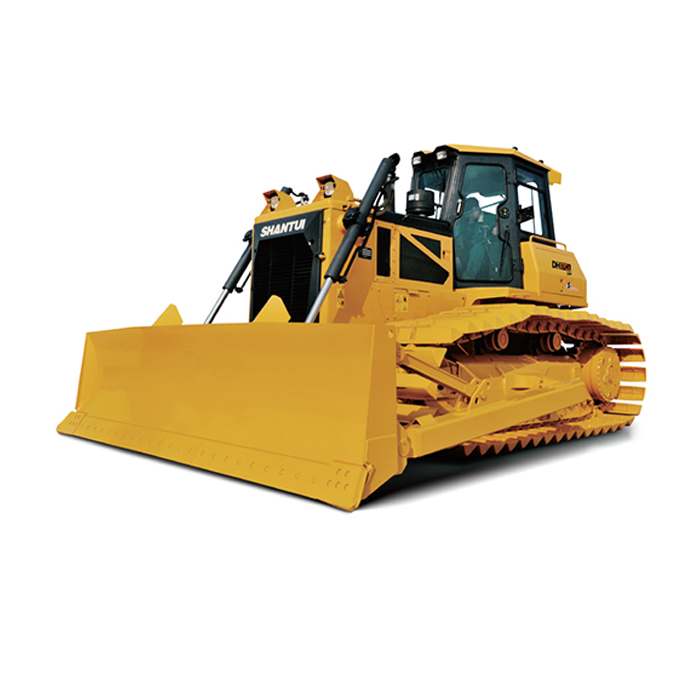

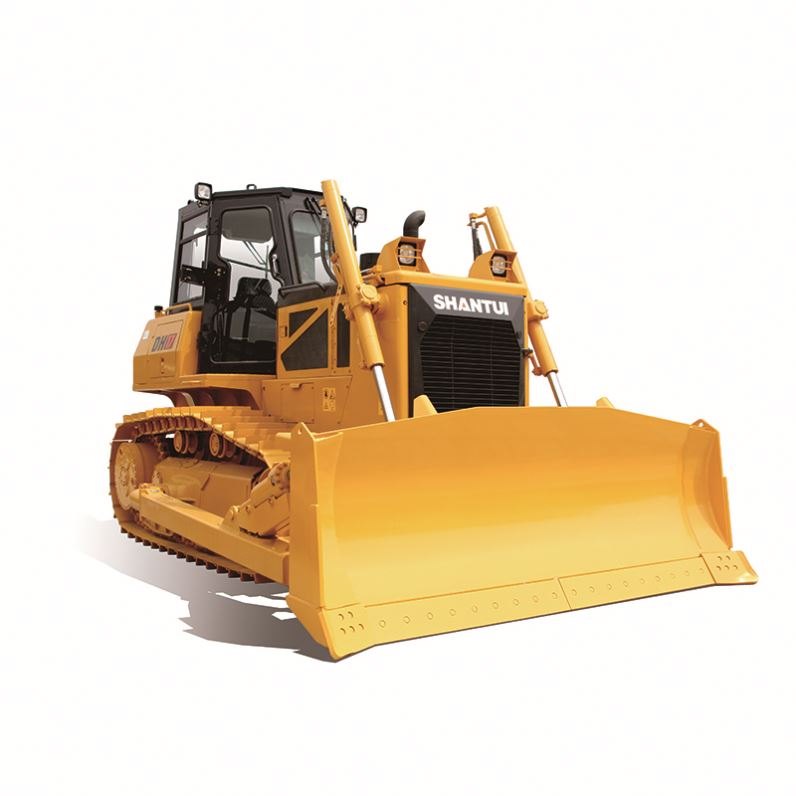

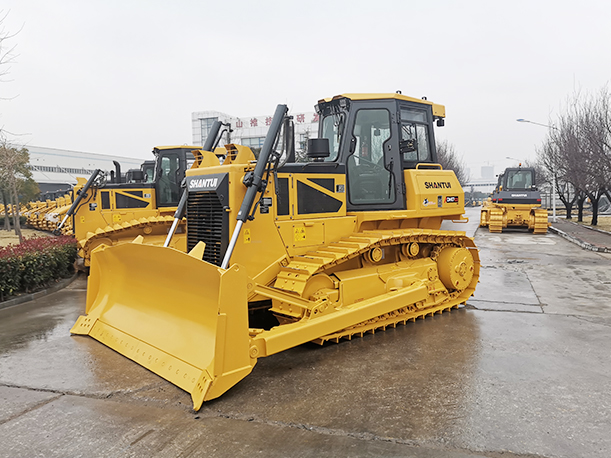

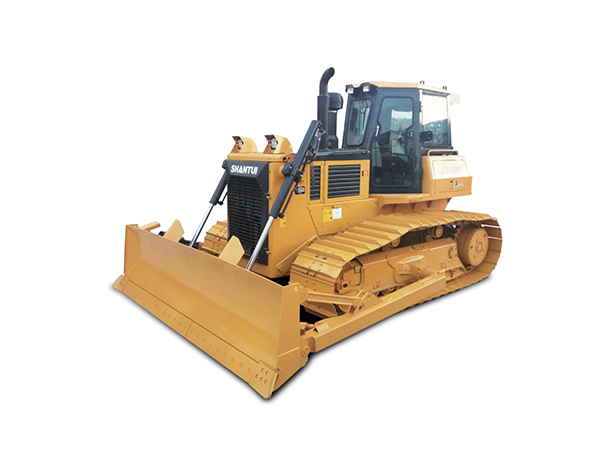

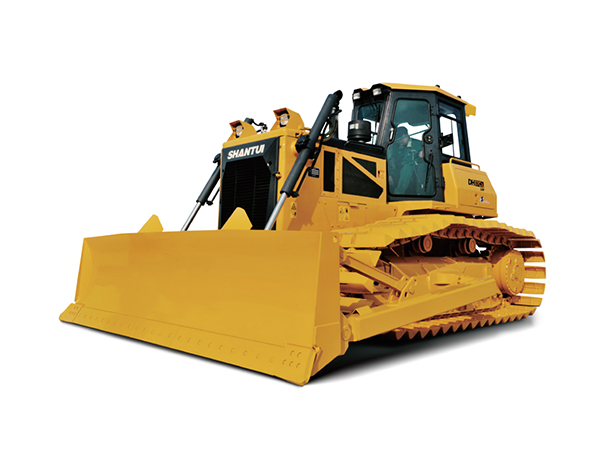

SHANTUI DH17-C2 Bulldozer
* The electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring high intelligence and efficiency, high parts universality, and low maintenance cost.
* The machine is provided with three working power modes at your choice depending on the specific load need under actual working condition to realize the reasonable match among power, efficiency, and power consumption. The unique one-touch boost mode can be used for escape from mud entrapment.
Drive system
* The machine adopts double-circuit electronically controlled hydrostatic drive system to ensure good load self-adaptability, loaded and in-situ steering capability, stepless speed regulation, and high flexibility and efficiency and realize outstanding construction performance in narrow sites.
* The chassis system features long ground length, high ground clearance, stable driving, and excellent trafficability. Depending on the specific working condition, the semi-U blade, straight tilting blade, environmental sanitation blade, and ripper can be installed to achieve high operating capability. The standard LED working lamps of higher illumination intensity improve the illumination capability during nighttime operations to achieve higher safety and reliability.
Parameter
Operating weight | 18340kg |
Ground pressure | 67.2kPa |
Overall dimensions of machine | 5250*3420*3080mm |
Forward speed | 0-10km/h |
Reversing speed | 0-10km/h |
Center distance of track | 1880mm |
Width of track shoes | 560mm |
Ground length | 2675mm |
