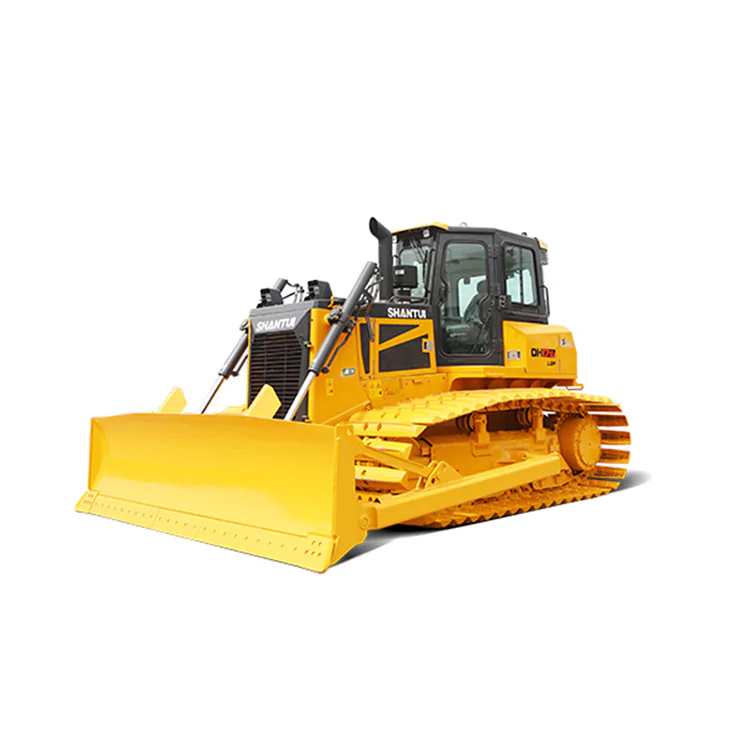

SHANTUI DH17-G RS Bulldozer

1、Hydrostatic drive

● The whole machine adopts double circuit electronically controlled hydrostatic drive system, load adaptive, steering with load, in-situ steering, stepless speed regulation, flexible and efficient, with excellent performance in narrow field construction;

● Increase the splitter box design, so that the travelling hydraulic system layout space is more reasonable, higher reliability.

2、National emission of non-road machinery

● Weichai electronically controlled engine, emission meets the national non-road machinery IV emission requirements, intelligent and efficient, low overall fuel consumption rate;

The whole machine is matched with three power operation modes, which can be selected according to the actual working conditions and load demand, and achieve a reasonable match of power, efficiency and energy consumption.

3、Intelligent control innovation and upgrading, high efficiency

● Innovative increase of slip rate control, eco mode control, steering mode control, reverse engine mode, automatic idling and other functions to achieve the best match of power, efficiency and fuel consumption;

● With 8-inch full-screen intelligent display and control terminal, the display and control interface is upgraded to realise self-diagnostic fault display, vehicle data information display is clear and concise, and the appearance is generous and beautiful.

4、Driving comfort and safety

● Ergonomic six-side one-piece anti-roll stamping cab, 4-point MDS damping, large space, low vibration, low noise, the driver’s ear noise can be reduced to 78 decibels;

● Standardly equipped with rear-mounted cold and warm air-conditioning, cigarette lighter, USB charging port, radio, sunshade, etc., providing a richer and more humanised driving experience and a comfortable and safe driving environment;

● Sealed tightly, can achieve a positive pressure of 45 Pa. Fully encapsulated interior, air conditioning ducts and 8 air vents are set on the top of the interior, and the arrangement of the air vents is more reasonable, which improves the efficiency of air conditioning.

5、Super long range

● The chassis system has a long grounding length, and the minimum ground clearance is increased to 410mm for smooth driving and good passability;

Fuel tank volume is increased to 352L, which can meet the demand of at least 14hours operation.

6、Reliable quality and convenient maintenance

External mounting of the working valve makes maintenance more convenient;

● Tug wheel external installation, balance beam lubrication point lead out easy maintenance;

● Shroud side opening, maintenance space;

The engine compartment is equipped with cabin light, which is safer for night inspection and maintenance;

● Full wiring harness, seamless bellows, splitter wiring, high protection level;

● Core electrical and hydraulic components with stable quality and high reliability;

● Simple structure of the whole machine, modular structure design, easy to disassemble, simple maintenance, low failure rate, easy to maintain.
