DH24-B2
DH24-B2-1

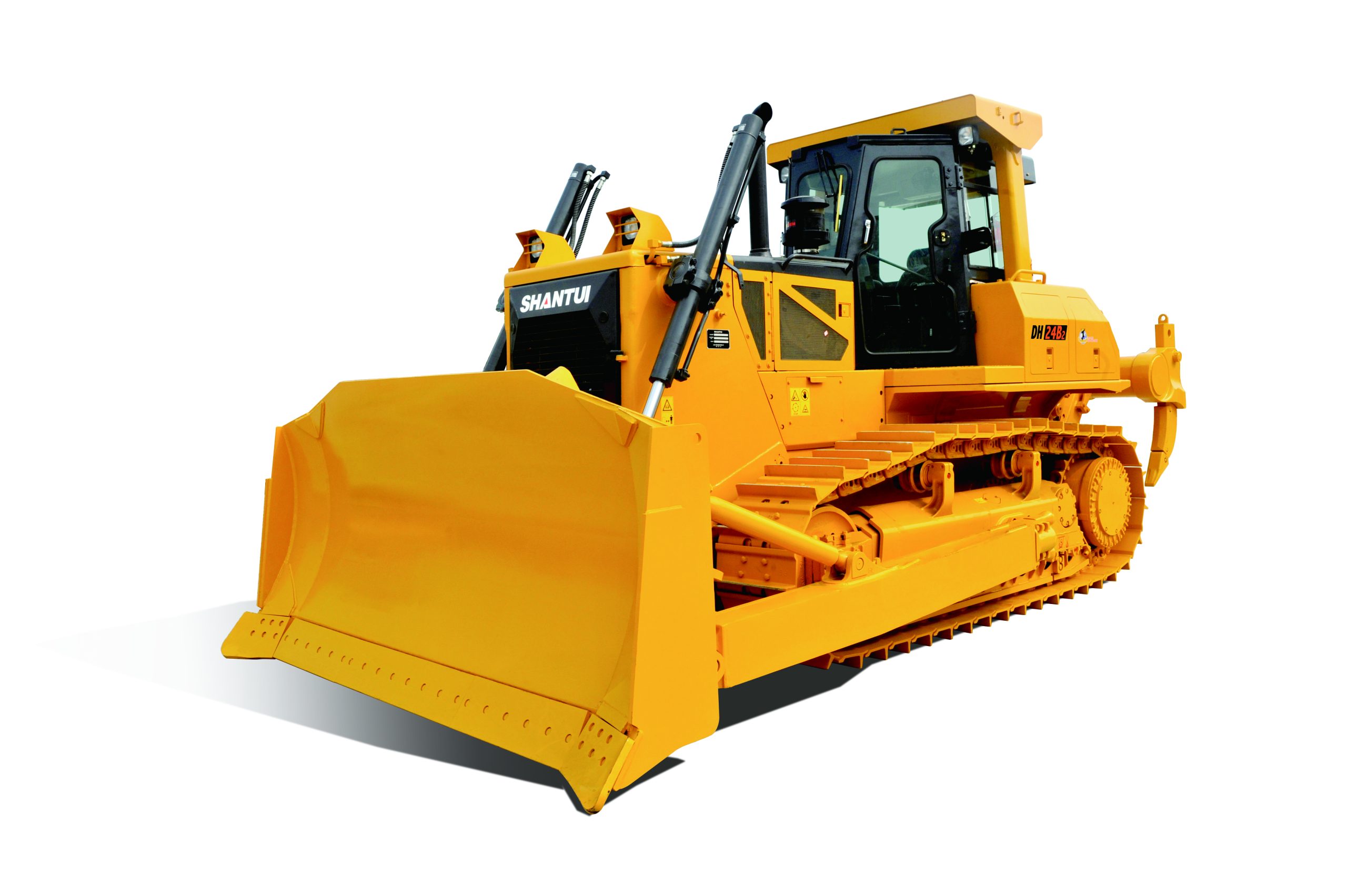

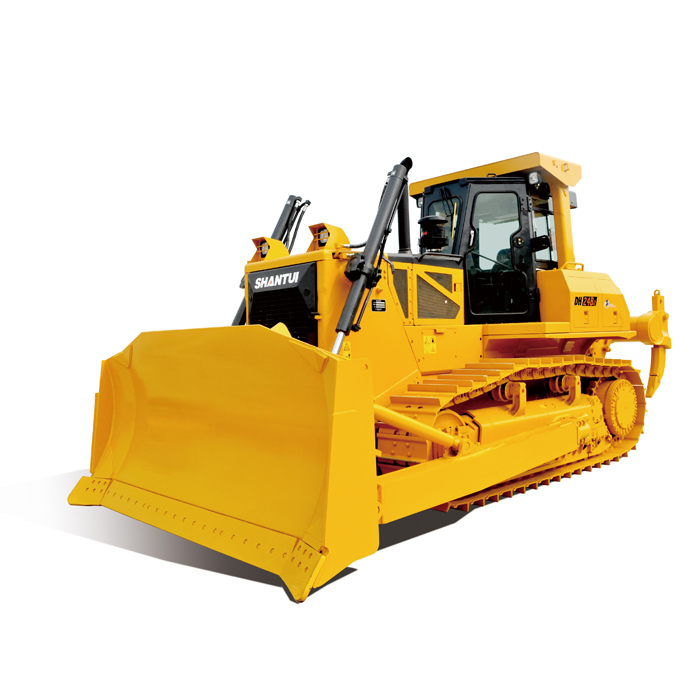

SHANTUI DH24-B2 Bulldozer
VS


Operating Weight23850Kg
Engine Power: 185kw
Blade Capacity: /

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

SHANTUI DH24-B2 Bulldozer


* The electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring high intelligence and efficiency, high parts universality, and low maintenance cost.

* The machine is provided with three working power modes at your choice depending on the specific load need under actual working condition to realize the reasonable match among power, efficiency, and power consumption. The unique one-touch boost mode can be used for escape from mud entrapment.

Drive system
* The machine adopts double-circuit electronically controlled hydrostatic drive system to ensure good load self-adaptability, loaded and in-situ steering capability, stepless speed regulation, and high flexibility and efficiency and realize outstanding construction performance in narrow sites.

* The chassis system features long ground length, high ground clearance, stable driving, and excellent trafficability. Depending on the specific working condition, the semi-U blade, straight tilting blade, environmental sanitation blade, and ripper can be installed to achieve high operating capability. The standard LED working lamps of higher illumination intensity improve the illumination capability during nighttime operations to achieve higher safety and reliability.

Parameter

Operating weight 23850kg
Ground pressure68.4kPa
Overall dimensions of machine 6095*3640*3192mm
Forward speed0-11km/h
Reversing speed 0-11km/h
Center distance of track/
Width of track shoes 560mm
Ground length3050mm
