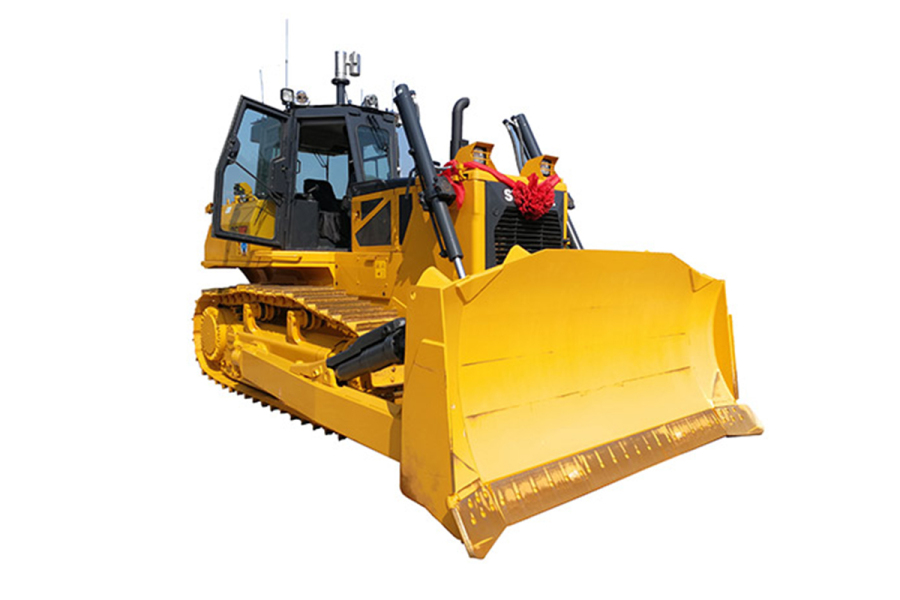

SHANTUI DH24-C2R CH Bulldozer

Remote control system

●Multi-angle real-time perspective monitoring, shovel blade angle, working direction, global image all in one. Remote monitoring of bulldozer operation parameters, standard safety lock, emergency stop function, optional safety autonomous defense system.

● 5G high-definition simulation remote control, using 5G high-bandwidth and low-latency characteristics, to realize ultra-long-distance remote control (as long as there is a 5G signal can be operated), compared with the radio simulation remote control, the remote control distance is farther, the view angle is clearer and more accurate, and the remote operation data monitoring is more comprehensive.

● Support a variety of remote control operation mode combination customization, such as: in the machine + portable remote control + 5G high-definition simulation remote control;

Power system

● Equipped with WP12 electronically controlled engine, the emission meets the national non-road machinery Ⅲ stage emission requirements, intelligent and efficient, with strong parts versatility and low maintenance cost.

● Adopting electronically controlled hydrostatic drive transmission system, the vehicle speed automatically adapts to the load change, and can provide the best operating speed under different working loads, with high productivity.

With the application of intelligent matching technology for working conditions, the working efficiency can be increased by 15%-20%.

Driving Environment

● Ergonomic six-side one-piece sealed cab with eight-point shock absorption, low noise, low vibration, large space and good vision.

● Suspended single gas pedal, small size, large foot space, comfortable maneuvering.

● Seat, armrest adjustable range, provide the driver with the most comfortable maneuvering position.

● The whole cab is sealed with vibration reduction system and equipped with sound-absorbing sponge, so the vibration noise is small and the noise in the driver’s ear can be reduced to 85dB;

Standardly equipped with cold and warm air-conditioning, intelligent display and control terminal integrated instrument, cigarette lighter, USB charging port, radio, tool box, sunshade, fire extinguisher, etc., providing a richer and more humanized driving experience and a comfortable and safe driving environment.

The whole vehicle safety channel system ensures the safety of drivers.

Control system

Adopting imported Dr. controller to control the whole vehicle, with stable performance and high reliability.

● With multiple steering modes, configurable fan reversal and other functions, the equipment is more intelligent, more efficient and more secure.

● With self-diagnostic function, it can accurately point out the direction of the cause of failure and shorten the downtime for maintenance.

Work Adaptability

● The whole machine adopts double-circuit electronically controlled hydrostatic drive system, load self-adaptation, steering with load, in-situ steering, stepless speed regulation, flexible and efficient, with excellent performance in narrow field construction.

The chassis system has long grounding length, large ground clearance, smooth driving, good passability, and can be equipped with half-U shovel, U shovel, coal pushing shovel, straight tilting shovel, sanitation shovel, rock shovel, looser, towing frame, rear protection frame according to the specific working conditions, which has strong working ability, and is equipped with LED working light with higher brightness as standard, which improves the lighting ability of the construction at night, and is more safe and reliable.

Operation Performance

● Walking maneuvering, working device electric control single handle operation, flexible, lightweight and comfortable operation.

Easy maintenance

The structural parts inherit the excellent quality of Shantui’s mature products.

The electrical wiring harness adopts seamless bellows and wire splitter, with high protection level.

The core electrical and hydraulic components are imported with stable quality and high reliability.

● Modularized structure design of the whole machine, easy to disassemble, simple maintenance, low failure rate, easy to maintain.

● All lubrication and maintenance points of the whole machine are led out to the outside of the body, so maintenance is convenient and quick.
