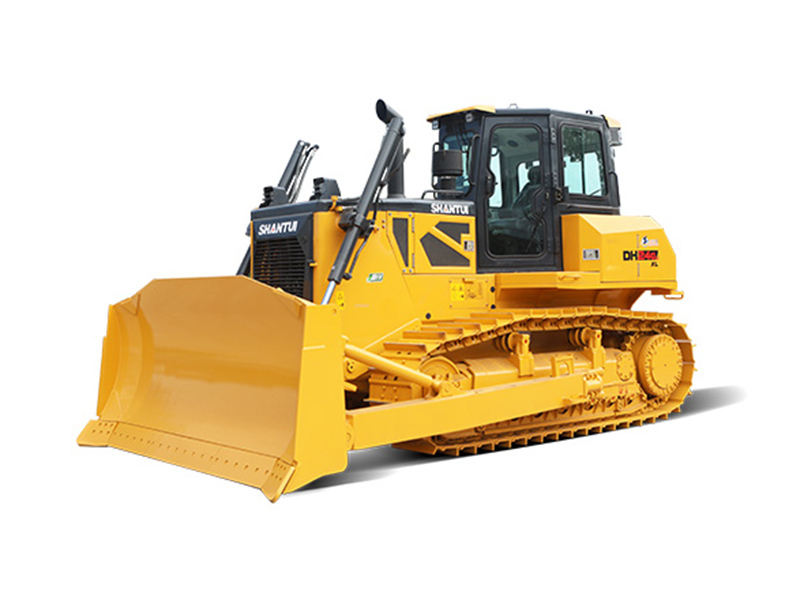

SHANTUI DH24-G LGP Bulldozer
VS


Operating Weight26420kg
Engine Power: 173kw
Blade Capacity: /

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

SHANTUI DH24-G LGP Bulldozer


1.Power system

WP10H electronically controlled engine is equipped, with emission meeting the fourth stage emission requirement of national off-road machinery, intelligent and efficient, with strong parts versatility and low maintenance cost;

●Electrically controlled hydrostatic drive transmission system, the vehicle speed automatically adapts to the load changes, and can provide the best operating speed under different workloads, with high productivity;

●There are three optional operating modes, which can be selected by the operator according to different working conditions and target demands. Applying the intelligent matching technology for working conditions, the comprehensive fuel consumption can be reduced by more than 10% in ECO mode, and the powerful power of 268 hp can be achieved in heavy-duty mode, and the working efficiency can be increased by 10%-15% under the same fuel consumption.

2.Driving Environment

● New integrated press cab, more than 20% more space, good visibility, low vibration, low noise, tight sealing, and can achieve a positive pressure of 45Pa;

● Suspended single accelerator pedal, small size, large space for foot movement, comfortable to manoeuvre;

Large adjustable range of seat and armrest, and many “armrests” inside the cab, providing the most comfortable and safe manoeuvring posture for the driver;

● The whole cab is sealed, equipped with 4-point MDS damping system, with low vibration noise, and the noise at the driver’s ear can be reduced to 78dB;

● Eight-inch intelligent integrated reversing video display and control terminal with integrated instrument, cigarette lighter, USB charging port, radio, sunshade, etc., providing a richer and more humanised driving experience and a comfortable and safe driving environment;

● All-enclosed luxury interior, integrated storage box function and 8 air vents air conditioning ducts, standard rear-mounted cooling and heating air conditioning, and has a fresh air function, increasing the driving space at the same time, cooling and heating efficiency increased by 15%;

● The whole vehicle safety access system, to ensure the safety of the driver.

3.Control System

WISE controller is adopted to control the whole vehicle, with stable performance and high reliability;

● A variety of travelling response modes, configurable fan automatic reversal and other functions, the equipment is more intelligent, more efficient, and more secure;

Fault self-diagnostic function, accurately indicate the direction of the cause of the fault, shorten the downtime maintenance time;

● New-generation intelligent control upgrade, more powerful functions, the whole machine control program in collaboration with Linde development to match the compatibility; new slip rate control, Eco mode control, driving response mode control, reverse engine mode, automatic idling and other functions, to achieve the best match of power, efficiency and fuel consumption; eco mode, to maintain a high level of operational efficiency while saving more than 10% of fuel consumption.

4.Work Adaptability

● The whole machine adopts double circuit electronically controlled hydrostatic drive system, load self-adaptation, steering with load, in-situ steering, stepless speed regulation, flexible and efficient, and excellent performance in narrow site construction.

The chassis system has long grounding length, large ground clearance, smooth driving, good passability, and can be equipped with half-U shovel, U shovel, coal pushing shovel, straight tilting shovel, sanitation shovel, rock shovel, looser, towing frame, rear protection frame according to specific working conditions, with strong working ability, and equipped with LED working light with higher brightness as standard, which improves the illumination ability of the construction at night, and makes the machine safer and more reliable.

5.Operation Performance

● Walking manoeuvre electric control single handle operation, working device manoeuvre pilot single handle operation, manoeuvre flexible, lightweight and comfortable.

6. Easy maintenance

The structural parts inherit the excellent quality of Shantui’s mature products;

● The wiring harness of the whole vehicle adopts Enda wiring harness, seamless bellows, wire splitter wire splitting, high protection level;

● The core electrical and hydraulic components are imported, with stable quality and high reliability;

● Modular structure design of the whole machine, electrical system and hydraulic system components are reasonably arranged, full open type stamping shield, easy to disassemble and install, large space for maintenance, low failure rate, easy to maintain, and maintenance efficiency is increased by more than 50%;

The engine compartment is equipped with cabin light, which makes night inspection and maintenance safer;

All lubrication and maintenance points of the whole machine are led out to the outside of the machine body, which makes maintenance convenient and quick;

● On-screen calibration function of the display, which greatly improves the convenience of calibration;

Extra-long endurance, a full tank of fuel can meet the needs of at least 14 hours of operation and construction.

Parameter

Length × width × height/
Engine modelWP10H
Ground pressure40.9kpa
Blade capacity/
Operating weight26420kg
Net power/rated speed173kw/1900rpm
Blade type/
