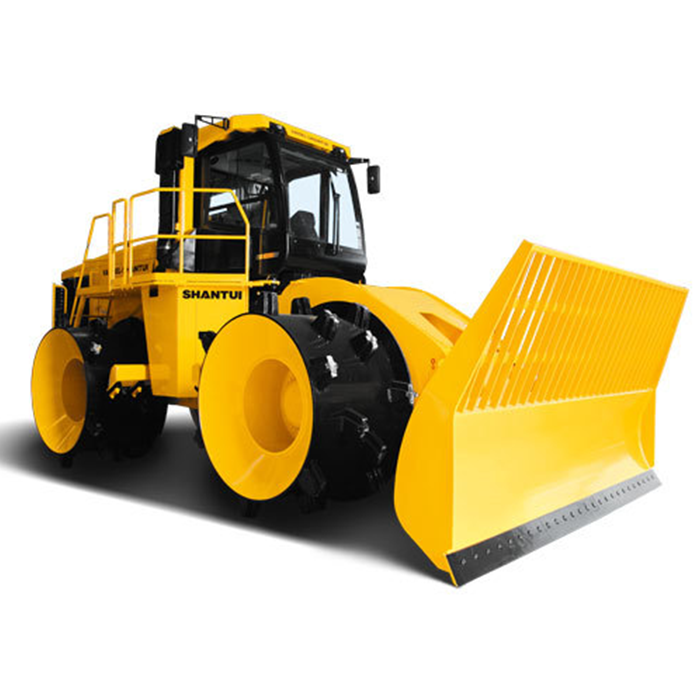

SHANTUI QS300 Landfill Compactor
VS


Engine Model:Cummins QSM11
Operating Weight: 33000kg
Axle Load Front:16500kg

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

SHANTUI QS300 Fefuse Compactor


  • With output power at 250kW, the Cummins QSM11 turbocharged full-electronically controlled diesel engine conformed to Euro-II emission regulation and provides best power guarantee for the machine under the most severe working condition.
  • The hydro-mechanically driven power drive system is professionally designed and elaborately manufactured specially for severe trash treatment environment. Shantui’s original hydro-mechanical drive system can provide stronger power, higher productivity, and lower unit hour operating cost.
  • The weight of the compactor is equally distributed on the axles, which applies a super-strong linear compacting force onto the compacting drum. The design optimized compacting drum can not only complete the crushing and compacting of trashes, but also feature sufficient corrosion resistance.
  • The full-enclosed cab can protect the driver against the influence of severe working environment and the air supply to the cab is pre-filtered by activated carbon.
  • The traveling and steering of the compactor and the lifting and lowering of the blade are controlled by the electronic control joysticks arranged on two sides of the seat and the air suspension seat can be adjusted in all directions to maximize the operating comfort of the driver.
  • The optical monitors within the cab guarantee the reversing safety.
  • The external ROPS structure for the cab guarantees the driver’s safety.
  • The three-layer guard plates effectively guard the terminal reducer interfaces of front and rear axles against the ingress of foreign material.
  • The overhead steering cylinder effectively eliminates the dangers arising from the impact of trashes.
  • The optional compacting system and the Wendt control system realize the remote monitoring and intelligent management on the compactor.
  • The protective door of complete buckle design is installed for all maintenance portions and all protective doors can be opened without use of additional tool.
  • The bottom of the compactor is under full-enclosed protection by baseplates to keep clean the machine. The design of central lubrication points eases the maintenance of the users.
  • The nearly harsh screening on critical components (including engine, drive parts, and hydraulic units), the globally procured world’s first-class parts, and the absorption and integration of advanced technologies guarantee the performance and reliability of the product.

Parameter

Operating weight33000kg
Axle load, front16500kg
Axle load, rear16500kg
Static linear load/
Engine manufacturerCummins
Engine ModelQSM11
Rated Power250/2100kW/rpm
Speed range(Forward)Speed (1)(2)(3)(4)/
Speed range(Backward)Speed (1)(2)(3)/
Vibration frequency/
Vibration amplitude/
Centrifugal force/
Working width3460mm
Max. gradeability100%
Track radius, out6900mm
Overall dimensions8830×3800×4480mm
