Feature

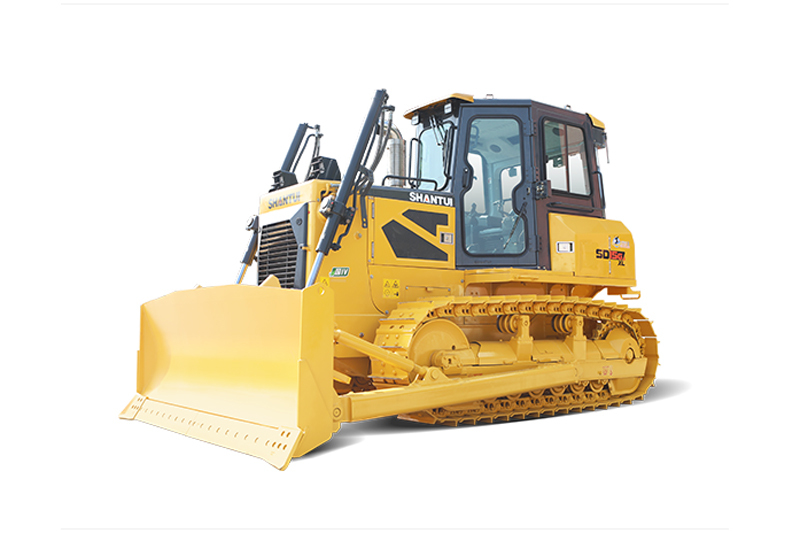

SHANTUI SD15-G XL Bulldozer
Power system
● Configured with Dongkang B5.9 electronically controlled engine, which meets the national stage IV emission requirements for off-road machinery, intelligent and efficient, with low comprehensive fuel consumption rate;
● The after-treatment system adopts EGR+DOC+DPF technology route, free of burning urea, with low cost of use.
Transmission System
● The transmission system is common with SD13 bulldozer, which has been tested in the market for a long time;
● The core parts of torque converter, transmission, central drive and final drive are all made by Shantui;
The torque converter is carefully matched with high efficiency in the industry.
Control system
The travelling system adopts mechanical linkage control, inheriting the operating habits of SD13 bulldozers;
The working device adopts pilot control, precise control, good micro-movement and easy operation;
● Eight-inch LCD screen with integrated reversing image;
● Seats are equipped with wide armrests on both sides, independently supported and adjustable.
Driving Environment
● New type of enlarged positive pressure cab, high-end luxury interior, anti-roll and anti-falling object functions in one, safe and comfortable;
● Super wide-angle view in the cab;
● Standard equipped with integrated rear air conditioner, top air duct design, standard equipped with fresh air;
Standard equipped with Bluetooth radio, USB interface, storage box, cup holder, ashtray, sunshade, so that you can work and enjoy at the same time.
Work Adaptability
● The chassis system is self-made by Shantui, and the four wheels and one belt are exported overseas, with a longer service life than that of competitors. The chassis system has long grounding length and smooth driving;
● According to the working condition, it can be equipped with straight tilting shovel, sanitation shovel, angle shovel, towing frame, looser, etc;
● Standardly equipped with 6 LED work lamps, which improves the illumination ability of night construction;
Fuel tank capacity of 280L can meet the requirement of more than 16 hours of operation.
Easy Maintenance
The fuel system has three-stage filtration, and the filter element is centrally arranged, which is convenient for maintenance;
● Maintenance-free lubrication of engine fan shaft and water pump bearing, and the lubrication point of balance beam is led out, which is convenient for maintenance;
● Fully-open side shields, large maintenance space;
● External work valve, convenient maintenance;
Centralised arrangement of transmission and steering filter element, easy maintenance;
The lubrication and maintenance table is clear at a glance, helping you to maintain the vehicle scientifically without stress.
Parameter
Length × width × height | 4750×3256×3075mm |
Engine model | B5.9 |
Ground pressure | 55kpa |
Blade capacity | / |
Operating weight | 14120kg |
Net power/rated speed | 117kw/1900rpm |
Blade type | / |
