Feature

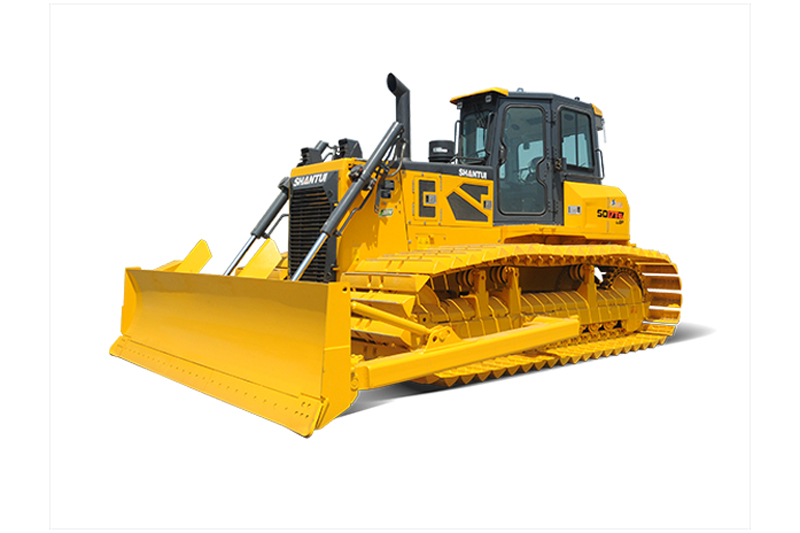

SHANTUI SD17T-G LGP Bulldozer
1、Power system
Adopting Weichai WP9H electronically controlled engine, the emission meets the national non-road machinery stage IV emission requirements, sufficient power, intelligent and efficient, low maintenance cost.
2、Transmission system
Mechanical transmission, high transmission efficiency; wet hydraulic power main clutch, forced lubrication gearbox, hydraulic power steering system makes the machine easy to operate, with efficient transmission power and high productivity.
3、Driving environment
Equipped with positive pressure cab, the driving space is large, good vision and high sealing; one-piece rear air conditioner, top air duct design, standard equipped with fresh air, air conditioner cooling performance is improved.
4、Working device
The working device adopts pilot-operated, with cross-grip handle, which is light, flexible and comfortable to manoeuvre;
5、Maintenance
The engine shroud has large opening space, the working valve is placed outside, which is convenient for overhauling, and the configuration of electrical centralised control box makes troubleshooting more convenient.
Parameter
Length × width × height | 5710*4230*3256mm |
Engine model | WP9H |
Ground pressure | 25kpa |
Blade capacity | / |
Operating weight | 19900kg |
Net power/rated speed | 140kw/1900rpm |
Blade type | / |
