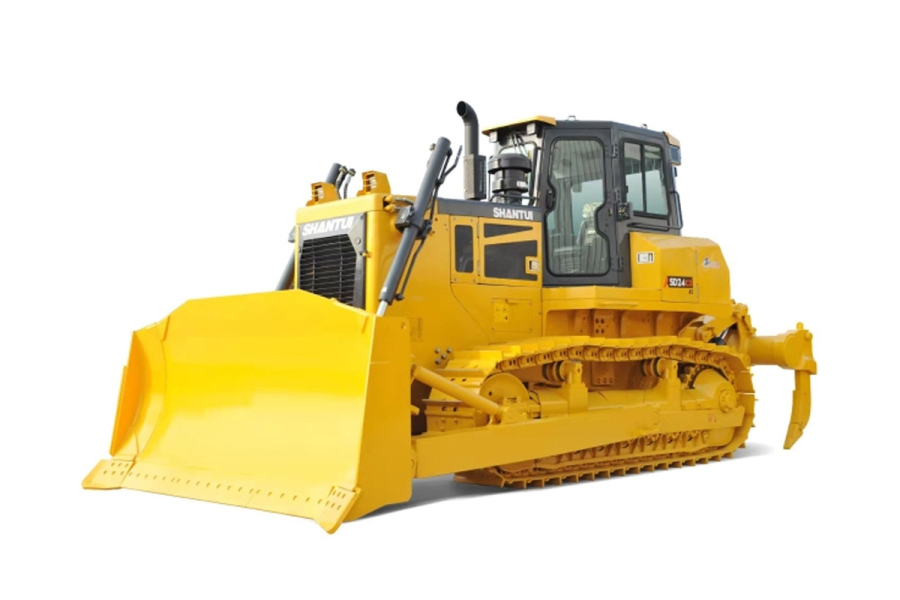

SHANTUI SD24-C3 WH Bulldozer

Power system

●Adopting the WP12 national three engine jointly developed with Weichai Power, the power is increased to 195kW, and the rated speed is increased to 1900rpm; optimizing the matching performance of the whole engine and widening the high efficiency range.

Adopting radial sealing air intake system to effectively improve the service life of the engine.

Transmission System

The transmission system is perfectly matched with the engine curve, with wider high efficiency zone and higher transmission efficiency;

Shantui’s homemade transmission system is market-tested, with stable performance and reliable quality.

Driving Environment

● Hexahedron cab, large interior space and open vision, integrated FOPS/ROPS, safe and reliable;

●Electrically controlled hand and foot throttles, more precise and comfortable maneuvering;

●Noise is reduced to 80dB; cab sealing is upgraded with positive pressure (43pa); cooling performance is improved by 15% and air output is increased by 50%;

●Traveling maneuvering handle is integrated from 3 to 1, and the maneuvering force is reduced by 77%.

Work Adaptability

●Stable and reliable Shantui chassis system, suitable for various harsh working conditions;

●The product has long grounding length, large ground clearance, smooth traveling and good passability;

●According to specific working conditions, it can be equipped with straight tilting shovel, half-U shovel, U shovel, angle shovel, coal pushing shovel, rock shovel, sanitation shovel, looser, towing frame, winch, etc., which makes it more adaptable to work;

Optional LED work light can be equipped to enhance the lighting ability at night, which is safer and more reliable.

Easy maintenance

The working valve of the hydraulic system is externalized, which makes it easier to overhaul;

●The side cover opens left and right, solving the problem of inconvenient opening of the rear cover up and down;

●Transmission and steering filter elements are centrally arranged for easy maintenance, which can save 50% maintenance time;

The lubrication and maintenance table is clear at a glance, which helps you to maintain it scientifically without any pressure.
