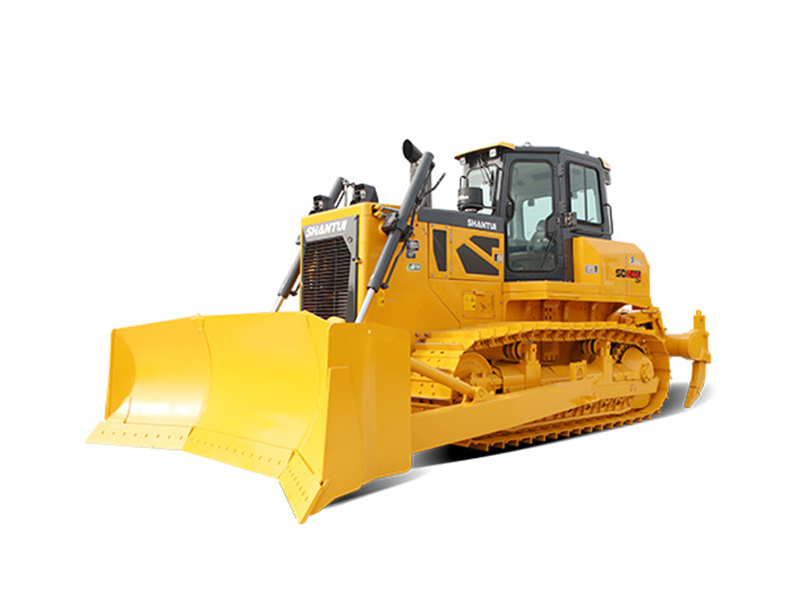

SHANTUI SD24-G WH Bulldozer

Power system

– Weichai WP13 electronically controlled engine, meets the national non-road machinery four-stage emission requirements, intelligent and efficient, low overall fuel consumption rate;

– The whole machine is matched with three power operation modes, light load 175kW, medium load 187kW, heavy load 199kW, according to the actual load demand, a key switch, fuel saving, power under your control.

Transmission system

– The transmission system is common with SD22 bulldozers and has been tested in the market for a long time;

– The core parts of torque converter, gearbox, central drive and final drive are all made by Shantui;

– The torque converter is carefully matched with high efficiency in the industry.

Control system

– The travelling system adopts single-handle electro-hydraulic control, integrating speed change, direction change and steering, which is simple to control and reduces the manoeuvring force by 77%;

– The gear can be preset according to the working conditions, and the three modes of F1/R1, F1/R2 and F2/R2 are at your choice, which is more efficient and intelligent;

– The working device adopts pilot control, precise control, good micro-movement and easy operation;

– Eight-inch LCD display with integrated reversing image.

Driving environment

– The new enlarged positive-pressure cab, high-end luxury interior, anti-roll and anti-falling object functions in one, safe and comfortable;

– The super wide-angle view in the cab is leading in the industry;

– Standard with integrated rear air conditioning, top air duct design, standard with fresh air;

– Seats are equipped with wide armrests on both sides, independent support, adjustable;

– Standard equipped with Bluetooth radio, USB interface, storage box, cup holder, ashtray, sunshade, so that you can work and enjoy both.

Work Adaptability

– The chassis system is self-made by Shantui, and the four wheels and one belt are exported overseas, and the life span is higher than that of competitors. The chassis system has long grounding length and smooth driving;

– According to the working condition, it can be equipped with straight tilting shovel, half-U shovel, U-shape shovel, coal pushing shovel, rock shovel, sanitation shovel, angle shovel, towing frame, looser and so on;

– Standardly equipped with 6 LED work lamps to enhance the lighting ability at night;

– Fuel tank volume increased to 480L, range increased by 7%.

Easy Maintenance

– The fuel system has three-stage filtration, and the filter element is centrally arranged for easy maintenance;

– Maintenance-free lubrication of engine fan shaft and water pump bearing, and lubrication point of balance beam is led out, convenient maintenance;

– Fully-open side shroud, large maintenance space, external work valve, convenient maintenance;

– The centralised arrangement of gear change and steering filter element makes maintenance easy and saves 60% of maintenance time;

– The lubrication and maintenance table is clear at a glance, helping you to maintain the vehicle scientifically without any pressure.
