View larger image
Bucket Capacity：0.22m³
Engine Power：36kW
Operating Weight ：5960kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

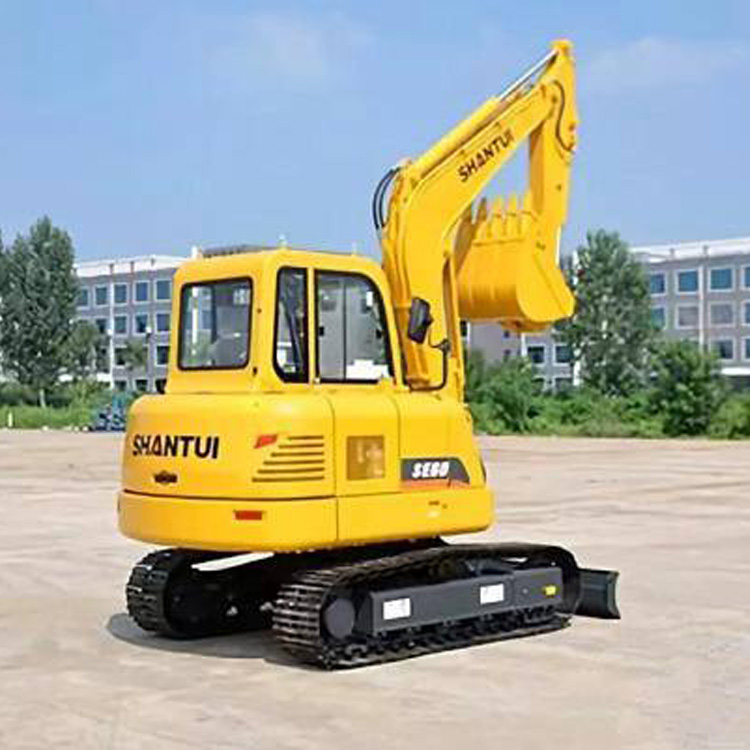

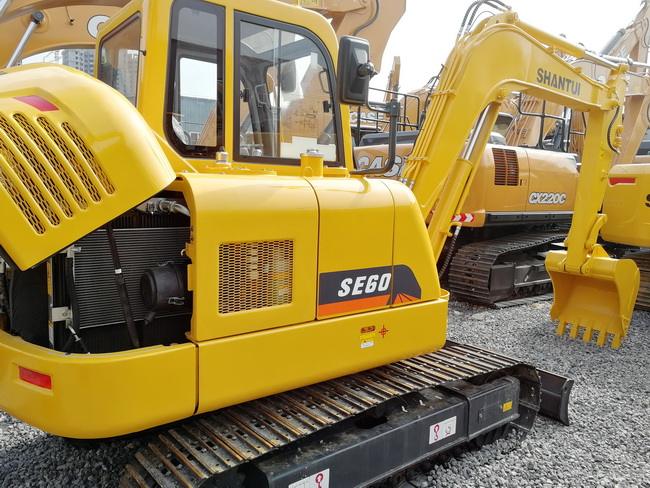

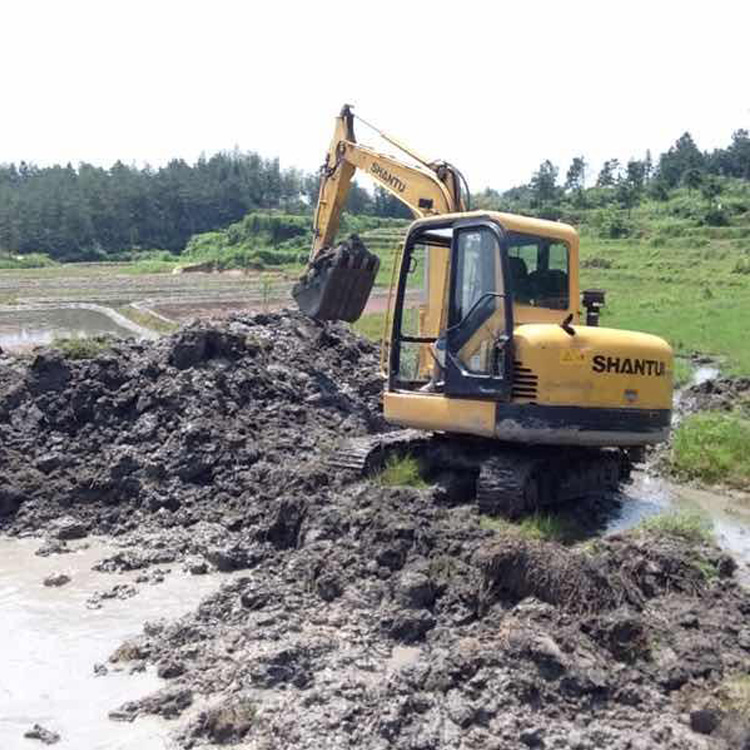

SHANTUI SE60 Small ExcavatorThe high-performance turbocharged engine with mechanical pump features high power, low fuel consumption, and powerful fuel adaptability. The all-new load-sensing hydraulic system and the over-class high-displacement constant-power pump matches with low pressure loss main valve and large bore pipeline to realize smooth operations and fast response and improve the efficiency by >8.5%.
The upper frame adopts the modal analysis technology to realize high firmness and durability while effectively reducing the vibration and noise of machine.
The design of structural parts is comprehensive optimized and the critical load-carrying locations are reinforced to resist against severe working conditions.
The baseplates, side plates, and reinforcement plates of bucket are made of high-strength wear-resistant material to improve the durability of bucket.
Comfortable and convenient operating environment
The colors of the all-injection-molded interior trim parts are effectively matched as per ergonomics to mitigate the operator’s visual fatigue.
The cab in high-strength irregular-shaped tubular framework structure features broad forward and backward visions and high working safety and is installed with fire extinguisher, escape hammer, and seat belt.
The high-power A/C system outputs pleasant airflow in three-dimensional manner. The air cushioned seat is adjustable by two-stage slideways. The excellent shock-absorbing and noise-reduction performance can realize a perfect driving/riding comfort.
With 30 years of R&D and manufacturing experiences of drive sprockets, idlers, track rollers, carrier rollers, and tracks and with industry’s high-end technologies, it’s the first choice for excavators.
The mature and high-quality forging and heat treatment processes guarantee stable and reliable quality.
The track rollers of same specification with 7T class are installed to realize high firmness and durability and long life.
The intelligent control system realizes high match between power system and hydraulic system to improve the working efficiency and reduce the fuel consumption.
The man-machine friendly new generation intelligent electronic control system enables you to master all working status of your machine.
Four preset working modes of P (Heavy-Load), E (Economic), A (Automatic), and B (Breaking Hammer) feature easy switchover.
The washer is installed on the left side of engine compartment to ease the checking and refilling.

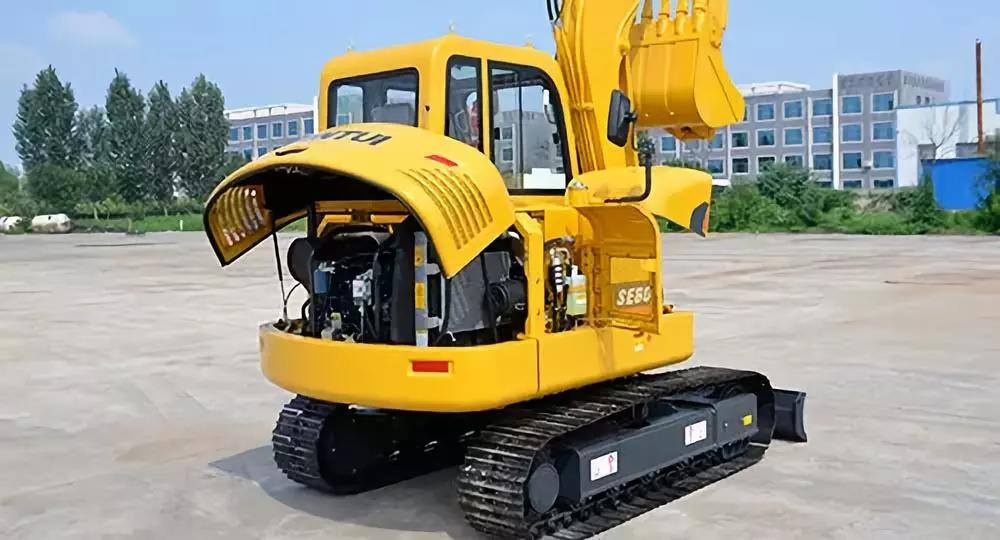

The fully openable engine hood is installed with locating mechanism to realize handy and safe opening, large engine compartment space, and easy maintenances.
The electric parts are centrally arranged on the right front tool compartment to ease the checking and maintenance.
The filling of coolant and the replacement of air filter are easily accessible.
Refueling pump
Cab warning lamp
Cab ceiling lamp
Cab overhead protective net
Cab front upper protective net
Cab front lower protective net
Rubber track
Narrow bucket
Wide bucket
Parameter
| Operating weight | 5960Kg |
| Bucket capacity | 0.22m³ |
| Engine Model | Kubota V2607T(China-III) |
| Rated power/speed | 36/2000kw/rpm |
| Maximum torque/speed | / |
| Travel speed（H/L） | 2.7/4.6km/h |
| Swing speed | 11r/min |
| Displacement | 2.615L |
| Bucket digging force | 48KN |
| Arm digging force | 29KN |
